Outdoor Swimming Pool Protective 2.0mm Stainless Steel Rope Mesh
Outdoor Swimming Pool Protective 2.0mm Stainless Steel Rope Mesh
Outdoor Swimming Pool Protective 2.0mm Stainless Steel Rope Mesh
Outdoor Swimming Pool Protective 2.0mm Stainless Steel Rope Mesh
Specifications
Brand Name :
XR
Model Number :
WRM
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 Square Meters
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 Square Meters Per Week
Delivery Time :
7-10 Days After Get The Payment
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Protective Mesh Stainless Steel Rope Mesh
Mesh Eye Size :
70x120Mm
Cable Net Diameter :
2.0Mm
Material :
SS304, SS316, SS316L
Feature :
Handwoven
Shipping :
By Air Or By Express(DHL,TNT,EMS,FedEx)
Length :
Customized
Mesh Type :
Ferrule Wire Rope Mesh
Description

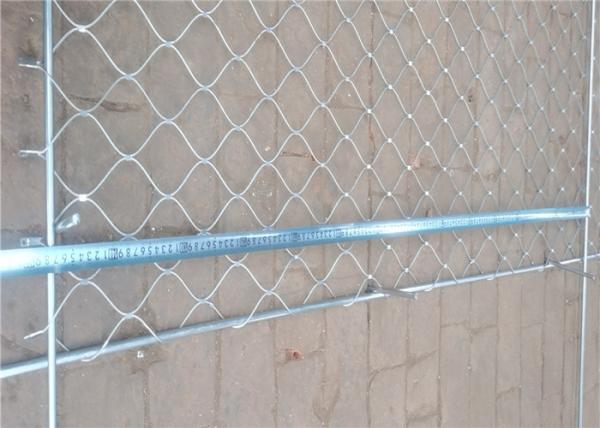

Outdoor Swimming Pool Protective Mesh Stainless Steel Rope Mesh

Product Description

Material : stainless steel 304,stainless steel 316

Wire Diameter : 1.2mm to 5.0mm(1.5mm,2.0mm, 3.0mm are popular)

Mesh Aperture : 25X25mm to 200x200mm(30x30mm,60x60mm,80x80mm are popular)

Cable structure:7x7,7x19

Mesh Type : Ferruled type,Woven type

Height : customized

Lenght : customized

Application : protective mesh

Characteristic : Flexible,high tensile strength,Anti-corrosion, Non-rusting, Long service life

Shap : triangle parallelogram trapezoid etc.(customized)

Product Material

Stainless steel 304,304L,316,306L etc.

SS304 (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316 (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

Product Specifications Sheet

Hole Size

(Opening)

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )
20 x 35mm F-1235
25 x 42mm F-1225 F-1625
30 x 52mm F-1230 F-1630 F-2030
35 x 60mm F-1235 F-1635 F-2035
38 x 66mm F-1238 F-1638 F-2038 F-2438
40 x 69mm F-1240 F-1640 F-2040 F-2440 F-3040
50 x 86mm F-1250 F-1650 F-2050 F-2450 F-3050
60 x 104mm F-1260 F-1660 F-2060 F-2460 F-3060
70 x 120mm F-1270 F-1670 F-2070 F-2470 F-3070
76 x 131mm F-1276 F-1676 F-2076 F-2476 F-3076
80 x 138mm F-1280 F-1680 F-2080 F-2480 F-3080
90 x 154mm F-1290 F-1690 F-2090 F-2490 F-3090
100 x 173mm F-12100 F-16100 F-20100 F-24100 F-30100
120 x 206mm F-12120 F-16120 F-20120 F-24120 F-30120

Product Different Types

Outdoor Swimming Pool Protective 2.0mm Stainless Steel Rope Mesh

Stainless Steel Wire Rope Mesh Cable Webnet Details

Material Stainless Steel 304 316 316L
Wire Rope Diameter 1.2mm,1.5mm,1.6mm,2.0mm,2.4mm.3.2mm,4.0mm are popular(customized)
Mesh Opeing Size 1-1/2''x1-1/2'', 2''x2'',3''x3'',4''x4'',4.75''x4.75'' are popular(customized)
Wire Rope Mesh Quality Geade A
Usage Safety mesh,architectural mesh,zoo Mesh,Animal Enclosure,decoration mesh etc.

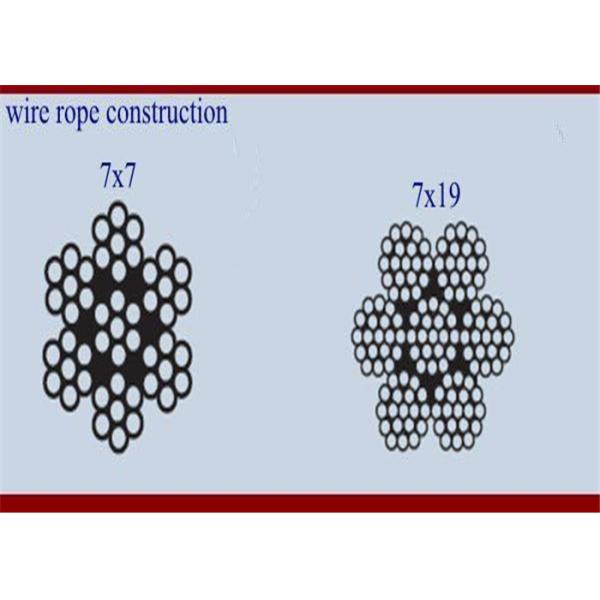

Rope Construction 7x7,7x19,1x19

Stainless Steel Wire Rope Mesh Safety Mesh Available Specifications

Stainless Steel Wire Rope Mesh Safety Protection Mesh
Rope Diameter 1.2mm 1.6mm 2.0mm 2.4mm 3.2mm
Structure 7x7 7x7 7x7 7x7 7x19
Single Wire TS(N/mm2) 1770 1770 1770 1770 1570

Stainless Steel Wire Rope Mesh is custom manufactured to in widths and lengths to suit your architectural application. Finished diamond mesh style when it is stretched at 60 degree angle ; Diagonal and irregular shapes can also be supplied. Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.

Product Characters

1

Building Facade screens,
2

Green wall systems
3

Balustrade & Railing
4

Bird protection netting,
5

Security platform fence. Isolate fence,Garden fence,
6

Animal enclosures in zoo

Product Benifits

  • Professional, friendly service
  • Pliable, high strength mesh system
  • Wide range of sizes available
  • UV and weather resistant
  • Fast turnaround
  • 316 "marine grade" stainless steel
  • Innovative, highly durable product
  • Black anodised or galvanised finish options
  • Great prices

Outdoor Swimming Pool Protective 2.0mm Stainless Steel Rope MeshOutdoor Swimming Pool Protective 2.0mm Stainless Steel Rope Mesh
