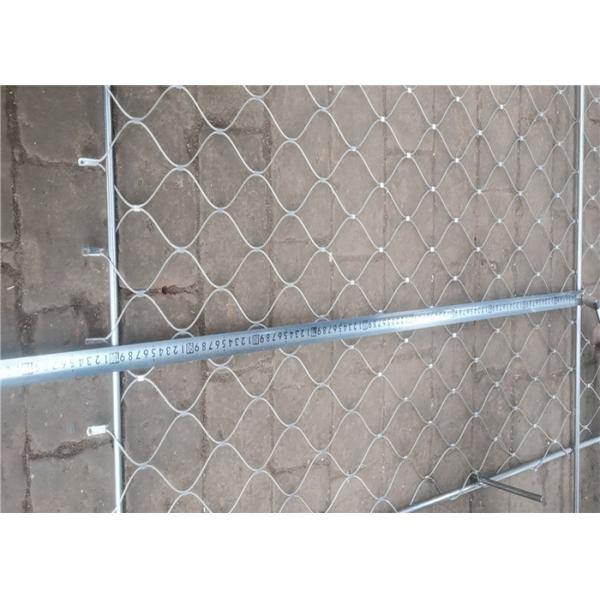

70x120 Anti Corrosive Flexible PVDF Stainless Steel Wire Rope Mesh Fence
70x120 Anti Corrosive Flexible PVDF Stainless Steel Wire Rope Mesh Fence
70x120 Anti Corrosive Flexible PVDF Stainless Steel Wire Rope Mesh Fence
70x120 Anti Corrosive Flexible PVDF Stainless Steel Wire Rope Mesh Fence
Specifications
Brand Name :
XR
Model Number :
WRM
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 Square Meters
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 Square Meters Per Week
Delivery Time :
7-10 Days After Get The Payment
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Wire Rope Mesh Fence
Feature :
Handwoven
Material :
SS304, SS316, SS316L
Mesh Eye Size :
70x120Mm
Cable Net Diameter :
2.0Mm
Mesh Type :
Ferrule Wire Rope Mesh
Length :
Customized
Shipping :
By Air Or By Express(DHL,TNT,EMS,FedEx)
Description

Anti-Corrosive Flexible Stainless Steel Wire Rope Mesh Fence

Stainless steel 304,304L,316,306L etc.

SS304 (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316 (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0

Stainless Steel Wire Rope Mesh Fence Characters

1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.

Stainless Steel Wire Rope Mesh Fence Detailed Specification

Material Stainless steel Opening Area 60.6%
Cable Diameter 2.75mm×3 Mesh Thickness 10mm
Cable Pitch 68mm Surface free oil
Rod Diameter 4.5mm Max High 100m
Rod Pitch 14.5mm Max Wide 6000mm
Weight 10.9kgs/m2 Application Interior/exterior

Material Stainless steel Opening Area 62.5%
Cable Diameter 2.75mm×2mm Mesh Thickness 9.5mm
Cable Pitch 40mm Surface free oil
Rod Diameter 4mm Max High 6000mm
Rod Pitch 14.5mm Max Wide 60000mm
Weight 9.41kgs/m2 Application Interior/exterior

Material Stainless steel Opening Area 44%
Cable Diameter 1mm×4 Mesh Thickness 3.5mm
Cable Pitch 36mm Surface free oil
Rod Diameter 2mm Max High 6000mm
Rod Pitch 4mm Max Wide 120m
Weight 6.8kgs/m2 Application Interior/exterior

Material Stainless steel Opening Area 56.9%
Cable Diameter 2.5mm×5 Mesh Thickness 7mm
Cable Pitch 80mm Surface free oil
Rod Diameter 2mm Max High 100m
Rod Pitch 6mm Max Wide 6000mm
Weight 6.58kgs/m2 Application Interior/exterior

Stainless Steel Wire Rope Mesh Fence Benifits

316 "marine grade" stainless steel

nnovative, highly durable product
Black anodised or galvanised finish options

Great prices

Professional, friendly service

Pliable, high strength mesh system

70x120 Anti Corrosive Flexible PVDF Stainless Steel Wire Rope Mesh Fence

Stainless Steel Wire Rope Mesh Fence Packing Details

70x120 Anti Corrosive Flexible PVDF Stainless Steel Wire Rope Mesh Fence
