2-1/2''O.D Post 1-5/8'' Barbed Wire Extension Arm For Chain Link Fence Rail Top Use
2-1/2''O.D Post 1-5/8'' Barbed Wire Extension Arm For Chain Link Fence Rail Top Use
2-1/2''O.D Post 1-5/8'' Barbed Wire Extension Arm For Chain Link Fence Rail Top Use
2-1/2''O.D Post 1-5/8'' Barbed Wire Extension Arm For Chain Link Fence Rail Top Use
2-1/2''O.D Post 1-5/8'' Barbed Wire Extension Arm For Chain Link Fence Rail Top Use
2-1/2''O.D Post 1-5/8'' Barbed Wire Extension Arm For Chain Link Fence Rail Top Use
2-1/2''O.D Post 1-5/8'' Barbed Wire Extension Arm For Chain Link Fence Rail Top Use
2-1/2''O.D Post 1-5/8'' Barbed Wire Extension Arm For Chain Link Fence Rail Top Use
Specifications
Brand Name :
XR
Model Number :
BWA-021
Place of Origin :
CHINA
MOQ :
1EA
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
8000 EA per week
Delivery Time :
5-8 days after get the payment
Packaging Details :
Carton box with wooden pallets
Price :
Negotiation
Arm length :
355mm, 420mm, 500mm, 600mm
Material :
Pressed-steel,galvanized or pvc
Color :
Silver or green
Post O.D :
2-1/2''
Export to :
Canada, USA, Mexico and Middle East,etc
Application :
Chain link fence top
Description

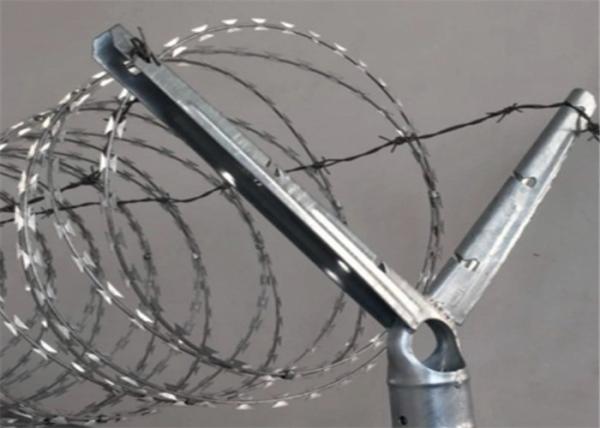

2-1/2''O.D Post 1-5/8'' Rail Top Use Barbed Wire Extension Arm For Chain Link Fence

Barbed Wire Extension Arm Description

Our company supply various fencing fittings, including barb wire arm, post cap, sleeve, tension band, brace band, wire strainer, short windiong bracket, turn buckle, rain end, T clamp, truss rod, gate corner clamp, and so on

Application: used for chain link fence and barbed wire

Characteristics: firm structure, good steel property, high rust resistance, durable

Mainly export to Canada, USA, Mexico and Middle East,etc.

Razor wire arm is one of the most popular fittings.

Material: pressed-steel,galvanized

Surface treatment: hot dipped galvanized

Zinc coating:

Electric galvanized 7-15g/m2

Hot Dipped galvanized 35-400g/m2

Wall thickness: 1.8, 1.9, 2.0, 2.5mm

Arm length: 355mm, 420mm, 500mm, 600mm

Barbed Wire Extension Arm Features:

• Easy To Install
• Accepts Three Strands Of Barbed Wire
• Notches Pre-Cut For Easy Wire Installation

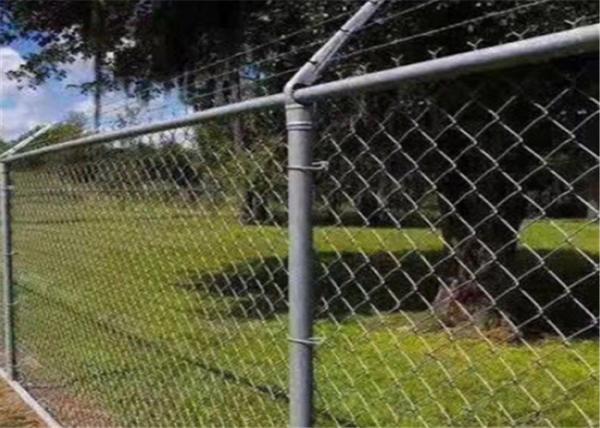

• Fits Atop Post In A Chain Link Fence System

There are two types of wire extension arm

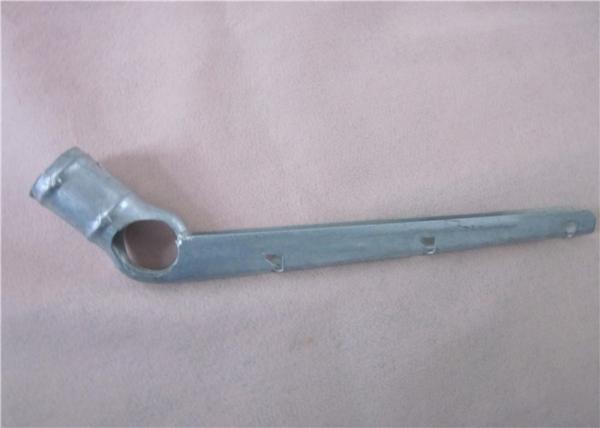

Type 1. barb wire arms 45°--one piece line arm--3 strands

Chain Link Fitting Barb Wire Arms
Position 45°
Condition New
Metal Type Steel
Post Size 2 1/2" [2 3/8" OD]
Mounting Type Corner post
Finish Galvanized
Strand Capacity 3-Strand

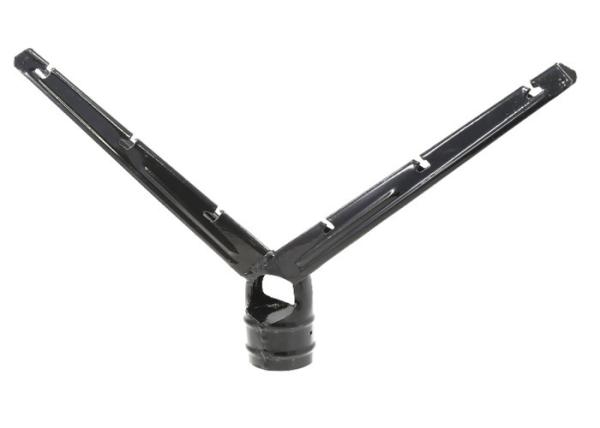

Type 2. barb wire V arm---two piece line arm--6 strands or 4 strands or 2 strands

Description Part No. Per Sack Weight
1-5/8x1-5/8 13107 25 1.65lb
1-7/8x1-5/8 13108 25 1.70lb
2-3/8x1-5/8 13109 25 1.80lb

2-1/2''O.D Post 1-5/8'' Barbed Wire Extension Arm For Chain Link Fence Rail Top Use
