Galvanized Rail End Caps For Galvanized Chain Link Fencing Fittling
Galvanized Rail End Caps For Galvanized Chain Link Fencing Fittling
Galvanized Rail End Caps For Galvanized Chain Link Fencing Fittling
Galvanized Rail End Caps For Galvanized Chain Link Fencing Fittling
Galvanized Rail End Caps For Galvanized Chain Link Fencing Fittling
Galvanized Rail End Caps For Galvanized Chain Link Fencing Fittling
Galvanized Rail End Caps For Galvanized Chain Link Fencing Fittling
Galvanized Rail End Caps For Galvanized Chain Link Fencing Fittling
Specifications
Brand Name :
XR
Model Number :
CLP-002
Certification :
ISO
Place of Origin :
CHINA
MOQ :
5EA
Price :
to be negotiation
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
60000 EA per week
Delivery Time :
10-15 days after get the payment
Packaging Details :
cartons then pallets
Model number :
rail end caps
Material :
steel or aluminum
Connection :
Flange
Application :
chain link parts
Surface treatment :
galvanized or PVC
Color :
silver or green or black,,,
Normal Spec :
1 3/8'' 1-5/8''
Advantage :
Easy install
Description

Galvanized Rail End Caps For Galvanized Chain Link Fencing

Rail end caps information

Rail end caps as one of chain link parts
--Used to attach top rail to a Bullet Top terminal post cap.
--Residential Use.
--Great for making a 3 directional or odd angle toprail connection.

There are two kinds of material for rail end caps

Aluminum and press steel.

1-3/8 inch and 1-5/8 inch are the most popular.Of course if you have other size for need,that is ok.We could customized that.

1-3/8 in. aluminum rail end is essential in finishing up your chain link fencing projects. Made from a durable aluminum construction with a sleek, polished silver finish, this rail end is used in conjunction with 1-3/8 in. top rails and brace bands to secure top rails to terminal posts.

Rail end caps characteristics

  • Made from durable aluminum to resist wear and tear
  • Sleek, polished silver finish
  • Used to connect a top rail to a terminal post
  • Fits 1-3/8 in. top rails
  • Brace bands not included

Rail End detailed specification:

Rail Ends (pressed steel-galvanized-Pvc coated)
1-3/8’’ 100EA per carton Weight 0.31kg
1-5/8’’ 100EA per carton Weight 0.33kg

Rail Ends (Die-Cast Aluminum)
1-3/8’’ 500EA per carton Weight 0.1kg
1-5/8’’ 250EA per carton Weight 0.16kg

Press Steel also have the same functions.

Galvanized Rail End Caps For Galvanized Chain Link Fencing Fittling

Sold singly - Recommended use:

  • One for each end post
  • One for each gate post
  • Two for each corner post

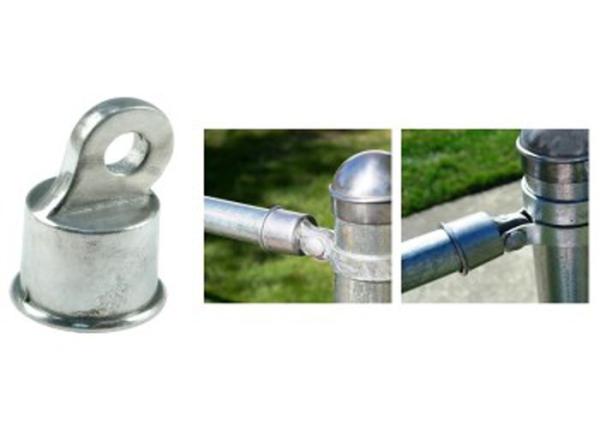

Pls see belowing galvanized rail end caps install shown:

Galvanized Rail End Caps For Galvanized Chain Link Fencing Fittling

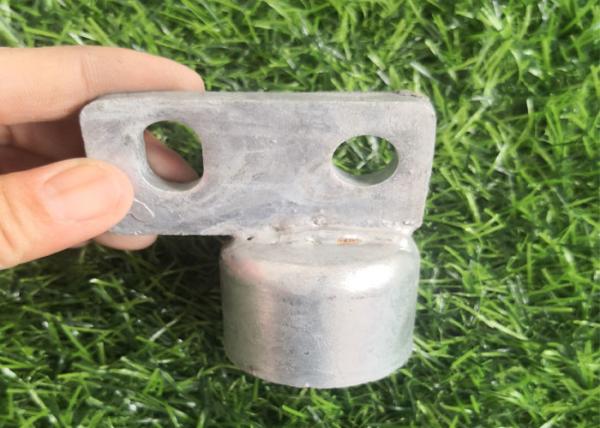

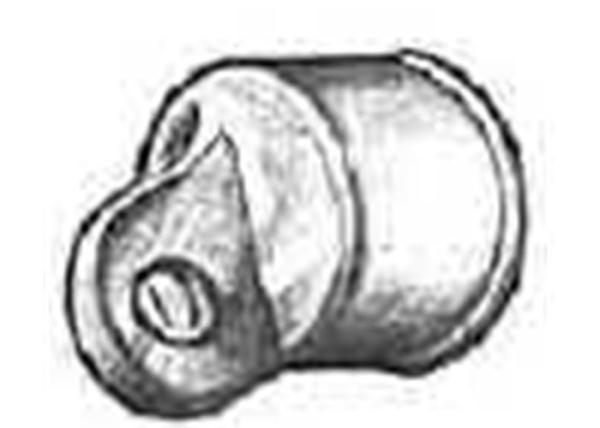

Belowing is the shown for pressed steel material rail end.

Galvanized Rail End Caps For Galvanized Chain Link Fencing Fittling

Rail End Caps Installation shown picture:

Galvanized Rail End Caps For Galvanized Chain Link Fencing Fittling

The rail end caps packing type gernerally is by cartons then pallets

Galvanized Rail End Caps For Galvanized Chain Link Fencing Fittling
