4-100mm LWD Aluminum Expanded Metal Mesh Woven Facade Cladding for Decor
4-100mm LWD Aluminum Expanded Metal Mesh Woven Facade Cladding for Decor
4-100mm LWD Aluminum Expanded Metal Mesh Woven Facade Cladding for Decor
4-100mm LWD Aluminum Expanded Metal Mesh Woven Facade Cladding for Decor
4-100mm LWD Aluminum Expanded Metal Mesh Woven Facade Cladding for Decor
4-100mm LWD Aluminum Expanded Metal Mesh Woven Facade Cladding for Decor
Specifications
Brand Name :
XR
Model Number :
EX-AL
Certification :
CE
Place of Origin :
CHINA
MOQ :
50 Sqm
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000Sqm/week
Delivery Time :
5-8 Days After Get The Payment
Packaging Details :
Wooden Pallet , Wooden Case
Color :
Silver,Blue+OEM
Application :
Curtain Wall , Facade Cladding , Ceiling Decorative
Material :
Aluminum Sheet
Technique :
Expanded
Item :
Decorative Facade Cladding Mesh
Feature :
Durable
Description

4-100mm LWD Decorative Aluminum Expanded Metal Mesh Woven Facade Cladding

Aluminum Expanded Metal mesh is formed in an expanding press. The basic metal is simultaneously slit and cold-formed, which expands the slits into diamond shaped openings of uniform size and regularity. Aluminum Expanded metal mesh is a form of metal stock made by shearing a metal plate in a press, so that the metal stretches, leaving diamond-shaped voids surrounded by interlinked bars of the metal. The most common method of manufacture is to simultaneously slit and stretch the material with one motion.

Specifications of aluminum expanded metal mesh

Thickness SWD LWD Strip Width Length Weight
0.5MM 2.5MM 4.5MM 0.5MM 0.5M 1.0M 1.8KG/M2
0.5MM 10MM 25MM 0.5MM 0.6M 2.0M 0.73KG/M2
0.6MM 10MM 25MM 1.0MM 0.6M 2.0M 1.0KG/M2
0.8MM 10MM 25MM 1.0MM 0.6M 2.0M 1.25KG/M2
1.0MM 10MM 25MM 1.1MM 0.6M 2.0M 1.77KG/M2
1.0MM 15MM 40MM 1.5MM 2.0M 4.0M 1.85KG/M2
1.2MM 10Mm 25MM 1.1MM 2.0M 4.0M 2.21KG/M2
1.2MM 15MM 40MM 1.5MM 2.0M 4.0M 2.30KG/M2
1.5MM 15MM 40MM 1.5MM 1.8M 4.0M 2.77KG/M2
1.5MM 23MM 60MM 2.6MM 2.0M 3.6M 2.77KG/M2
2.0MM 18MM 50MM 2.1MM 2.0M 4.0M 3.69KG/M2

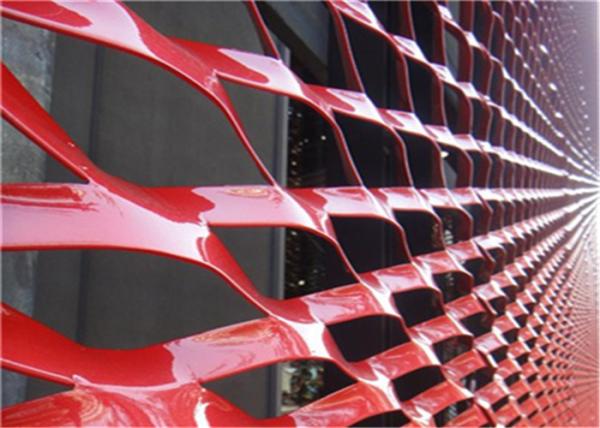

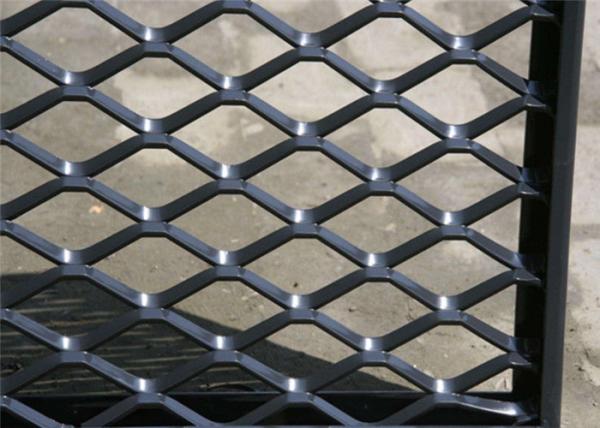

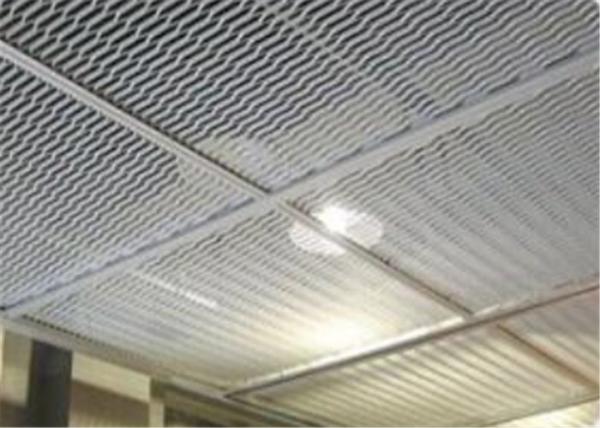

Expanded Metal Mesg Different Type Different Holes Shown

4-100mm LWD Aluminum Expanded Metal Mesh Woven Facade Cladding for Decor

Product Image

4-100mm LWD Aluminum Expanded Metal Mesh Woven Facade Cladding for Decor4-100mm LWD Aluminum Expanded Metal Mesh Woven Facade Cladding for Decor

We can manufacture according to your specific requirements.
Please indicate parameters below when you ask for a quotation
