Softly Flex Decorative Wire Mesh Fencing , PVC / Nylon Woven Rope Mesh
Softly Flex Decorative Wire Mesh Fencing , PVC / Nylon Woven Rope Mesh
Softly Flex Decorative Wire Mesh Fencing , PVC / Nylon Woven Rope Mesh
Softly Flex Decorative Wire Mesh Fencing , PVC / Nylon Woven Rope Mesh
Specifications
Brand Name :
XR
Model Number :
DM-017
Certification :
CE,SGS
Place of Origin :
CHINA
MOQ :
10 Sqm
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500Sqm/Week
Delivery Time :
5-8 days after get the payment
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Material :
Stainless Steel , PVC Wire , Nylon Wire
Mesh Type :
X-tend Type
Mesh Angle :
60 Degree
Wire Rope :
1.2 Mm To 4.0 Mm
Rope Construction :
7 X 7 , 7 X 19 , 1 X 19
Mesh Orientation :
Horizontal , Vertical
Mesh Shape :
Rhombus , Diamond
Application :
Animal Enclosure , Aviary Netting , Garden Fence , Etc
Description

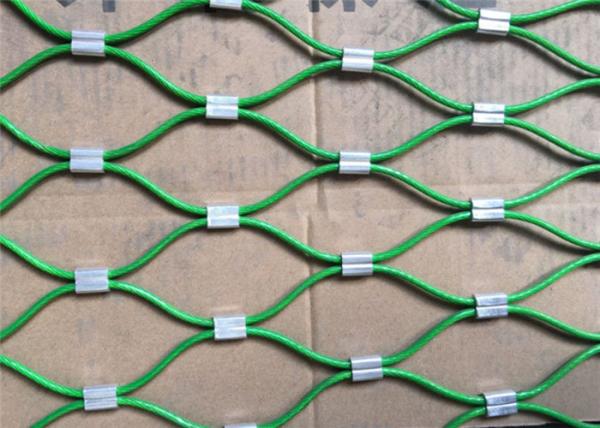

Softly Flex Decorative Wire Mesh Fencing , PVC / Nylon Woven Rope Mesh

Decorative Wire Mesh Fencing,Woven Rope Mesh
Cable Construction Cable Diameter Mesh Hole Size(W x H) Breaking Strength
inch mm inch mm KN
7x19 1/8 3.2 4.75'' x 4.75'' 120x120 7.38
7x19 1/8 3.2 4'' x 4'' 102x102 7.38
7x19 1/8 3.2 3.6'' x 3.6'' 90x90 7.38
7x19 1/8 3.2 3'' x 3'' 76x76 7.38
7x19 1/8 3.2 2'' x 2'' 51x51 7.38
7x7 3/32 2.4 4'' x 4'' 102x102 4.18
7x7 3/32 2.4 3.6'' x 3.6'' 90x90 4.18
7x7 3/32 2.4 3'' x 3'' 76x76 4.18
7x7 3/32 2.4 2.4'' x 2.4'' 60x60 4.18
7x7 3/32 2.4 2'' x 2'' 51x51 4.18
7x7 5/64 2.0 3'' x 3'' 76x76 3.17
7x7 5/64 2.0 2.4'' x 2.4'' 60x60 3.17
7x7 5/64 2.0 2'' x 2'' 51x51 3.17
7x7 5/64 2.0 1-1/2'' x 1-1/2'' 38x38 3.17
7x7 1/16 1.6 3'' x 3'' 76x76 2.17
7x7 1/16 1.6 2'' x 2'' 51x51 2.17
7x7 1/16 1.6 1-1/2'' x 1-1/2'' 38x38 2.17
7x7 1/16 1.6 1.2'' x 1.2'' 30x30 2.17
7x7 1/16 1.6 1'' x 1'' 25.4x254 2.17
7x7 3/64 1.2 1-1/2'' x 1-1/2'' 38x38 1.22
7x7 3/64 1.2 1.2'' x 1.2'' 30x30 1.22
7x7 3/64 1.2 1'' x 1'' 25.4x25.4 1.22
7x7 3/64 1.2 4/5'' x 4/5'' 20x20 1.22

The decorative stainless steel wire mesh Webnet is a vibrant and top-quality products: the mesh size (varying from too tight or too wide) and the wire rope diameter (1.0 mm, 1.5 mm, 2.0 mm and 3.0 mm) to determine its functionality and aesthetics.

Decorative Wire Mesh Fencing, Cable Rope Mesh ​Description :

Product Name ss 304 Architectural Cable Rope Mesh
Wire Diameter 2.0mm
Cable Construction 7x7 ,7x19
Width and Length Customized , we can do as your requirement
Mesh Type Ferrule Rope Mesh

Wire Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L ; Black Oxide Wire Rope Mesh is custom manufactured to suit your balustrade, railing or architecture application ; Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design ; Diagonal and irregular shapes can also be supplied.

Wire Rope Mesh by Yuntong made from stainless steel wires, and has skin-like characteristics.
It can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical.

Stainless steel mesh is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of X-TEND – the mesh can even stand up to heavy loads.

Working Processing

Softly Flex Decorative Wire Mesh Fencing , PVC / Nylon Woven Rope MeshSoftly Flex Decorative Wire Mesh Fencing , PVC / Nylon Woven Rope Mesh
