SS316 Green Wall Mesh / Ferruled Type Stainless Steel Wire Cable Mesh Netting
SS316 Green Wall Mesh / Ferruled Type Stainless Steel Wire Cable Mesh Netting
SS316 Green Wall Mesh / Ferruled Type Stainless Steel Wire Cable Mesh Netting
SS316 Green Wall Mesh / Ferruled Type Stainless Steel Wire Cable Mesh Netting
Specifications
Brand Name :
XR
Model Number :
WRM
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 Square Meters
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
500 Square Meters
Delivery Time :
10 Days After Get The Advanced Payment
Packaging Details :
Package Film For Each Piece,Several Pieces Packed In 1 Carton
Application :
Green Wall Mesh
Material :
S316
Hole Shape :
Diamond
Surface :
Smooth,bright,clean
Character :
Corrosion Resistance,beautiful,Easily Assembled
Color :
Silver
Description

SS316 Green Wall Mesh / Ferruled Type Stainless Steel Wire Cable Mesh Netting

Green Wall Cable Mesh Introduction

  • The mesh is woven by hand completely from high quality stainless steel wire cable.
  • The material is imported from South Korea and Japan, stainless steel grade include: 304, 304L, 316, 316L.
  • The structure of stainless steel wire cable is include 7×7 and 7×19.
  • Stainless steel cable diameter include: 3/64 inch, 1/16 inch, 5/64 inch, 3/32 inch, 1/8 inch.
  • The mesh opening is rhombic, standard mesh opening size include: 1"×1" , 1.5"×1.5", 2"×2", 3"×3", 4"×4" etc.

Green Wall Cable Mesh Common specification

Hole Size

(Opening)

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )
20 x 35mm F-1235
25 x 42mm F-1225 F-1625
30 x 52mm F-1230 F-1630 F-2030
35 x 60mm F-1235 F-1635 F-2035
38 x 66mm F-1238 F-1638 F-2038 F-2438
40 x 69mm F-1240 F-1640 F-2040 F-2440 F-3040
50 x 86mm F-1250 F-1650 F-2050 F-2450 F-3050
60 x 104mm F-1260 F-1660 F-2060 F-2460 F-3060
70 x 120mm F-1270 F-1670 F-2070 F-2470 F-3070
76 x 131mm F-1276 F-1676 F-2076 F-2476 F-3076
80 x 138mm F-1280 F-1680 F-2080 F-2480 F-3080
90 x 154mm F-1290 F-1690 F-2090 F-2490 F-3090
100 x 173mm F-12100 F-16100 F-20100 F-24100 F-30100
120 x 206mm F-12120 F-16120 F-20120 F-24120 F-30120

Green Wall Cable Mesh Material : Stainless steel 304,304L,316,306L etc.

SS304 (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316 (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

Green Wall Cable Mesh Feature

1. High strength,strong toughness,free-angles curving and fold,easy for transportation and installment.

2. Anti-rust,Anti-corrosive,resist the rust,can be repeated use.

3. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)

4. This product can bear the heavy snow and the gale very much.

5. Without toxic material,afety,environmental protection.

6. Fast delivery time ans ship

7. save cost

Green Wall Cable Mesh Net Characteristics


Custom-Manufactured
Discrete, elegant and flexible.
Multifunctional,and compatible with creative architecture.
Premium Quality, Rugged , Weather-Resistant , Non-Corroding and Corrosion-resistant,Alkali Resistant

Green Wall Cable Mesh Net Application

1. animal enclosure

2. drop safety

3. mesh for playground,amusement park

4. stair railing,railing balustrade

5. safety net

6. safety on bridge,suspension bridge

7. protect use fence

8. building decorative etc.

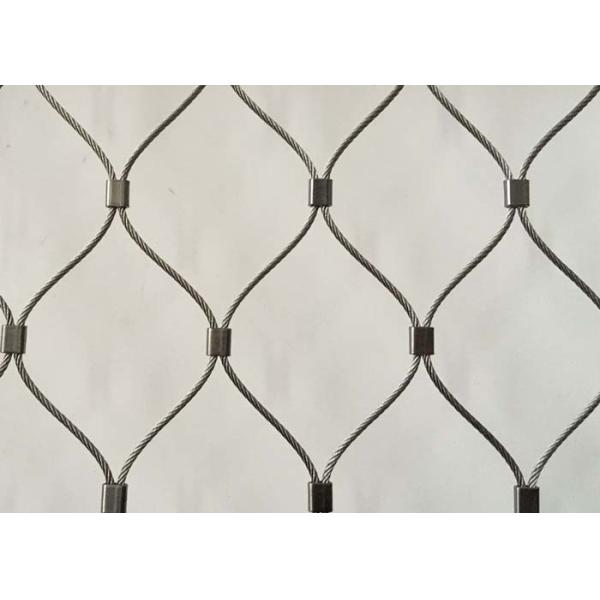

Green Wall Cable Mesh Net Shown

SS316 Green Wall Mesh / Ferruled Type Stainless Steel Wire Cable Mesh NettingSS316 Green Wall Mesh / Ferruled Type Stainless Steel Wire Cable Mesh Netting
