AS2321 SHORT LINK CHAIN GRADE L
AS2321 SHORT LINK CHAIN GRADE L
Specifications
Nominal Size (D) mm :
26.0
Pitch (L) mm :
78.0
External Width (Max. B) mm :
96.2
Internal Width (Min. b) mm :
33.8
Working Load Limit tonnes :
6.83
Manufacturing Proof Force kN :
134.0
Min. Breaking Force kN :
335.0
Description
AS2321 SHORT LINK CHAIN GRADE L

G80 Short Link Chain

Our G80 short link chain is engineered for demanding lifting and rigging applications. Manufactured from high-quality low carbon steel and finished with hot dip galvanization, this chain offers exceptional durability and corrosion resistance. It conforms to the latest revision of Australian Standard 2321.

Key Benefits:

  • High Strength: Manufactured from low carbon steel for superior strength.
  • Durability: Hot dip galvanized finish provides excellent corrosion resistance.
  • Compliance: Conforms to the latest revision of Australian Standard 2321.
  • Traceability: Embossed with “L” and traceability code for quality assurance.
  • Safety: Calibrated and Proof tested with a design factor of 4:1.

Target Industries: Suitable for windlass applications, lifting, rigging, marine, and construction industries.

Product Attributes

FOB Unit: Piece
FOB Price: 0

Technical Specifications

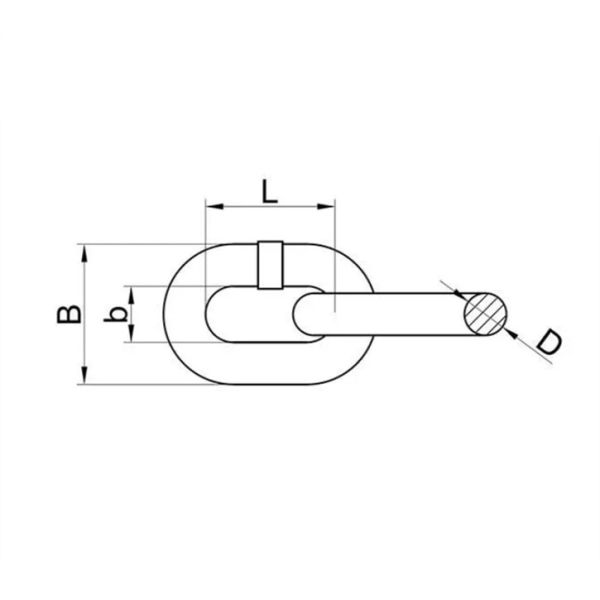

Nominal Size (D) mm Pitch (L) mm External Width (Max. B) mm Internal Width (Min. b) mm Working Load Limit tonnes Manufacturing Proof Force kN Min. Breaking Force kN
6.0 18.0 22.2 7.8 0.36 7.1 17.8
7.0 21.0 25.9 9.1 0.49 9.7 24.2
8.0 24.0 29.6 10.4 0.65 12.7 31.7
10.0 30.0 37.0 13.0 1.00 19.8 49.5
13.0 39.0 48.1 16.9 1.70 33.5 83.7
16.0 48.0 59.2 20.8 2.58 50.7 127.0
18.0 54.0 66.6 23.4 3.28 64.2 161.0
19.0 57.0 70.3 24.7 3.67 71.9 180.0
20.0 60.0 74.0 26.0 4.03 79.2 198.0
22.0 66.0 81.4 28.6 4.89 95.8 240.0
26.0 78.0 96.2 33.8 6.83 134.0 335.0
