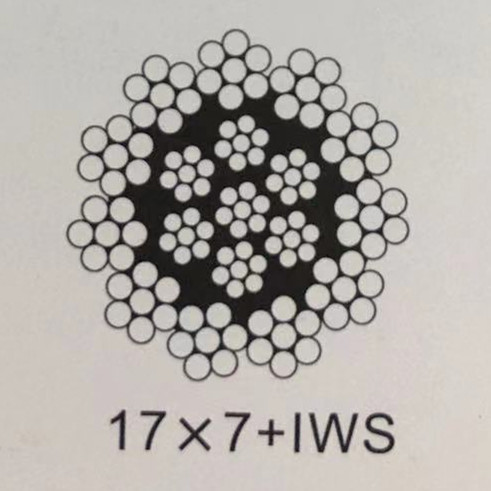

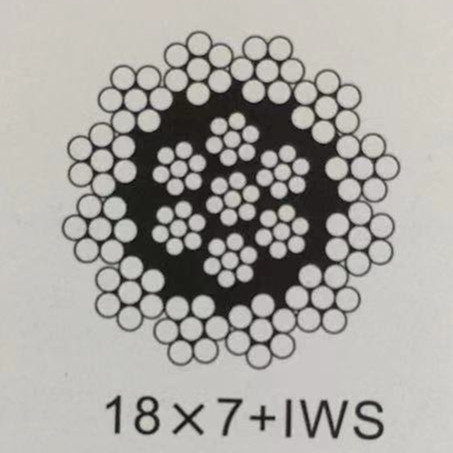

18X7+IWS 17X7+IWS General Purpose Rope
18X7+IWS 17X7+IWS General Purpose Rope
18X7+IWS 17X7+IWS General Purpose Rope
18X7+IWS 17X7+IWS General Purpose Rope
Specifications
Diameter mm :
32
GB/T 20118-2006/GB 8918-2006 1670N/mm2 FC/IWS :
561.00
GB/T 20118-2006/GB 8918-2006 1770N/mm2 FC/IWS :
594.00
GB/T 20118-2006/GB 8918-2006 Approx. Weight (Kg/100m) :
440.00
EN 12385-4 1770N/mm2 FC/IWS :
—
EN 12385-4 1960N/mm2 FC/IWS :
—
EN 12385-4 Approx. Weight (Kg/100m) FC :
—
EN 12385-4 Approx. Weight (Kg/100m) IWS :
—
Description

High-Performance Steel Wire Rope

Engineered for demanding applications, our steel wire ropes are manufactured to meet stringent international standards, ensuring reliability and longevity. Compliant with GB/T 20118-2006/GB 8918-2006 and EN 12385-4.

Key Benefits:

  • High tensile strength for heavy-duty lifting
  • Exceptional durability in harsh environments
  • Compliance with GB/T and EN standards
  • Available in various diameters and constructions

Target Industries & Applications:

Suitable for construction, mining, oil and gas, and general engineering applications.

Technical Specifications

Diameter (mm) GB/T 1670N/mm2 FC/IWS GB/T 1770N/mm2 FC/IWS GB/T Approx. Weight (Kg/100m) EN 1770N/mm2 FC/IWS EN 1960N/mm2 FC/IWS EN Approx. Weight (Kg/100m) FC EN Approx. Weight (Kg/100m) IWS
6 19.70 20.90 15.50 20.90 23.10 13.80 14.40
7 26.80 28.40 21.10 28.40 31.50 18.70 19.60
8 35.10 37.20 27.50 37.20 41.10 24.40 25.70
9 44.40 47.00 34.80 47.00 52.10 30.90 32.50
10 54.80 58.10 43.00 58.10 64.30 38.20 40.10
11 66.30 70.20 52.00 70.20 77.80 46.20 48.50
12 78.90 83.60 61.90 83.60 92.60 55.00 57.70
13 92.50 98.10 72.70 98.10 109.00 64.60 67.80
14 107.00 114.00 84.30 114.00 126.00 74.90 78.60
16 140.00 149.00 110.00 149.00 165.00 97.80 103.00
18 177.00 188.00 139.00 188.00 208.00 124.00 130.00
20 219.00 232.00 172.00 232.00 257.00 153.00 160.00
22 265.00 281.00 208.00 281.00 311.00 185.00 194.00
24 316.00 334.00 248.00 334.00 370.00 220.00 231.00
26 370.00 392.00 291.00 392.00 435.00 258.00 271.00
28 429.00 455.00 337.00 455.00 504.00 299.00 314.00
32 561.00 594.00 440.00 — — — —
