NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing
NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing
NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing
NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing
NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing
NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing
NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing
NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing
NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing
NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing

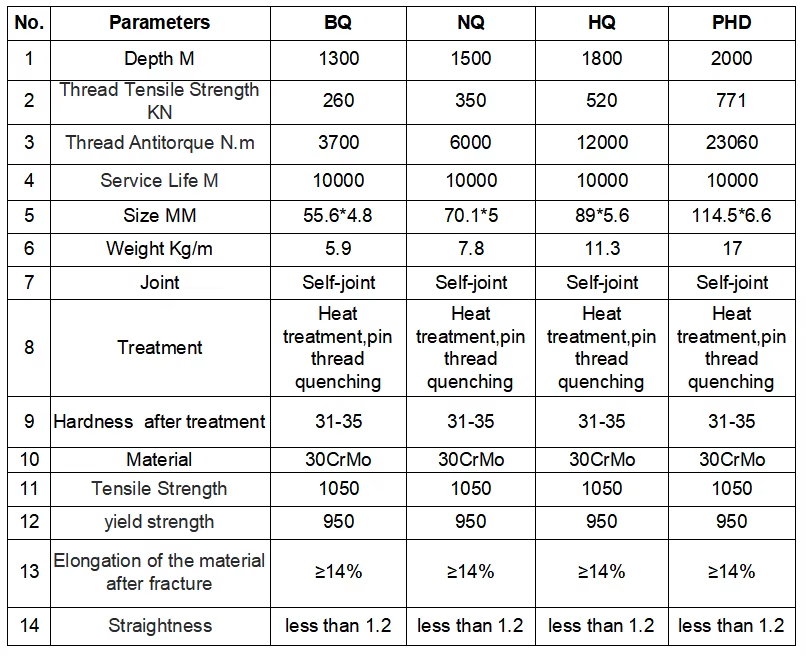

Specifications
Place of Origin :
Made in Wuxi, China
Brand Name :
cge
Certification :
ISO9001:2015/ce/msds
MOQ :
N/A
Price :
Negotiation
Packaging Details :
Steel Belt Iron Frame Export Wooden Case
Delivery Time :
10-15 working days after payment
Payment Terms :
T/T or L/C
Supply Ability :
10,000pcs per month
Model Number :
NWL
Name :
Wireline Drill Rod
Material :
Alloy steel: 30CrMnSi ZT850
Designed Depth :
2000m
O.D :
69.9mm
I.D :
60.3mm
Usage :
Mineral Exporation ( Diamond coring)
Process :
Both end case hardening
Description
Geological Wireline Drill Rods For Mining Exploration BQ NQ HQ 5ft 10ft 1.5m 3m

Our company’s Wire line drill rods are manufactured from the best quality heat-treated seamless steel tubes (30CrMnSiA or ZT850).

Ultimate tensile strength, yield strength, high precision and good straightness provide the best performance under different drilling conditions.

1. Material: 30CrMnSiA or ZT850

2. Heat treatment: high-frequency hardening to guarantee perfect match between strength and toughness.
3. Thread harden: Surface hardness reach31-35HRC;
4. Quality controlled: All the processes during manufacturing.
5. Delivery Time: Large stock, ready to ship.
TUBING
• High quality allow steel tubing.
• 100% inspection ensures consistent concentricity, straightness and heat treatment.
THREAD
• Larger, deeper threads (2.5 threads per inch) provide maximum durability.
• Load efficiency of 40% provides sufficient strength for large hole sizes

NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing

NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing

NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreingNQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing

NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing

NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing

NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing

Quality control

1. We have been strictly controlled the quality of our raw materials, and all of our steel metals are from famous stee

factories. And physical metallographic analysis and chemical composition test are also used to ensure the quality of raw materials.

2. Immediate inspection will be done for each production procedure, and full examination will be implemented for threaded products.

3. Our outsourcing products will also be strictly examined before utilization.

4. Our sampling rate for final products is higher than 30%.

NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing

Company Profile

- Established since 1958, More than 60 years experience on core drilling tools manufacturing.
-Building area 53208 M2. Land area 80815M2.
- Around 200 employees.
- More than 4000 tons of raw material turnover in order to make sure delivery on time.
- Export over 20 countries.
- Market share reaches 70% in domestic drilling industry.
- Raw material of steel from famous steel factory.

NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing

We have Friction welding production line,Thread casing hardening process production line .

Joint production line,Drill pipe production line, Automatic thickening production line,Bit sintering line,

Turn-milling line.Shot blasting and flaw detection production line.Mechanical arm production line.

NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing

why choose us

Products are used in many national major projects

NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing

Warehouse

NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing

PACKAGE

NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing

Certification

.Passed the certification of ISO 9001:2000 quality system.
.Passed OHSAS18000 Occupational Health and Safety Management System Certification .
.We have more than 70 items independent intellectual property patents,Our new generation
wire line drill rod has broken the depth record of domestic diamond drilling.

NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing

EXHIBITION

NQ HQ PHD BQ Wireline Drill Rod 3m for rock coreing
