1x2 Single Mode Wavelength Division Multiplexing 980/1550nm 1480/1550nm
1x2 Single Mode Wavelength Division Multiplexing 980/1550nm 1480/1550nm
Specifications
Brand Name :
CFOFC
Model Number :
CFOFC-WDM
Certification :
ISO9001/ REACH / ROHS
Place of Origin :
Shenzhen, China
MOQ :
10Pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal, Western Union
Supply Ability :
3,000,000 pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Individual Pack , plus outer cartons
Product name :
Wavelength Division Multiplexing
Application :
CATV/FTTH
core :
1*2
Fiber :
singlemode
Package :
Steel Tube,ASB Box
Length :
1 2 3 4 5 10m
Description

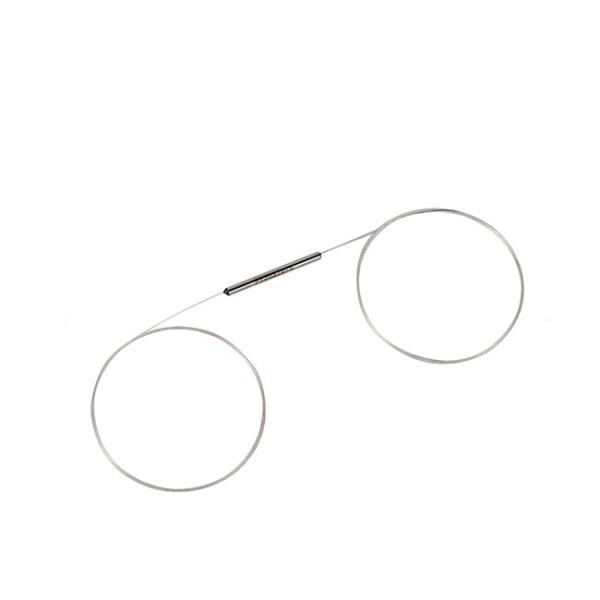

980/1550nm 1480/1550nm 1x2 Single Mode Fused WDM Coupler Splitter For EDFA

Description of WDM Coupler Splitter

980/1550nm and 1480/1550nm WDM are widely used in EDFA, Which can combine the pump power and optical signal into the Er-fiber.

Specification of WDM Coupler Splitter

Parameter WDM-1310/1550 WDM-980/1550 WDM-1480/1550
Operating Wavelength(nm) 1310 & 1550 980 & 1550 1480 & 1550
Bandwidth(nm) ±15 ±15 ±5
Grade P A P A P A
Max Insertion loss(dB) ≤0.25 ≤0.3 ≤0.25 ≤0.30 0.3 0.35
Peak Isolation(dB) ≥24 ≥22 ≥23 ≥22 ≥22 ≥20
Min Isolation(dB) ≥17 ≥16 ≥20 ≥18 ≥15 ≥15
PDL (dB) ≤0.05 ≤0.10 ≤0.05 ≤0.10 ≤0.1 ≤0.15
≤0.1
Temperature stability(dB) ≤0.002
Return loss(dB) ≥55
Directivity(dB) ≥55
Operation temperature -40 to +85
Store temperature -40 to +85

Features of WDM Coupler Splitter

Low insertion loss

Low PDL

High channel isolation

Excellent environmental reliability

Application of WDM Coupler Splitter

Long-HauIUni and Bi-Directional

Telecommunications System

Digital, Hybrid and Am-video Systems

High-Speed Multi-Wavelength Systems

CATV Links & Fiber Sensors

1x2 Single Mode Wavelength Division Multiplexing 980/1550nm 1480/1550nm1x2 Single Mode Wavelength Division Multiplexing 980/1550nm 1480/1550nm1x2 Single Mode Wavelength Division Multiplexing 980/1550nm 1480/1550nm1x2 Single Mode Wavelength Division Multiplexing 980/1550nm 1480/1550nm
The reason why Choose us

1. On time delivery
2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Quality guarantee
FAQ

1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.

2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
3. How much will the shipping cost be?
It depends on the weight, volume and mode of transportation of your goods. We will choose the most suitable method according to your requirements.

4. Can you supply OEM products under our brand?
Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
