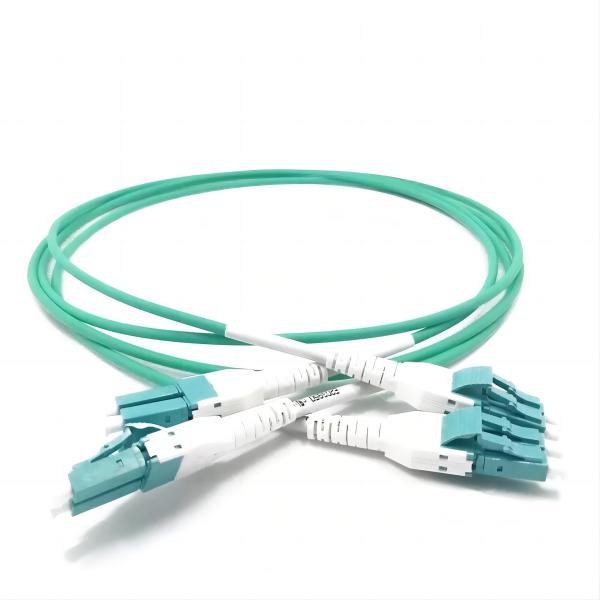

Duplex 3.0mm 2.0mm PVC LSZH LC PC Multimode OM3 Polarity Switchable Uniboot
Duplex 3.0mm 2.0mm PVC LSZH LC PC Multimode OM3 Polarity Switchable Uniboot
Duplex 3.0mm 2.0mm PVC LSZH LC PC Multimode OM3 Polarity Switchable Uniboot
Duplex 3.0mm 2.0mm PVC LSZH LC PC Multimode OM3 Polarity Switchable Uniboot
Duplex 3.0mm 2.0mm PVC LSZH LC PC Multimode OM3 Polarity Switchable Uniboot
Duplex 3.0mm 2.0mm PVC LSZH LC PC Multimode OM3 Polarity Switchable Uniboot
Specifications
Brand Name :
CFOFC
Model Number :
CFOFC-PC-lC/lC-OM3
Certification :
ROHS ISO 9001
Place of Origin :
Shenzhen，China
MOQ :
100 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/day
Delivery Time :
5-8 work days
Packaging Details :
standard packing or reel packing
Product name :
Fiber Optic Patch Cord
Fiber type :
OM3
Connector type :
LC
Material :
OM3
Fiber count :
2
Diameter :
2.0 MM
Description
Multimode OM3 Duplex Polarity Switchable Uniboot LC-LC Fiber Optic Patch Cord
Description Of Fiber Patch Cord
Push Pull Tab LC Reverse polarity patch cable allows one cable to carry both fibers, reducing cable congestion when routing, and is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles. Reverse-polarity design allows for quick and easy polarity conversion without exposing the fibers or needing any tools.
Specification Of Fiber Patch Cord
Connector LC to LC Uniboot Polarity Reversible Jacket OD 3.0mm
Fiber Mode OS2 9/125um Jacket Color Yellow/Aqua / Violet / Purple
Polish UPC to UPC Wavelength 1310/1550nm or 850/1300nm
Fiber Type Duplex Jacket Material LSZH / PVC / OFNP
Insertion loss ≤0.3dB Attenuation at 850nm 3.0 dB/km
Return loss ≥30dB Attenuation at 1300nm 1.0 dB/km
Operating temperature -40~75°C Storage temperature -45~85°C
Polarity A(Tx) to B(Rx) Minimum Bend Radius 30 mm

Item

Parameter

Single-mode

Multi-mode

Insertion Loss

≤0.75dB

Return Loss

≥50 dB (SM PC),≥35 dB (MM PC)

Repeatability

≤0.1dB

Durability

0.2dB Max. 1000 mattings

Operating Temperature

-40℃~+85℃

Storage Temperature

-40℃~+85℃

Features Of Fiber Patch Cord
  • optional push/pull tab
  • Flexible plenum rated jacket
  • Bend insensitive fiber on all Multimode fibers, optional for Single Mode fibers
  • Available in OM3, OM4 and OS2
  • Custom lengths, jacket colors and labeling optionsUniboot (one boot) design
  • Easily switch polarity without tools or damage to fiber
Application Of Fiber Patch Cord
  • Data center ultra high-density cabling
  • Fiber optic communication networks
  • Optical access network
  • Telecommunication networks
Duplex 3.0mm 2.0mm PVC LSZH LC PC Multimode OM3 Polarity Switchable Uniboot

The reason why Choose us:

1. Our shipping time is strictly controlled

2. We can provide customized service, according to the order requirements, can be equipped with a salesman and an engineer

3. Our company has rich export experience and is familiar with the customs policies of various countries

4. Large product inventory with massive production line

5. China's professional gas detection leader

6. Product distribution involves multi-fields, dozens of countries including some developed countries.

FAQ

1. Are you factory direct?

as a professional fiber patch cord manufacturer, specialized in Fiber Optic Patch Cord,MPO, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

2. What is your main products?

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS

Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord

3. Product quality guarantee period?

20 years Guarantee for fiber optic cable

4. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
