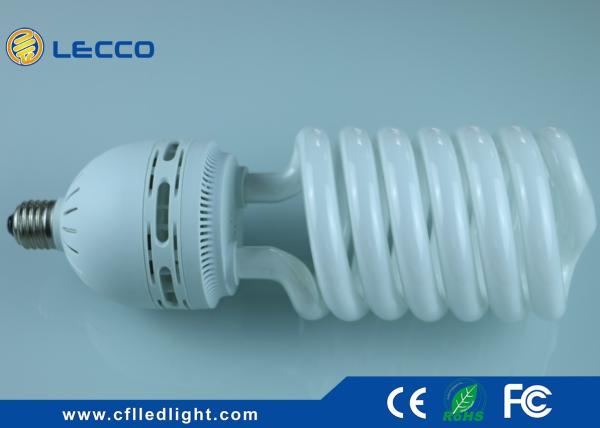

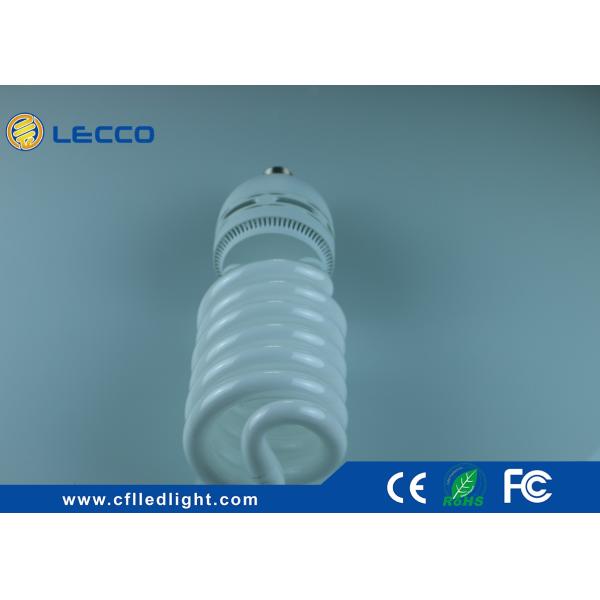

Half Spiral 125W Fluerescent CRI > 80 Factory Using Energy Saving Lamp
Quick Details
| Model No. : LCF-HS125W-T5 | Certificate : CE RoHS FCC |
| Item Type : Half Spiral | Power : 125W |
| Place of origin : Lin'an | Input Voltage : 220V / 127V |
| Brand name : LECCO | Lumen :5750LM |
| Warranty: 1 year | Working Temp. : - 30℃ - 40℃ |
| For Workshop , Warehouse , ETC | |
Features
1 . Power : 125W
2 . P.F. : > 0.9
3 . Power consumption: < 10%
4 . Lead free glass tube
5 . Compact type , integrate the ballast in the lamp
6 . 100% triphosphor A - grade powder
1 ) Luminous efficency: > 65 lm / w
2 ) Brightness maintance: > 80% after 2000H
3 ) CRI : > 80 Ra
4 ) SDCM : < 5
Lamp parameters
| Type | Half Spiral |
| Tube Diameter | Φ 17mm |
| Wideth | 100mm |
| Length | / |
| Circle | 6.5T |
| Color Rendering Index | > 80 Ra |
| SDCM | < 5 |
| Color Temparature | 2700K - 6400K |
| Luminous Efficency | > 65lm / w |
| 2000h Luminous Depreciation | <15% |
| Responsive Time | < 0.5s |
| Turn on off time | > 10 000 times |
| Luminous Decay | Less than 15% at 2000hrs |
| Powder | 100% A - gradeTriphosphor |
| Power | 125W |
| Power Factor | > 0.9 |
| Type | Soldering |
| Wideth | 88mm |
| Materials | PBT |
| PBT plastic cover with middle cover | |
| | |
| | |
| | |
Description
1 . Guarantee is for 2 years .
2 . The average lifetime of our lamp is at least 6000h .
3 . Living up to the IEC60968 & 60969 standard .
4 . Saving 80% electricity compared to traditional incandescent bulbs .
5 . Can start under the condition of - 30 ℃ and low voltage .
6 . No flicker , No noise , No electromagnetic interference ( EMI ) .
7 . Passing the EMC test .
8 . Using nickleplated aluminum base , very good to avoid getting rusted .
9 . For the pack , we have color box , single blister , double blister .
10. The key components is the electrolytic capacitor and transister , we are choosing GRP or AISHI for our electrolytic capacitor and choosing HUAJING as our transister .
11 . Voltage : Both 110 - 130V and 220 - 240V available with 50 / 60Hz ; Wide range voltage is possible .
Application
Widely used in home & commercial Lighting , always using together with the downlight fixtures , applying in office , Hallway , Hotel , room , shop , ect .
Trade terms
1 . Payment term : T/T , 30% deposits in advance , 70% balance before shipment .
2 . Samples can be provided for free , but the express fee need to be payed for the first time , and can be returned after placing the first order .
3 . Shipping freight are quoted under your requests .
4 . Shipping port : Shanghai / Ningbo .
5 . If not mentioned , all of our price is FOB price , and also can be CFR or CIF
