Ultrasonic Oxygen Sensor UOS-100 – O₂ & Flow Measurement
Ultrasonic Oxygen Sensor UOS-100 – O₂ & Flow Measurement
Ultrasonic Oxygen Sensor UOS-100 – O₂ & Flow Measurement
Ultrasonic Oxygen Sensor UOS-100 – O₂ & Flow Measurement
Ultrasonic Oxygen Sensor UOS-100 – O₂ & Flow Measurement
Ultrasonic Oxygen Sensor UOS-100 – O₂ & Flow Measurement
Specifications
Brand Name :
ONETEST
Model Number :
UOS-100
Place of Origin :
Shenzhen
MOQ :
1 pieces
Payment Terms :
T/T
Supply Ability :
300 pieces+One month
Delivery Time :
5-10 Working day
Packaging Details :
Carton
range :
21%-95.6%VOL
Concentration resolution :
0.1%
accuracy :
±1.5%FS @（5 - 55）℃
Flow detection range :
0-10L/min
Description

1. Introduction of the ultrasonic oxygen sensor:
The UOS-100 ultrasonic oxygen concentration sensor uses an ultrasonic detection technology to measure the gas flow rate and oxygen concentration in the binary gas. With digital output, widely used in oxygen detector and oxygen generator, oxygen chamber, ventilator and other oxygen equipment.

Ultrasonic Oxygen Sensor UOS-100 – O₂ & Flow Measurement

2. product features
1, using the principle of ultrasonic measurement, the gas concentration and oxygen flow can be measured simultaneously
2, small volume, fast response, stable measurement, high accuracy
3. Calibration before leaving the factory, without user calibration
4. Long life span (more than 5 years)
5, meet the requirements of CE and EMC certification, and meet the special requirements of medical occasions


3.Technical indicators

Oxygen concentration detection range

21%-95.6%VOL

Concentration resolution

0.1%

Concentration detection accuracy

±1.5%FS @(5 - 55)℃

Flow detection range

0-10L/min

Flow resolution

0.1L/min

Traffic detection accuracy

± 0.2 L/min or read 5% (if larger)

Sample gas requirements

Water removal (no condensation)

Dust filtration (<1 u m)

Detection cycle

0.5S

preheating time

Power-on can be measured, the 10S to achieve the basic accuracy

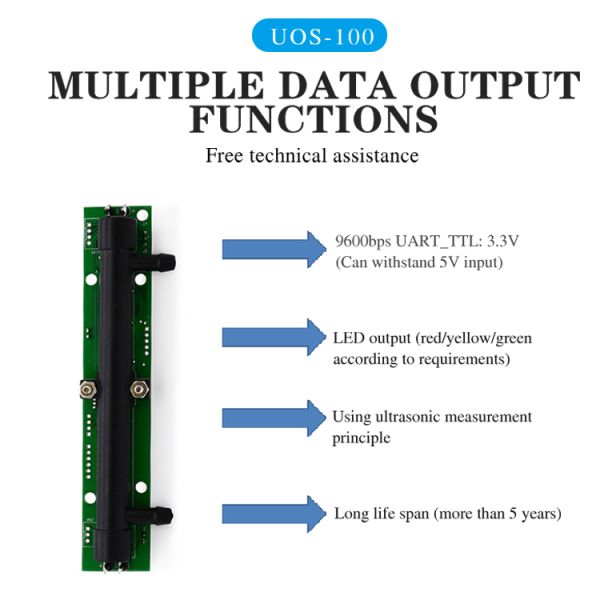

numeric output

9600 bps UART _ TTL: 3.3V (withstand 5V input)

analog output

0~2.5V (Custom required)

LED output

(Can be set up according to the requirements.)

Green: oxygen concentration> 82%

Yellow: 82%> Oxygen concentration> 50%

Red: 50%> oxygen concentration

In and out of the air direction

The band arrow indicates the direction

working temperature

5~55℃

storage temperature

-5~65℃

relative humidity

5～85%RH

maximum pressure

150 kPa

working power supply

DC 6.5-12V,50mA
