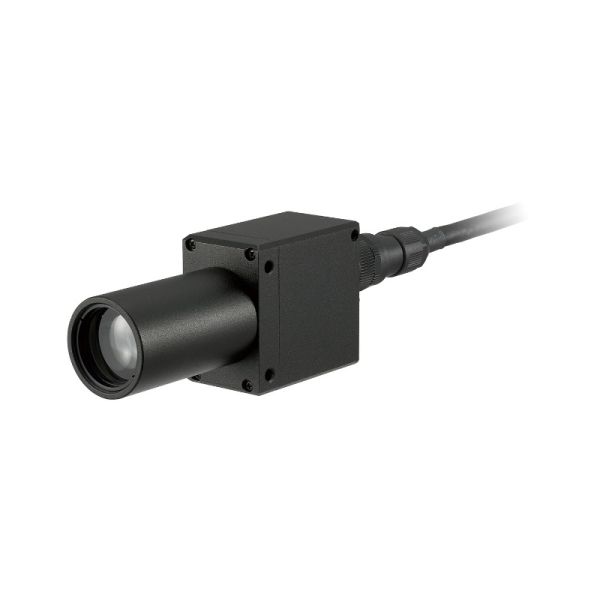

Japanese imported metal radiation thermometer - high-speed response of 0.001 seconds

The TMHX-TME0050 (H) series metal radiation thermometer can measure the low temperature of low-temperature metals and other materials, with a high-speed response of 0.001 seconds. In addition, measurement can be carried out through a quartz window. Measurement can be carried out without using paint or tape.

Features of TMHX-TME0050 (H) Series Metal Radiation Thermometer:

Materials such as metals with low emissivity can be measured from low temperatures with a low-speed response of 0.001s.

In addition, measurement can be carried out through a quartz window. Measurement can now be carried out without using paint or tape.

There is also a lampshade (sold separately) to ensure stable temperature measurement at temperatures below 100°C. The installation environment will be further expanded by using various accessories. Easy to align measurement parts, in any installation environment, with a wide variety of displays and setup devices, reducing costs and extending service life.

Technical indicators:

Model: TMHX-CVE1300-0200H4.5-000 (CE Certified)
Measurement temperature range: 200 ～1,300℃
Measurement wavelength: 3.9μm
Measurement distance: 200mm
The size of the object under test: Ø 4.5mm
Connection line length: 2M
Alignment device: LED alignment
Accuracy: ±3℃ below 300℃; The measurement value is ±1% at 300~1200℃ and ±2% above 1200℃.
The time required to warm up the machine: 3 minutes
Reaction time: 0.01 to 5 seconds (0 to 95% analog output)
Radiation rate correction: Ensure range 0.3 to 1.0; Set the range from 0.050 to 1.000
Output mode: Analog output: 0~1V, mV/℃, 4~20mA, 0~20mA is switched by the setter
RS-232C output: According to RS-232C, it is non-insulated, with an output amplitude of approximately ±4V
Operating ambient temperature: 0 to 50℃
Temperature display: None
Power supply voltage: DC4.7-27V, 0.1Amax
Construction: Dust-proof (approximately equivalent to IP67), except for the e-CON connection terminal part
Note: The standard specification of this product does not include the factory test report. If you have any requirements, please specify them at the time of ordering.
