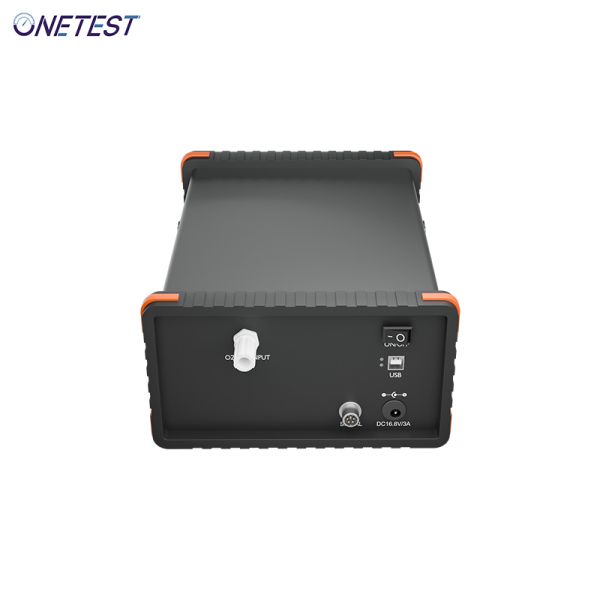

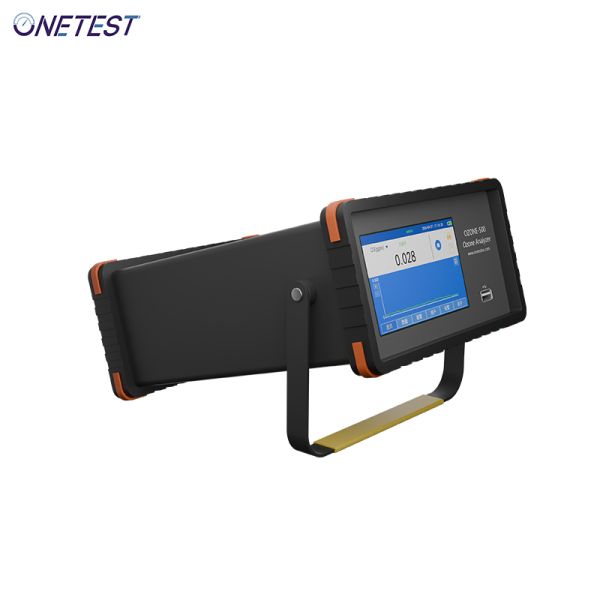

OZONE-500L Ozone Concentration Analyzer | Dual-Beam 254nm UV Absorption
OZONE-500L Ozone Concentration Analyzer | Dual-Beam 254nm UV Absorption
OZONE-500L Ozone Concentration Analyzer | Dual-Beam 254nm UV Absorption
OZONE-500L Ozone Concentration Analyzer | Dual-Beam 254nm UV Absorption
OZONE-500L Ozone Concentration Analyzer | Dual-Beam 254nm UV Absorption
OZONE-500L Ozone Concentration Analyzer | Dual-Beam 254nm UV Absorption
OZONE-500L Ozone Concentration Analyzer | Dual-Beam 254nm UV Absorption
OZONE-500L Ozone Concentration Analyzer | Dual-Beam 254nm UV Absorption
Specifications
Model Number :
ONETEST-500L
Brand Name :
ONETEST
Payment Terms :
T/T
Accuracy :
±2% (FS)
Supply Ability :
100 pieces+One month
Place of Origin :
Shenzhen
Delivery Time :
5-10 Working day
Range :
0-200 g/m³, 0-300 g/m³ (Customizable)
Measurement Time :
2s
MOQ :
1
Resolution :
0.001 g/m³
Description

The OZONE-500L ozone concentration analyzer is based on the principle of dual-beam 254nm ultraviolet light absorption, designed in accordance with Beer-Lambert's law. The instrument complies with the standards of HJ590-2010, GB/T37397-2019, and GB/T37894-2019. It uses imported ultraviolet electronic light sources, with a resolution of 0.001g/m3. It features pressure and temperature compensation, automatic fault detection, and an automatic zero-point correction function, etc., to avoid measurement deviations during long-term operation. The integrated aluminum alloy body design is sturdy and durable.

OZONE-500L Ozone Concentration Analyzer | Dual-Beam 254nm UV AbsorptionProduct features:
Dual-beam ultraviolet absorption method;
Portable, high precision;
Data can be exported via USB, in PDF, CSV, and TXT formats;
Automatic zero calibration;
Fast startup in 60 seconds;
Standard lithium battery, capable of continuous operation for 8 hours;
Long-life light source, capable of continuous operation for 24 hours;
RS485, 4-20mA and other signal outputs.


Technical indicators

Technical Specification Details
Measurement Range 0-200 g/m³, 0-300 g/m³ (Customizable)
Accuracy ±2% (FS)
Resolution 0.001 g/m³
Measurement Time 2s
Output Signal 0-10V, 4-20mA, RS485 (Modbus RTU)
Data Storage Capacity 1,000,000 sets
Warm-up Time 60s
Gas Inlet Interface 6mm push-in connector, Pressure < 0.1 MPa
Operating Environment Temp: 0-50℃, Humidity: 0-65% RH
Detection Flow Rate 0.1-1 L/min (Atmospheric pressure)
Display 5-inch Touchscreen
Light Source Lifespan 15,000h
Power Supply DC 16.8V / 3A
Dimensions (L×W×H) 320 × 220 × 120 mm
Weight 3 kg
