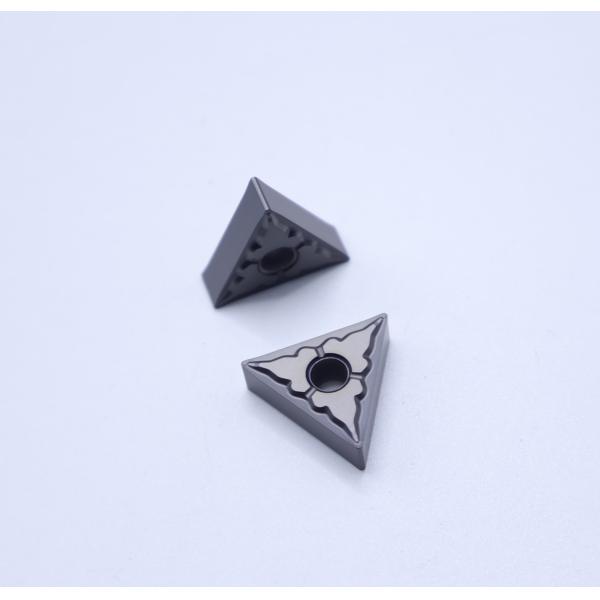

External Turning CNC Lathe Machine Inserts with HRA92.5 Hardness and PVD Coating
External Turning CNC Lathe Machine Inserts with HRA92.5 Hardness and PVD Coating
External Turning CNC Lathe Machine Inserts with HRA92.5 Hardness and PVD Coating
External Turning CNC Lathe Machine Inserts with HRA92.5 Hardness and PVD Coating
Specifications
Brand Name :
Metcera
Model Number :
TNMG160404-MS1
Certification :
ISO9001
Place of Origin :
China
MOQ :
10pcs
Price :
US$1.35 per piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10000pcs per Month
Delivery Time :
5-8 Working Days
Packaging Details :
10pcs in a plastic box
Coating :
PVD Coating
Usage :
External Turning
Hardness :
HRA92.5
Material :
TiCN Cermet
Color :
Grey-black
Product name :
TNMG160404-MS1
Grade :
PV2210
Workpiece :
Carbon Steel,Alloy Steel
Transport :
FedEX ,TNT,UPS,DHL
Description
External Turning CNC Lathe Machine Inserts HRA92.5 Hardness TNMG160404-MS1 PV2210
Product Overview
External Turning CNC Lathe Machine Inserts with HRA92.5 Hardness and PVD Coating

High-performance cermet inserts designed for external turning operations on CNC lathe machines, featuring exceptional hardness and durability.

Metcera Grade Specifications
Grade Color Coating Hardness (HV) Antioxidant Temp. (°C) Frictional Coefficient Coating Thickness (µm) Recommendation
PV1120 Golden 3500 900 0.3 2-2.5 Steel, Alloy HRC<50 Tempered Steel
PV2110 - - - - - -
PV3115 - - - - - -
PV1220 Grey-black 3500 900 0.3 2-2.5 Steel Machining
PV2210 - - - - - -
PV3212 - - - - - -
PV1320 Bronze 4200 1000 0.3 2-2.5 Stainless Steel, Steel HRC<50 Tempered Steel
PV2310 - - - - - -
PV3315 - - - - - -
Grade Density Base Material Hardness HV30 HRA Bending Strength (MPa)
MC1020 6.5 1650 93.0 1800
MC2010 6.8 1550 92.4 2300
MC3015 6.95 1520 92.0 2500
Material Technology

Ti(CN) based cermet is a new and prospective material which not only possesses the qualities of toughness, high thermal conductivity and good heat stability of metals, but also possesses the qualities of high hardness, high red hardness and corrosion resistance of ceramics. The unique physical and chemical properties of cermet make it promising in the manufacturing of special cutting tools, wear parts and corrosion-resistance parts.

Why Choose Our Products
  • 30 years focus on Cermet cutting tools only
  • Product performance equals the world-class brands
  • Our grade is equivalent to TN60, NX2525, CT3000, T1200A, CN2000, NS530, etc
  • ODM service is provided
  • 3 months warranty for exchange and return
  • Free sample is provided
Frequently Asked Questions
Are you a trading company or manufacturer?
We are manufacturer.
Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free.
What kind of payment terms do you accept?
T/T, West Union, Paypal, Credit Card and other main terms.
Do you provide customized product service?
Yes.
What kind of machines are you using?
Osterwalder presser, Agathon Grinder, Nachi manipulator, etc.
When is the lead time?
Normally 10 days after receiving your payment, but it can be negotiated based on order quantity and production schedule.
How can you guarantee the production quality?
Our company is based on ISO9001, we have more than 30 years experience of QC team and strictly quality control system. However, 90 days of free change is provided.
What about the package?
10pcs plastic box in 50pcs case, then in 500/1000 pcs cartons. Or custom packing as your requirements.
