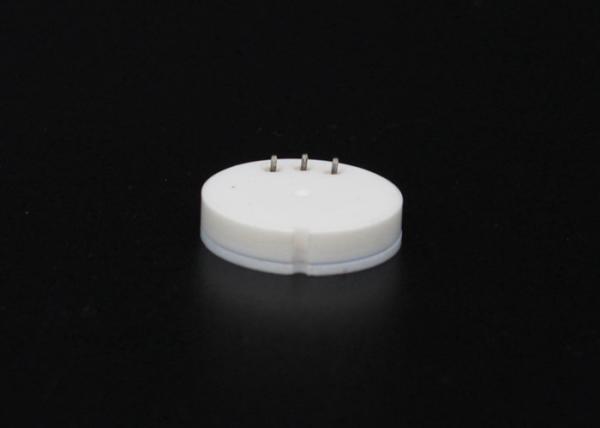

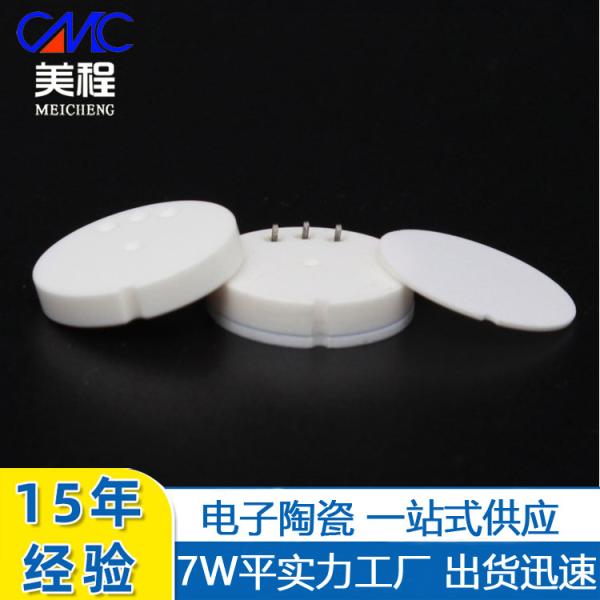

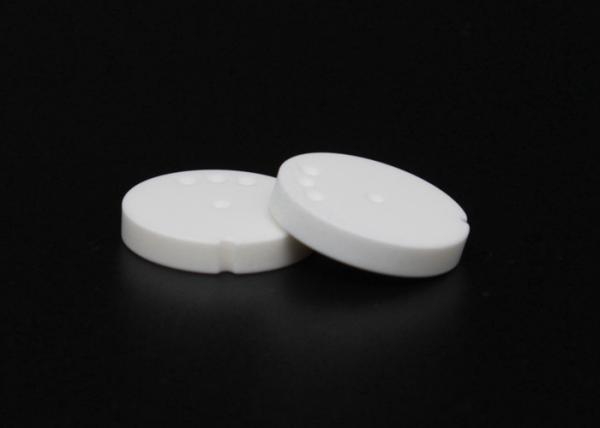

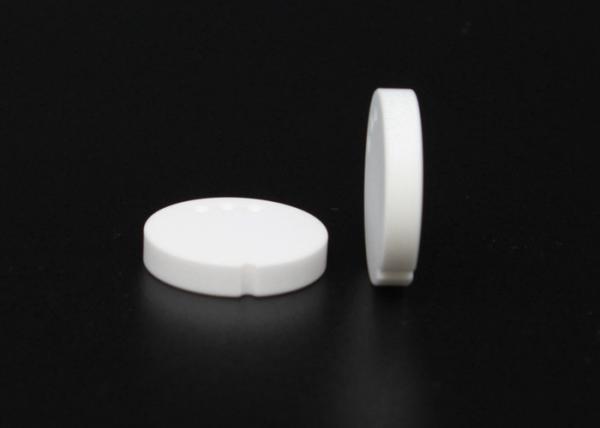

Abrasion Resistance T2mm Pressure Sensor Ceramic
Abrasion Resistance T2mm Pressure Sensor Ceramic
Abrasion Resistance T2mm Pressure Sensor Ceramic
Abrasion Resistance T2mm Pressure Sensor Ceramic
Abrasion Resistance T2mm Pressure Sensor Ceramic
Abrasion Resistance T2mm Pressure Sensor Ceramic
Abrasion Resistance T2mm Pressure Sensor Ceramic
Abrasion Resistance T2mm Pressure Sensor Ceramic
Abrasion Resistance T2mm Pressure Sensor Ceramic
Abrasion Resistance T2mm Pressure Sensor Ceramic
Specifications
Brand Name :
CMC
Model Number :
PS101
Certification :
ISO9001, ISO14001, ISO45001, RoHS
Place of Origin :
China
MOQ :
3000 Pieces
Price :
USD 0.2~0.6/piece
Payment Terms :
D/P, T/T, Western Union, D/A, MoneyGram
Supply Ability :
100,000 pieces per month
Delivery Time :
20 work days
Packaging Details :
package is adopted foam,plastic bag and carton
Material :
Alumina
Color :
White
Thickness :
2mm
Description

Precision Ceramic Component for Pressure Sensor and Pressure transmitter, 95% Alumina Porcelain Plate for Pressure gauge

1. Description:

The pressure sensor ceramic parts are made of 96% aluminum oxide. With the thick film printing and thermal sintering technology, the ceramic diaphragm is sintered together with the ceramic substrate.

2. Key Words:

Ceramic pressure sensor, Pressure tranmitter, Sensor system, Fuel pressure system, Gas pressure system,96% aluminum oxide,thick film printing,thermal sintering technology, sintered together with the ceramic substrate,High elasticity modulus, high compressive strength,Anti corrosion, abrasion resistance, impact resistance.High precision, high stability, wide range of measurement, components of air conditioning system, automobile pressure sensing system, engine system, robotics and intelligent terminal.

3. Parameters list:

Product Parameters
Physical Property Material 95% Alumina
Production Process Dry Pressing
Product Dimension Per customers' drawing
Density (g/cm3) 3.70-3.75g/cm3
Water Absorption 0%
Mechanical Performance Flexural Strength (Mpa) 310Mpa
Modulus of Elasticity (Gpa) 310Gpa
Hardness (Gpa) 12.9Gpa
Poisson Ratio 0.23
Thermal Character Linear Thermal Expansion Coefficient 7.2
Heat Conductivity (W/mk) 23
Electrical Property Dielectric Constant 9.2
Dielectric Loss Tangent (x10-4) 8
Insulation Strength (x106V/M) 15


Abrasion Resistance T2mm Pressure Sensor Ceramic

Abrasion Resistance T2mm Pressure Sensor Ceramic

Abrasion Resistance T2mm Pressure Sensor Ceramic

Abrasion Resistance T2mm Pressure Sensor Ceramic

Abrasion Resistance T2mm Pressure Sensor Ceramic
