12.9Gpa Hardness HVDC Relay Ceramic Components
12.9Gpa Hardness HVDC Relay Ceramic Components
Specifications
Brand Name :
CMC
Model Number :
NE118
Certification :
IATF16949, ISO9001, ISO14001
Place of Origin :
China
MOQ :
2000 pieces
Price :
USD 1.68~3.58/piece
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
60,000 pieces per month
Delivery Time :
20 days
Packaging Details :
package method is adopted plastic film,paper plate and carton
Material :
95 perceny aluminum oxide
Color :
White
Application :
HVDC Relay
Density :
3.7g/cm3
Description

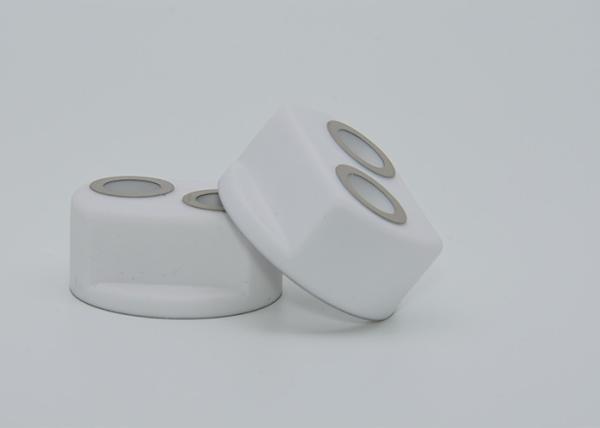

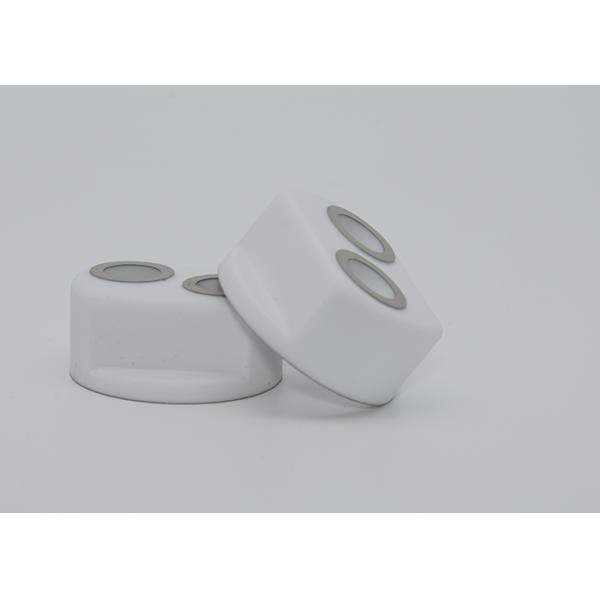

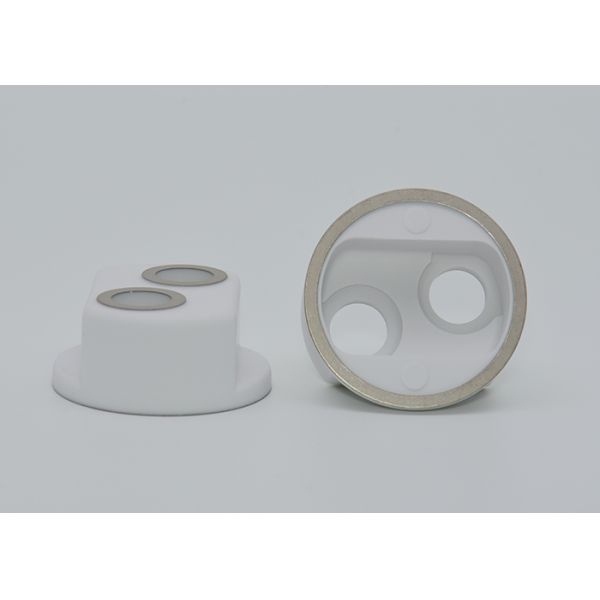

Metallization HVDC relay ceramic component

1. Description:

This ceramic component is made of 95 percent aluminum oxide, and is used in HVDC relay as one assembly.

2. Key Words:

Mould factory, making mould according customer's drawing,manufacture samples , open mould ,aluminum oxide,thick-film nickel plating technology,copper and alloys,great limberness,Good corrosion resistance,High intensity,Good high-temperature resistance performance,High purity.

3. Parameters List:

Product Parameters
Physical Property Material 95% Alumina
Production Process Dry Pressing
Product Dimension Per customers' drawing
Density (g/cm3) 3.70-3.75g/cm3
Water Absorption 0%
Mechanical Performance Flexural Strength (Mpa) 310Mpa
Modulus of Elasticity (Gpa) 310Gpa
Hardness (Gpa) 12.9Gpa
Poisson Ratio 0.23
Thermal Character Linear Thermal Expansion Coefficient 7.2
Heat Conductivity (W/mk) 23
Electrical Property Dielectric Constant 9.2
Dielectric Loss Tangent (x10-4) 8
Insulation Strength (x106V/M) 15
Metalized Ceramic Performance Air Tightness (Pa·m3/s) ≤10-8
Bulk Resistivity (Ω·cm) ≥1010 (20°C), ≥106 (300°C)
Bonding Strength (Mpa) ≥120Mpa
Metallization Thickness (μm) ≥20μm

12.9Gpa Hardness HVDC Relay Ceramic Components

12.9Gpa Hardness HVDC Relay Ceramic Components
