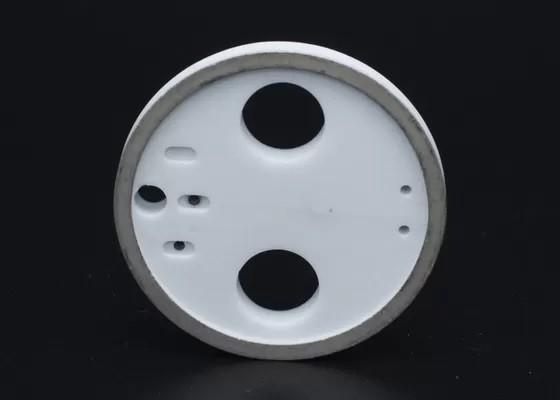

95% Alumina Ceramic Sealed Assembly For HVDC Relay
95% Alumina Ceramic Sealed Assembly For HVDC Relay
Specifications
Brand Name :
CMC
Model Number :
NE128
Certification :
IATF16949, ISO9001, ISO14001
Place of Origin :
China
MOQ :
2000 pieces
Price :
USD 8.5~15.5/pcs
Payment Terms :
T/T, Western Union, D/P, D/A, MoneyGram, MoneyGram
Supply Ability :
60,000 pieces per month
Delivery Time :
15 days
Packaging Details :
packing methods is using Plastic film，paper plate and carton
Material :
95% Alumina
Color :
White, Pink
Application :
Electronic Components
Density :
3.7g/cm3
Description

CMC 95% Alumina Ceramic Sealed Assembly

1. Description:

Alumina Ceramic Sealed Assembly is produced with high-purity toughened alumina ceramics and thick-film nickel plating technology. It has high strength and high welding and sealing performance. It is suitable for brazing different materials such as copper and alloys.it is made of material: 95% alumina and made by dry-processing.

2. Key Words:

HVDC Relay /contactor, manufacture samples , open mould ,aluminum oxide,thick-film nickel plating technology,copper and alloys,great limberness,Good corrosion resistance,High intensity,Good high-temperature resistance performance,High purity.

3. Technical Parameters:

Product Parameters
Physical Property Material 95% Alumina
Production Process Dry Pressing
Product Dimension Per customers' drawing
Density (g/cm3) 3.70-3.75g/cm3
Water Absorption 0%
Mechanical Performance Flexural Strength (Mpa) 310Mpa
Modulus of Elasticity (Gpa) 310Gpa
Hardness (Gpa) 12.9Gpa
Poisson Ratio 0.23
Thermal Character Linear Thermal Expansion Coefficient 7.2
Heat Conductivity (W/mk) 23
Electrical Property Dielectric Constant 9.2
Dielectric Loss Tangent (x10-4) 8
Insulation Strength (x106V/M) 15
Metalized Ceramic Performance Air Tightness (Pa·m3/s) ≤10-8
Bulk Resistivity (Ω·cm) ≥1010 (20°C), ≥106 (300°C)
Bonding Strength (Mpa) ≥120Mpa
Metallization Thickness (μm) ≥20μm


95% Alumina Ceramic Sealed Assembly For HVDC Relay
