Customized Size Silicon Carbide Sliding Bearing With 1650℃ Max Temperature And Corrosion Resistance For Pumps
Customized Size Silicon Carbide Sliding Bearing With 1650℃ Max Temperature And Corrosion Resistance For Pumps
Customized Size Silicon Carbide Sliding Bearing With 1650℃ Max Temperature And Corrosion Resistance For Pumps
Customized Size Silicon Carbide Sliding Bearing With 1650℃ Max Temperature And Corrosion Resistance For Pumps
Customized Size Silicon Carbide Sliding Bearing With 1650℃ Max Temperature And Corrosion Resistance For Pumps
Customized Size Silicon Carbide Sliding Bearing With 1650℃ Max Temperature And Corrosion Resistance For Pumps
Specifications
Brand Name :
CSQ
Model Number :
customized products
Certification :
FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Place of Origin :
China
MOQ :
20-50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
2000pcs per month
Delivery Time :
20-45 work days
Packaging Details :
Foam+carton box
Name :
Customized Ceramic Sliding Sleeve Bearing
Category :
Ceramic Sliding Bearing
Material :
Pressureless Sintered Silicon Carbide/Zirconia
Size :
Customized,according To The Drawings
Application :
pumps
package :
foam+caoton box
Quality :
High Precision, Long Life, OEM Serive
Specification :
Standard Size And Customized
Description

Industrial Ceramic Sliding Bearing for Harsh Environments

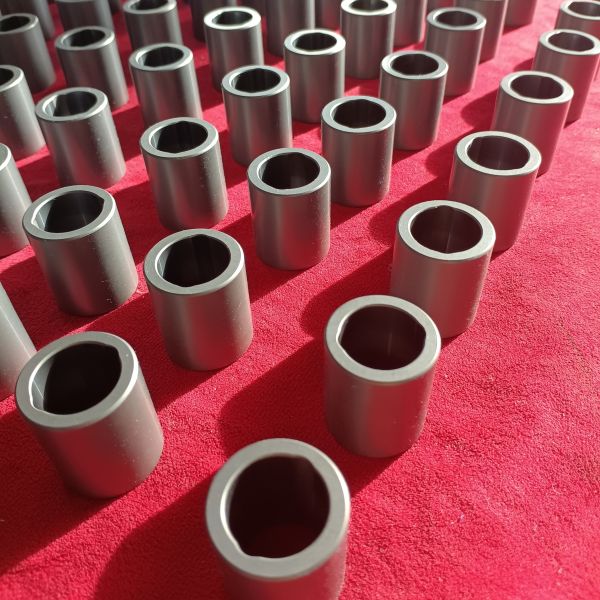

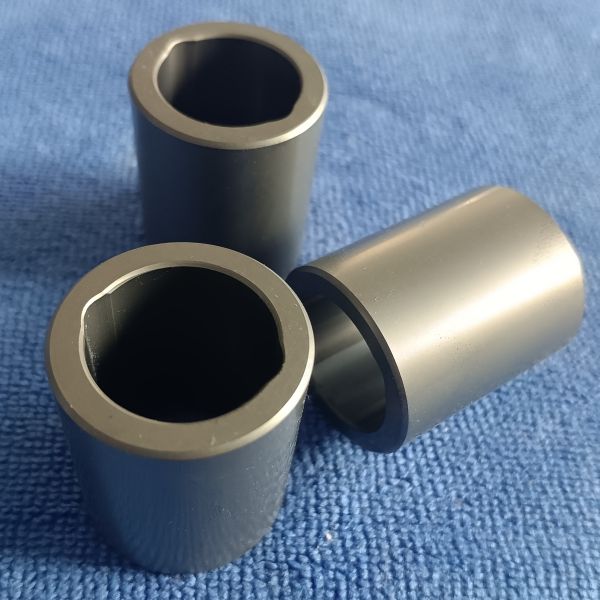

Customized Silicon Carbide Sliding Bearing Sleeve designed specifically for pump applications. Ceramic sliding bearings represent advanced bearing technology used across industrial, automotive, and aerospace sectors. Constructed from premium ceramic materials including silicon nitride, silicon carbide, and zirconia, these bearings deliver superior performance compared to traditional steel bearings.

Customized Size Silicon Carbide Sliding Bearing With 1650℃ Max Temperature And Corrosion Resistance For Pumps


Key Advantages


1.Corrosion Resistance: Highly resistant to harsh chemicals and environments, making them ideal for chemical processing and marine applications


2.Reduced Friction: Smoother, harder surfaces minimize friction and wear, significantly extending component lifespan


3.High Temperature Tolerance: Maintains structural integrity in extreme heat conditions up to 1650℃ Applications Widely utilized in aviation, aerospace, navigation, petroleum, chemical processing, automotive, electronics, metallurgy, power generation, textiles, pumps, medical equipment, and defense applications.

Customized Size Silicon Carbide Sliding Bearing With 1650℃ Max Temperature And Corrosion Resistance For Pumps


Ceramic vs Steel Bearing Advantages


  • Superior high temperature performance with stable mechanical properties
  • Better performance during temperature fluctuations due to lower thermal expansion
  • Improved anti-bite and anti-stuck performance characteristics
  • Can operate without lubrication thanks to self-lubricating properties
  • Resistant to acid, alkali and salt corrosion
  • Electrical insulation and no static electricity generation
  • Non-magnetic properties prevent abrasive particle adhesion

Material Properties


Property Value
Density 3.15-3.18g/cm³
Thermal Expansion 4.0 (10-6/℃)
Thermal Conductivity 120 W/m°K
Hardness 2800 HV5
Elastic Modulus 2800 HV5
Elastic Modulus 410GPa
Chemical Stability Superior resistance to acid/alkali corrosion (including hydrofluoric acid)

Silion Carbide Ceramic Material Basis Capability List
项目 Items 单位 Unit SSiC
密度d Density g/cm 3.10-3.
硬度Hv Hardness Hv1 Kg/mm2 >2550
弹性模量E Young’s Modulus GPa 410
抗弯强度RT Bending Strength MPa 400-49
抗压强度 Compressive Strength MPa >2500
断裂韧性KIC Fracture Toughness MPam -/2 4-5
泊松比 Posisson’ s Ration
0.16
热膨胀系a Coefficient of Lnear Expansion 10-6/k 4.0
品粒度 Crystal Size μm <5
气孔率

<3%
烧结方式:常压烧结 S-Sic Pressureless Sintering

Why Choose Us

Professional Team
With our company logos ZXSQ and CSQ, we possess eleven invention patents for utility models. Our high-quality professional team provides customized bearing products according to customer requirements.
Since 1982, we have accumulated over 40 years of experience in ceramic bearing research, development, and production, becoming a leading enterprise in China's ceramic bearing market.

Strength Factory
We operate a fully automatic grinding and assembling production line with an annual output of 3 million sets of P5 and P4 precision level bearings. Our equipment includes a hot isostatic sintering furnace (HIP) imported from ABB Sweden, capable of reaching temperatures over 2000℃.
Master Raw Material Production Technology
We cooperate with raw material suppliers and maintain production technology to ensure product quality stability unaffected by international price fluctuations.

Customized Size Silicon Carbide Sliding Bearing With 1650℃ Max Temperature And Corrosion Resistance For Pumps Customized Size Silicon Carbide Sliding Bearing With 1650℃ Max Temperature And Corrosion Resistance For Pumps

Frequently Asked Questions

Who are we?
We are a factory in Beijing, China with over 40 years of experience producing ceramic bearings, having established cooperative relations with many domestic and foreign companies.

How can we guarantee quality?
We produce samples before mass production, inspect products with precision equipment, and use double packaging (foam and carton) to ensure product quality.

What can you buy from us?
Ceramic deep groove ball bearings, ceramic angular contact ball bearings, hybrid ceramic ball bearings, ceramic linear bearings, and various ceramic balls.

Why should you buy from us not from other suppliers?
We are an industry and trade integrated company with three factories, modern production and inspection equipment, offering better delivery dates and product quality.

What service can we provide?
We provide high quality products, customized services, and samples for customer confirmation.

Welcome Your Enquiry
We supply high quality bearings. For purchasing or price inquiries, please contact us. As a professional bearing company integrating R&D, production, sales, and service, we carefully manufacture each set of bearings using high quality raw materials.

We adhere to customer demand as our guidance, striving to provide quality products and after-sales service, creating value for customers as their partner. Welcome to discuss cooperation!
