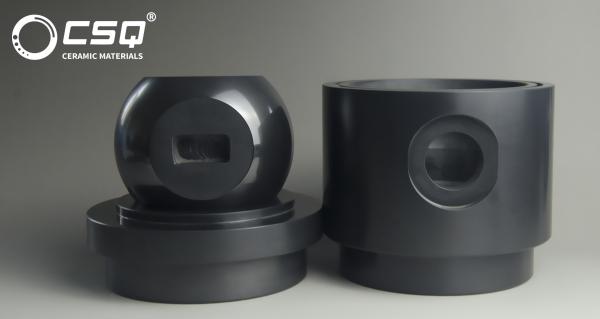

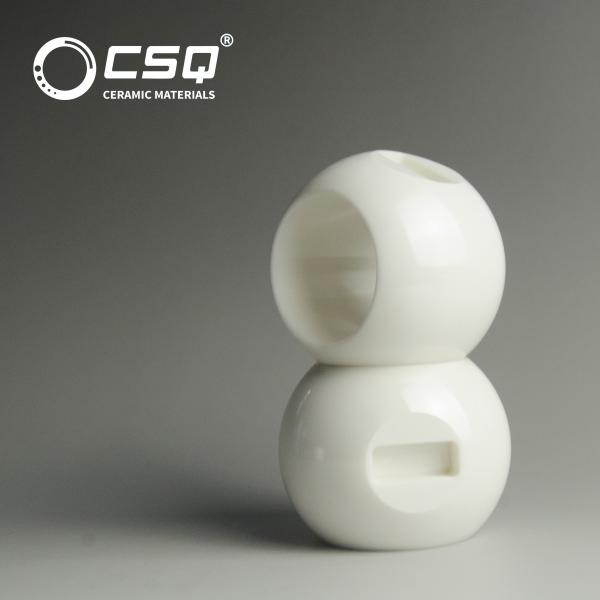

Silicon Carbide Zirconium Ceramic Ball Valve Zirconia CSQ
Silicon Carbide Zirconium Ceramic Ball Valve Zirconia CSQ
Silicon Carbide Zirconium Ceramic Ball Valve Zirconia CSQ
Silicon Carbide Zirconium Ceramic Ball Valve Zirconia CSQ
Specifications
Brand Name :
CSQ
Place of Origin :
China
Payment Terms :
T/T
Delivery Time :
45-60 work days
MOQ :
10 pcs/one size/one material
Packaging Details :
Foam+cartom box
Price :
Negotiable
Name :
Ceramic ball valve
Category :
Ceramic ball valve
Material :
Zirconia/silicon carbide
Size :
Customized,According to the drawings
Color :
White or black
Use :
Transmits strong corrosive material and high wear-resisting material
Characteristics :
Large contact area, tight seal, and less leakage
Pacage :
Foam+cartom box
Description

Ceramic ball valve of zirconia/silicon carbide with high precision

Description of Ceramic Ball Valve:

The ball valve has tha advantage of large contact area, tight seal, and less leakage, etc. It can be divided two kinds: floating type and stationary type.

Main applications of Ceramic Ball Valve:

1. The ball valve mainly transmits strong corrosive material, such as acid, alkali, salt and so on.

2. The ball valve is maily used for transmitting high wear-resisting material, such as silicon powder, coal dust and so on.

►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5

►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)

Silicon Carbide Zirconium Ceramic Ball Valve Zirconia CSQSilicon Carbide Zirconium Ceramic Ball Valve Zirconia CSQ
