Technical And Advanced Structural Ceramics Rotor For Pump CSQ
Technical And Advanced Structural Ceramics Rotor For Pump CSQ
Technical And Advanced Structural Ceramics Rotor For Pump CSQ
Technical And Advanced Structural Ceramics Rotor For Pump CSQ
Specifications
Brand Name :
CSQ
Model Number :
Customized
Place of Origin :
China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5 pcs in 40-60 days
Delivery Time :
40-60 work days
Packaging Details :
Foam+cartom box
Name :
Ceramic rotor
Category :
Advanced Structural Ceramic
Material :
Silicon carbide or zirconia
Size :
Customized, according to the drawings
Use :
Rotor Pump
Pacage :
Foam+cartom box
Description

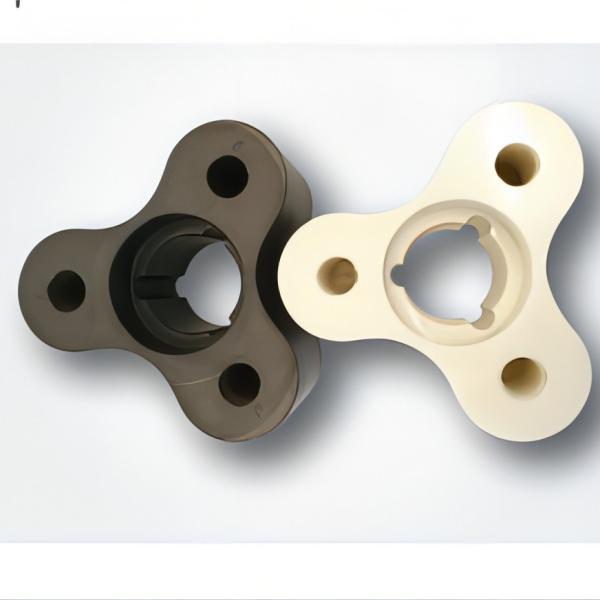

Ceramic Rotor For Rotor Pump In Material Of Silicon Carbide Or Zirconia

Description of ceramic rotor:

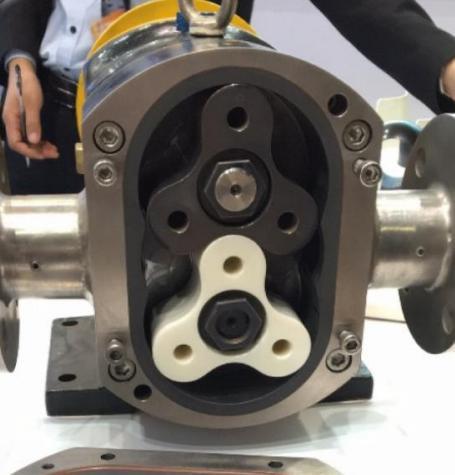

We can manufacture SSiC or ZrO2 ceramic rotor which are used in rotor pump. Rotor pump can be applied to transmit a variety of complex fluid media. Because of the good resistance properties of silicon carbide and zirconium oxide, the rotor pump fitted with our ceramic rotor can work better in corrosive condition and higer temperature.

►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)


►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5
