Specifications
Brand Name :
HENGYUAN
Model Number :
Ceramic Plunger
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Payment Terms :
L/C, T/T
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Ceramic Plunger
Color :
White
Difficulty Of Disassembly :
Easy To Disassemble
Accuracy :
High Precision
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100
Package :
Carton
Description
Customizable Ceramic Plunger for High Insulation and Long Operating Life in Heat Resistant Applications
Product Specifications
Material Ceramic Plunger
Color White
Difficulty Of Disassembly Easy To Disassemble
Accuracy High Precision
OEM/ODM Acceptable
Origin Wuxi Jiangsu, China
MOQ 100 units
Package Carton
Key Features
  • Fluid structure inner cavity surface with no dead corners or grooves
  • Mirror-finished surfaces processed with high-precision cylindrical grinders
  • Vibration-polished outer surface for easy cleaning and disinfection
  • Fine sealing pump body structure for easy disassembly
  • Tested for corrosion resistance and acid/alkali safety performance
  • Performance indicators meet international standards
Material Properties Comparison
Property Unit A95% Alumina Ceramics A97% Alumina Ceramics A99% Alumina Ceramics A99.7% Alumina Ceramics
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric Constant εr 10 10 10 10

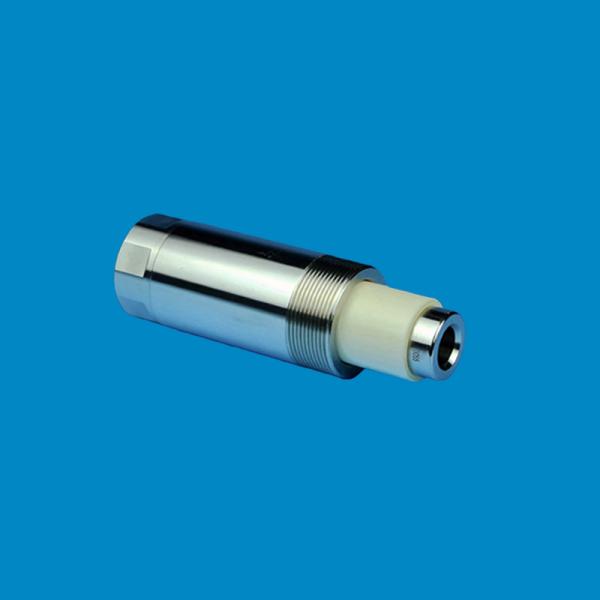

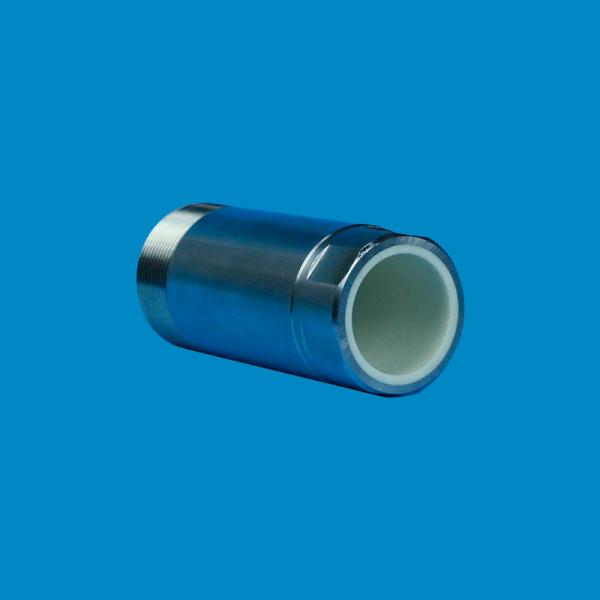

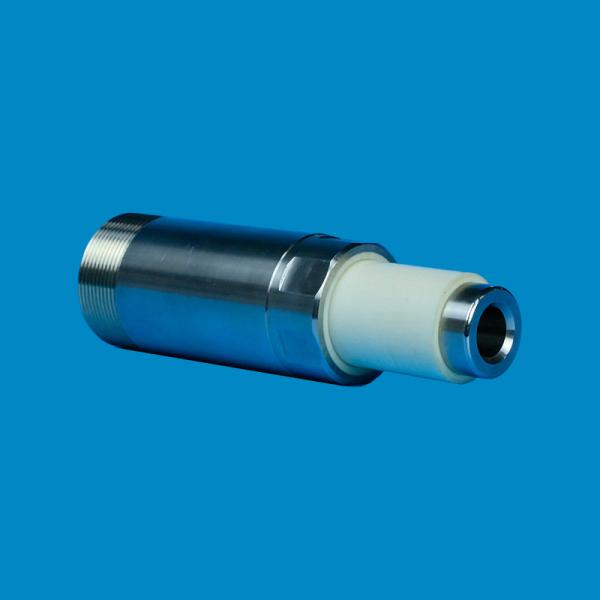

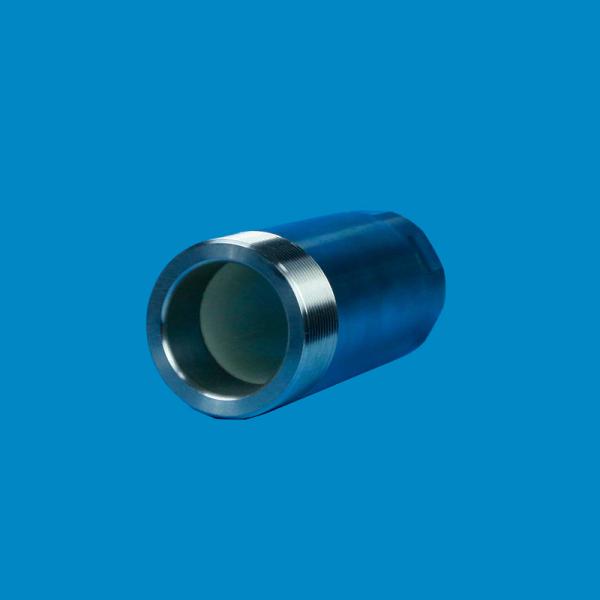

Product Images
