Insulating Al2o3 Alumina Ceramic Tube High Temperature Oem In Bulk
Insulating Al2o3 Alumina Ceramic Tube High Temperature Oem In Bulk
Insulating Al2o3 Alumina Ceramic Tube High Temperature Oem In Bulk
Insulating Al2o3 Alumina Ceramic Tube High Temperature Oem In Bulk
Insulating Al2o3 Alumina Ceramic Tube High Temperature Oem In Bulk
Insulating Al2o3 Alumina Ceramic Tube High Temperature Oem In Bulk
Insulating Al2o3 Alumina Ceramic Tube High Temperature Oem In Bulk
Insulating Al2o3 Alumina Ceramic Tube High Temperature Oem In Bulk
Specifications
Brand Name :
HENGYUAN
Model Number :
Ceramic Tube
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Payment Terms :
L/C, T/T
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Ceramic Tube
Color :
Yellow Or White
Temperature Capability :
High Heat Resistant
Dielectric constant :
10εr
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100
Package :
Carton
Description
Insulating Ceramic Tube with Excellent Heat Resistance and Chemical Resistance
Product Specifications
Material Ceramic Tube
Color Yellow or White
Temperature Capability High Heat Resistant
Dielectric constant 10εr
OEM/ODM Acceptable
Origin Wuxi Jiangsu, China
MOQ 100
Package Carton
Product Description

Alumina ceramic tube is an essential industrial material with exceptional heat and chemical resistance properties. Widely used in chemical processing applications, these tubes safely transport corrosive substances including acids and alkalis, providing reliable performance in demanding environments.

Technical Specifications
Material Unit A95% Alumina Ceramics A97% Alumina Ceramics A99% Alumina Ceramics A99.7% Alumina Ceramics
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10

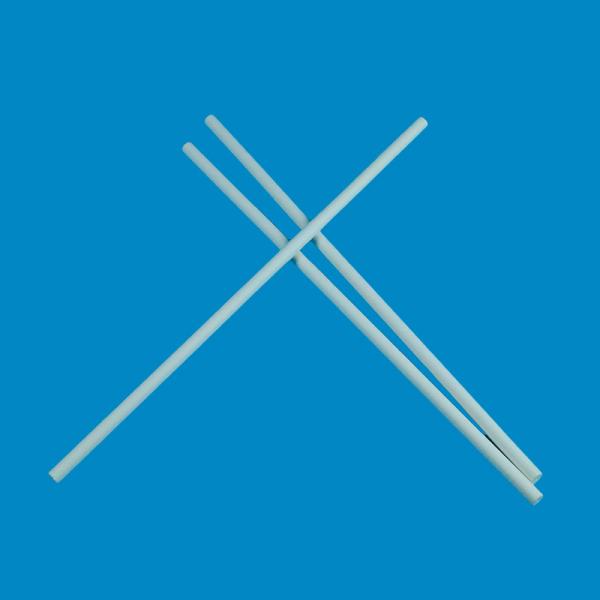

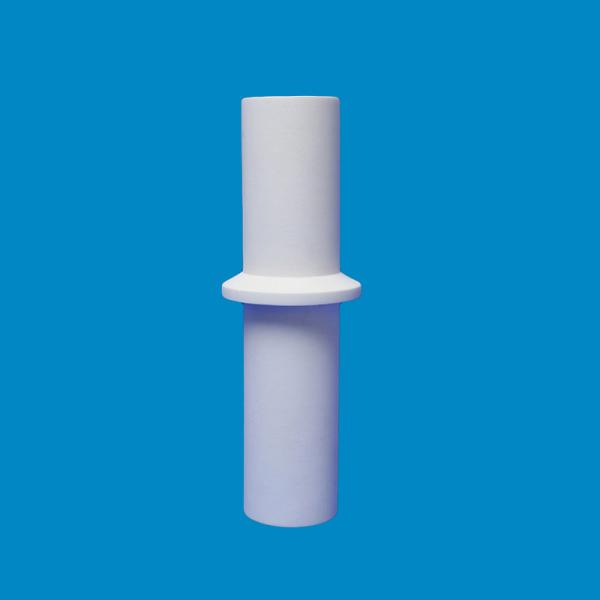

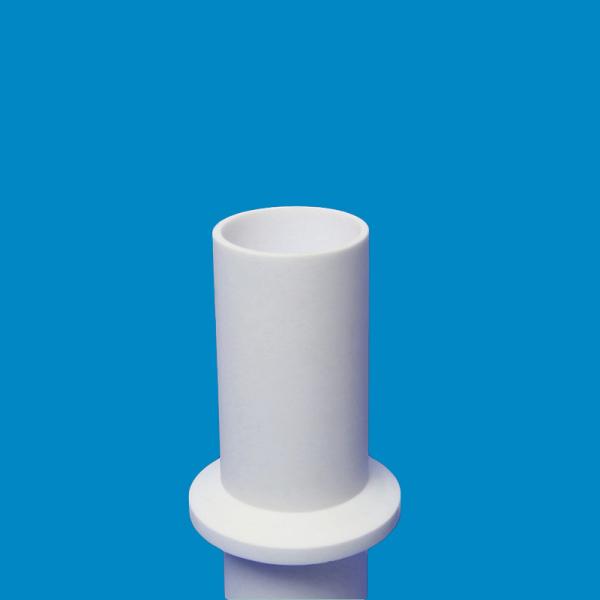

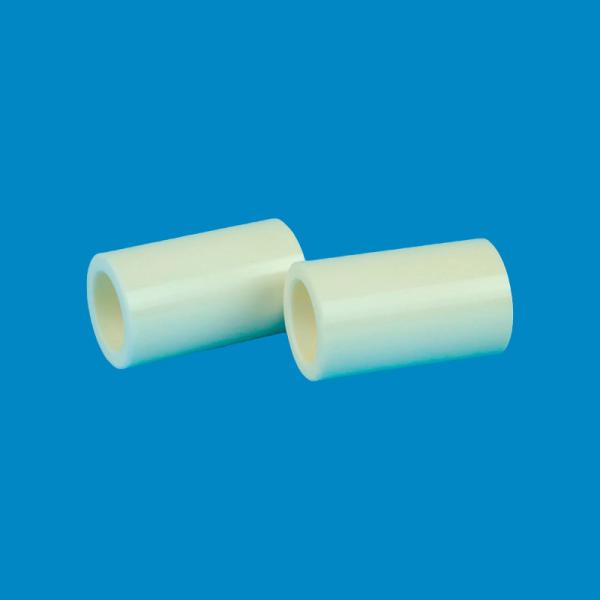

Product Images
