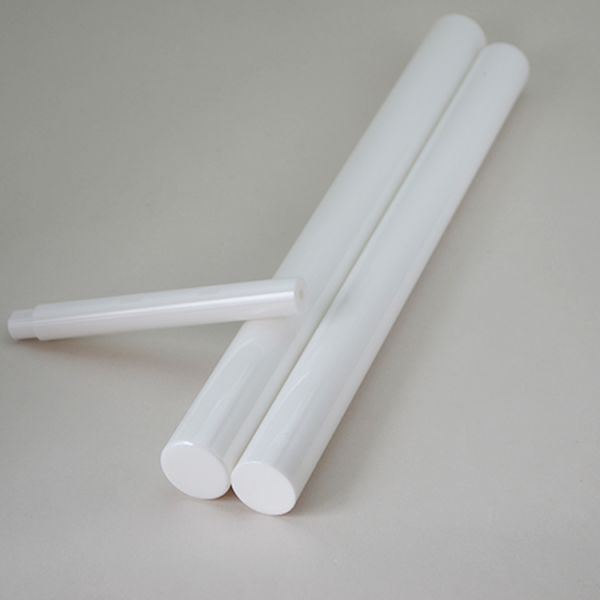

High Hardness Zirconia Rod Tube ZrO2 Ceramic Parts Wear Resisting Customizable
High Hardness Zirconia Rod Tube ZrO2 Ceramic Parts Wear Resisting Customizable
Specifications
Brand Name :
YH
Model Number :
YH
Certification :
ISO，Rohs
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiated
Payment Terms :
L/C,T/T,Western Union,D/A,D/P
Supply Ability :
10000pcs per month
Delivery Time :
10-30days
Packaging Details :
By carton
Inner Diameter :
Customizable (for tubes and pipes), typically 0.5mm to 45mm
Density :
6.0 g/cm³
Outer Diameter :
Customizable, typically 1mm to 50mm
Applications :
High temperature insulation, chemical processing, electronics, medical devices
Operating Temperature :
Up to 2400°C
Length :
Customizable, typically 100mm to 1000mm
Manufacturing Process :
Isostatic pressing, extrusion, sintering
Purity :
≥ 99.9%
Shape :
Rod, Tube, Pipe
Thermal Conductivity :
2.5 W/m·K
Flexural Strength :
≥ 1000 MPa
Material :
Zirconia (Zirconium Dioxide, ZrO2)
Description

Yuan Hong High Hardness Zirconia Ceramic Tube Rod

The preferred choice for precise experiments in the laboratory: High-purity customized zirconia tubes, unlocking unlimited possibilities in scientific research!
In laboratory environments that prioritize zero pollution and high reliability, the purity and compatibility of the material directly determine the success or failure of the experiment - our laboratory-grade zirconia tubes, with top-quality materials, controllable purity and flexible customization, have become the trusted choice for researchers!
Core material: Y-stable zirconia (YSZ), with unparalleled performance.
Zirconium oxide content: 99.9% - 99.99%.
Contact us immediately to inform your experimental requirements, and we will tailor an exclusive zirconia tube solution for you to help your research achieve efficient breakthroughs!

High Hardness Zirconia Rod Tube ZrO2 Ceramic Parts Wear Resisting Customizable
Technical Specifications
High-performance zirconia ceramic bush tubes designed for precision guiding, bearing, and insulating applications where
exceptional durability, dimensional stability, and chemical resistance are required. Ideal for replacing traditional metal
bushings in harsh operating conditions.
Material Properties
* Material: 95% Yttria-Stabilized Zirconia (YSZ)
* Density: 6.05 g/cm³
* Hardness: HV1300-1500 (HRA 88-91)
* Flexural Strength: 900-1200 MPa
* Fracture Toughness: 8-10 MPa·m¹/²
Application
1. Chemical Processing Equipment: Pump bushings, valve guide sleeves, agitator bearings
2. Food & Beverage: Filling equipment, conveyor systems, food processing machinery
3. Semiconductor: Wafer handling equipment, vacuum chamber components
4. Automotive Industry: Fuel systems, sensor components, special bearings
High Hardness Zirconia Rod Tube ZrO2 Ceramic Parts Wear Resisting Customizable
Basic Physical & Mechanical Properties
Zirconia Ceramic Properties
Item
Unit
Typical Values
Physical Properties
Color
Customized
Density
g/cm3
6.00
Zirconia Content
%
94.4
Gas Permeability
0
Water Absorption
0
Crystal Size
um
0.5
Mechanical Properties
Rockwell Hardness(45N)
R45N
78
Modulus of Elasticity (20°C)
Gpa
>200
Compressive Strength (20°C)
Mpa
2000
Flexural Strength (20°C)
Mpa
800
Thermal Properties
Thermal Expansion Coefficient
10-6/°C
9.6
Thermal Shock Resistance
T°C
250
Thermal Conductivity (20°C-400°C)
W/m.K
2.5

High Hardness Zirconia Rod Tube ZrO2 Ceramic Parts Wear Resisting Customizable

Zirconia Rod & Zirconia Tube Description

ZrO2 Ceramic Tubes and Rods have the advantages of super hardness, high wear-resisting, good corrosion resistance,
high-temperature tolerance, high strength, high mechanical strength, good chemical stability, polishing surface, and so on.
Zirconia Rod and Zirconia Tube are made of ZrO2 ceramics. Zirconia is an extremely refractory material.
It possesses excellent chemical inertness and corrosion resistance at temperatures up to 2200℃,
well above the melting point of alumina. Zirconia is stabilized in the cubic crystal structure to avoid
cracking and mechanical weakening during heating and cooling.
High Hardness Zirconia Rod Tube ZrO2 Ceramic Parts Wear Resisting Customizable
Product packaging
1: Individually packed in anti-static foam
2: Vacuum-sealed for moisture protection
3: Labeled with part number, dimensions, and material grade
4: Shock-resistant outer packaging
5: Available in bulk or custom packaging
High Hardness Zirconia Rod Tube ZrO2 Ceramic Parts Wear Resisting Customizable

High Hardness Zirconia Rod Tube ZrO2 Ceramic Parts Wear Resisting Customizable

FAQ
Q1. Do you provide product samples?
Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.
Q2. What are your accepted payment methods?
We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.
Q3. What is your typical delivery lead time?
Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.
Q4. Do you perform quality inspection before shipment?
Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.
Q5. What other ceramic materials do you offer?
We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
