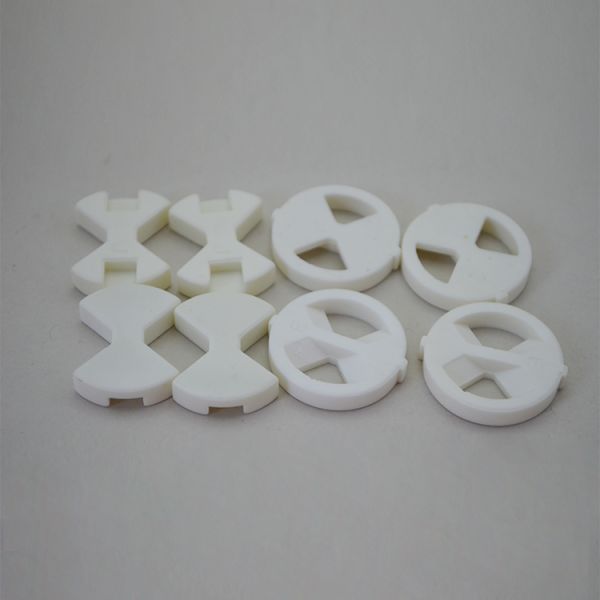

11.5mm 15.0mm 15.5mm 15.7mm Alumina Ceramic Disc for Faucet Cartridge 92% 95% 98%
11.5mm 15.0mm 15.5mm 15.7mm Alumina Ceramic Disc for Faucet Cartridge 92% 95% 98%
Specifications
Brand Name :
YH
Model Number :
Ceramic disc
Certification :
ISO,Rohs
Place of Origin :
China
MOQ :
100000
Price :
0.02
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
within 20days
Delivery Time :
5-8 work days
Packaging Details :
plastic bubble case one by one,put into carton box.
Material :
Alumina Ceramic
Type :
Ceramic disc
Application :
Industrial Ceramic,Refractory
Color :
White,Yellow ,brown
Size :
Customers' Requests,Size Customized,0.5mm-95mm,According to your drawing,OEM
Name :
Alumina ceramic disc for tap
Shape :
round shape
Usage :
Industrial Ceramic, tap bathroom ceramic
Using life :
More than 300000 to 500000
Description

Alumina Ceramic Disc for Faucet Cartridge 11.5mm 15.0mm 15.5mm 15.7mm 92% 95% 98%

Want to upgrade your faucets with top-tier core components?
Introducing our Alumina Ceramic Disc for Tap Cartridge—forged with advanced structural ceramic technology, it completely redefines cartridge durability and user satisfaction.
A linchpin of modern faucet design, it delivers unbeatable wear resistance, corrosion resistance, and precision sealing. It’s the go-to pick for high-end faucet makers and renovation ventures.
Choose our ceramic disc to sharpen your product’s competitive edge, lower after-sales repair expenses, and earn lasting customer loyalty through exceptional quality.
Reach out to our expert team now for tailored solutions and competitive quotes. Partner with us to craft faucets of unparalleled quality!
11.5mm 15.0mm 15.5mm 15.7mm Alumina Ceramic Disc for Faucet Cartridge 92% 95% 98%
CERAMIC DISC
1.Specification: OD: 11.5mm---32mm. ceramic discs Features: 2.The frictional times is 300, 000 to 500, 000. 3.Corrosion-resistant. 4.Density :3.6~3.7g/cubic centimeter. 5.Satisfy various technical request. 6.OEM ODM Service.

Application

Alumina ceramic discs properties and application:

Alumina ceramic discs properties and application:Properties of the ceramic disc cartrige:
1) resistance to chemical attack and gas-tight
2) pressure resistant and insensitive to attack by chemical cleaning agents
3) major lime deposits forming at high water temperatures will be removed by the ceramic material.
4) Non-corrosive, high abrasion resistant

Other Application of the ceramic disc cartridge:

1) for titrators
2) for refrigerant valves
3) for analyzers and medical apparatus, medical applications
4) for gas and solids proportion-ing equipment.
5) for espresso and coffee machines
6) ceramic seal and regulator discs for diverters
7) for single-handle mixers
8) for two-handle faucets
9) for sanitary technology
10) for special-purpose valves .
11.5mm 15.0mm 15.5mm 15.7mm Alumina Ceramic Disc for Faucet Cartridge 92% 95% 98%
Performance For Industrial Ceramic
Item
Unit
95Al2O3
96 Al2O3
99 Al2O3
Physical Characteristics
Heat resistance
℃
1500
1550
1800
Bulk density
g/cm3
3.6
3.6
3.9
Water absorption
%
0
0
0
Mechanical Characteristics
Flexural strength
Mpa
320
340
360
Hardness vickers
Gpa
12.2
13.5
15.6
Elastic modulus
Gpa
280
320
370
Poisson’s ratio
0.22
0.23
0.23
Thermal Characteristics
Linear expansion coefficient
(20-500℃) 10-6/℃
7.1
7.2
8
Thermal conductivity
w/(m.k)
16
24
32
Specific Heat
*10-3J/(kg*K)
0.78
0.78
0.9
Electrical Characteristics
Dielectric constant (1MHZ)
-
9
9.4
9.9
Dielectric loss angle
*10-4
15
5
1
Dielectric strength
*106V/m
12
15
15

11.5mm 15.0mm 15.5mm 15.7mm Alumina Ceramic Disc for Faucet Cartridge 92% 95% 98%

Main advantage of the ceramic disc cartridge:

95%Al2O3 ceramic discs,mailly applicated to temperature modulatory valve,conversion valve,modulatory valve of surf and massagebathtub,
LPG valves,Good hermetical, compressive resistance,flexual resistance,using longevity will be above 500 thousand times.

Product packaging

11.5mm 15.0mm 15.5mm 15.7mm Alumina Ceramic Disc for Faucet Cartridge 92% 95% 98%

11.5mm 15.0mm 15.5mm 15.7mm Alumina Ceramic Disc for Faucet Cartridge 92% 95% 98%

11.5mm 15.0mm 15.5mm 15.7mm Alumina Ceramic Disc for Faucet Cartridge 92% 95% 98%

FAQ
Q1. Do you provide product samples?
Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.
Q2. What are your accepted payment methods?
We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.
Q3. What is your typical delivery lead time?
Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.
Q4. Do you perform quality inspection before shipment?
Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.
Q5. What other ceramic materials do you offer?
We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
