Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color
Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color
Specifications
Brand Name :
YH
Model Number :
YH
Certification :
ISO，CE,ROHS
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiated
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
10-30days
Packaging Details :
by caront or wooden case
Thermal Stability :
Up to 1000°C
Crystalline Phase :
Tetragonal / Monoclinic
Fracture Toughness :
7 - 10 MPa·m^0.5
Applications :
Grinding media, milling, polishing
Density :
5.8 - 6.0 g/cm³
Material :
Zirconium Oxide (ZrO2)
Hardness :
8.5 Mohs
Size Range :
0.1 mm to 5 mm
Color :
White / Off-white
Specific Gravity :
6.0
Purity :
≥ 95%
Description

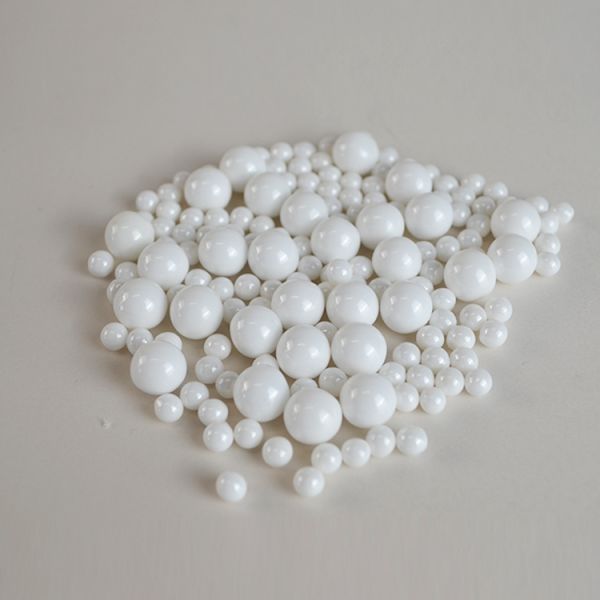

Yttrium Stabilized Zirconium /Zirconia Beads Oxide Balls

High-performance yttria-stabilized zirconia grinding balls deliver exceptional wear resistance, superior density,
and minimal contamination for precision milling. Engineered with advanced stabilization technology,
they provide unmatched hardness (Mohs 9) and chemical stability across minerals, pigments, and ceramics processing.
Featuring ultra-low wear rates (0.01% weight loss after 100 hours of milling) for extended lifespan and reduced maintenance,
these customizable balls ensure uniform material grinding/dispersion. Optimized for efficiency and cost savings while
meeting stringent quality standards, they outperform metal and alumina alternatives in high-intensity milling,
eliminating contamination risks and slashing replacement costs.

Why Zirconia (YSZ) is the Superior Choice

When processing hard or high-purity materials, jar material wear can contaminate samples and skew analytical data. Stainless steel introduces metallic ions, while alumina wears relatively quickly. Yttria-Stabilized Zirconia solves these problems: it offers extreme hardness, outstanding chemical stability, and is the ideal choice for achieving "true" grinding results.

Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color
Technical Specifications
* Material: Yttria-Stabilized Zirconia (Y₂O₃-ZrO₂)
* Density: ≈6.0 g/cm³
* Vickers Hardness: >1200 HV
* Max. Operating Temperature: 1000 °C
* Sealing: Silicone O-ring (standard), PTFE gasket available upon request
* Available Sizes: 50mL, 100mL, 250mL, 500mL, 1L
* Recommended Grinding Media: Zirconia grinding balls (same material) for optimal performance and minimal wear.

Applications

* Geology & mineral sample preparation
* Nanomilling of ceramics, glass, and pigments
* Battery material R&D (e.g., cathode/anode powders like NMC, LFP)
* Fine grinding of metal alloys
* Mixing of polymer composites
Parameters of Zirconia bead Ball
Item
Yttrium stabilized zirconia beads/ Ceramic balls/ Zirconia ceramic balls
HS code
69091100.00
Size
0.1mm/0.2mm/0.3mm/0.3-0.4mm/0.4-0.6mm/0.8-1mm
0.8-1mm/1-1.2mm/1.5mm/2mm/3mm/5mm/10mm........30mm
Can be customized.
ZrO2
≥94%
Y2O3
≤6%
Density
≥6.0 g/cm3
Abrasion
≤3ppm
Color
White

Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color

Features:

1. High cost-effective, low wear and long lifetime
2. High specific gravity, high efficiency
3. Highly wear resistant to acid and solvents
4. Highly polished, smooth, easy to clean, low abrasion to the equipment
5. High mechanical strength, good toughness, impact resistance, no broken beads
6. Mainly used for lab planetary ball mill machines
Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color
Product packaging
Zirconia Grinding Ball and Jar Packaging Options:
Single Unit Pack: ardboard box with foam,Suitable for samples and small orders;
Bulk Pack: * Sturdy box with foam dividers,For regular procurement needs;
Custom Pack: For special requirements and large purchases
Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color

Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color

Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color
Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color
CNC Workshop
Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color
Dry Pressing Workshop
Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color
Polishing Machine
Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color
Zirconium Oxide Furnace
Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color
Sintering Kiln
Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color
Yttrium Stabilized Zirconium Oxide Beads High Purity Zirconia Beads OEM White Color
FAQ
Q1. Do you provide product samples?
Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.
Q2. What are your accepted payment methods?
We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.
Q3. What is your typical delivery lead time?
Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.
Q4. Do you perform quality inspection before shipment?
Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.
Q5. What other ceramic materials do you offer?
We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
