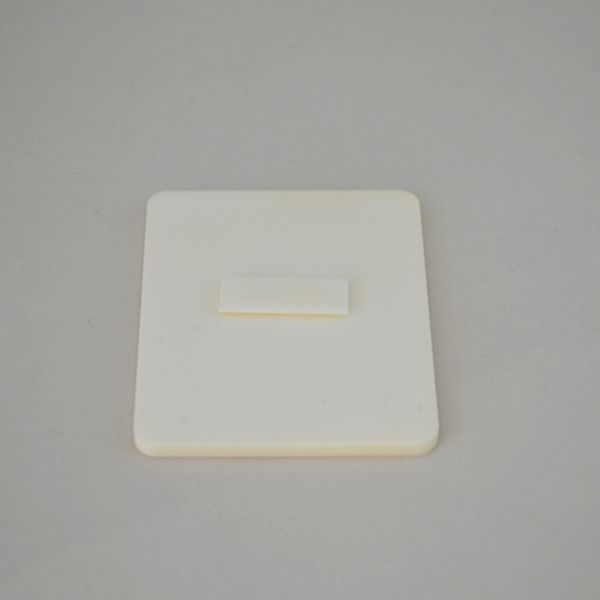

High Purity Alumina Ceramic Plate Sheet 99% Wear Resistant Custom Size
High Purity Alumina Ceramic Plate Sheet 99% Wear Resistant Custom Size
Specifications
Brand Name :
YH
Certification :
ISO,CE,Rohs
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiated
Supply Ability :
10000pcs per month
Delivery Time :
15-30 work days
Packaging Details :
Packing by carton
Materials :
95-997% alumina
Low Thermal Expansion :
Yes
Dimensional Tolerance :
±0.001 mm
Bulk Density :
>3.63
Maximum Use Temperature :
1700c
Chemical Resistance :
Excellent
Applications :
Electrical insulators, wear-resistant parts, cutting tools, biomedical implants
Low Dielectric Loss :
0.0002
Chemical Composition :
Al2O3 (Aluminum Oxide)
Properties :
electric insulation
Thermal Conductivity :
20 - 30 W/m·K
Maximum Operating Temperature :
Up to 1700°C
Corrosion Resistance :
Excellent
Elastic Modulus :
380 GPa
Description

Alumina Ceramic Plate/sheet/gasket 99% High Resistance Round

High Purity Alumina Ceramic Plate Sheet 99% Wear Resistant Custom Size
Alumina (Al₂O₃) ceramic plates:
High-purity alumina (Al₂O₃) ceramic plates—engineered for hardness, thermal stability, and electrical insulation that beat the competition.
Ideal for industrial, electronic, and high-temperature applications, our plates come in 92%–99.5% purity grades, with fully customizable shapes and sizes. A smarter alternative to metals, plastics, and ordinary ceramics—when performance can’t be compromised.
Application
High Purity Alumina Ceramic Plate Sheet 99% Wear Resistant Custom Size
Performance That Outperforms Alternatives
Item
Unit
95 Al2O3
96 Al2O3
99 Al2O3
Physical Characteristics
Heat resistance
0C
1500
1550
1800
Bulk density
g/cm3
3.6
3.6
3.9
Water absorption
%
0
0
0
Mechanical Characteristics
Flexural strength
Mpa
320
340
360
Hardness vickers
Gpa
12.2
13.5
15.6
Elastic modulus
Gpa
280
320
370
Poisson’s ratio
0.22
0.23
0.23
Thermal Characteristics
Linear expansion coefficient
(20-5000C) 10-6/0C
7.1
7.2
8
Thermal conductivity
w/(m.k)
16
24
32
Specific Heat
*10-3J/(kg*K)
0.78
0.78
0.9
Electrical Characteristics
Dielectric constant (1MHZ)
-
9
9.4
9.9
Various Types of Aluminum Nitride Sheets
We Can Do OEM and 0BM According to Your Drawing and Requirements.
High Purity Alumina Ceramic Plate Sheet 99% Wear Resistant Custom Size
Machining Ability of Alumina Ceramics:
Dimensional accuracy: Up to 0.02mm
Surface roughness: Ra0.02-3.2μm
Concentricity: Up to 0.02mm
Parallelism: Up to 0.01mm
Flatness:Up to 0.01mm
Accuracy of Inner hole Drilling: Up to 0.01mm
Cylindricity: Up to 0.02mm
Thread machining: Minimum internal thread M2
Surface finish: As fired, glazed, grinding, polishing, metallization,coating
√ High Voltage Insulator
√ High Purity, Max. 99.8%
√ Various Available Grades
√ Hard and Wear Resistant
√ High Corrosion Resistance
√ High Mechanical Strength
√ Good Thermal Conductivity
√ High Operating Temperature
√ Most Favorable Fine Ceramic
High Purity Alumina Ceramic Plate Sheet 99% Wear Resistant Custom Size

High Purity Alumina Ceramic Plate Sheet 99% Wear Resistant Custom Size

High Purity Alumina Ceramic Plate Sheet 99% Wear Resistant Custom Size
High Purity Alumina Ceramic Plate Sheet 99% Wear Resistant Custom Size
FAQ
Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.
Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.
Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.
Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.
Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
