Square Rectangular Corundum Alumina Boat Tray Sagger Industrial Ceramic Reheating Furnace Tray Melting Crucible

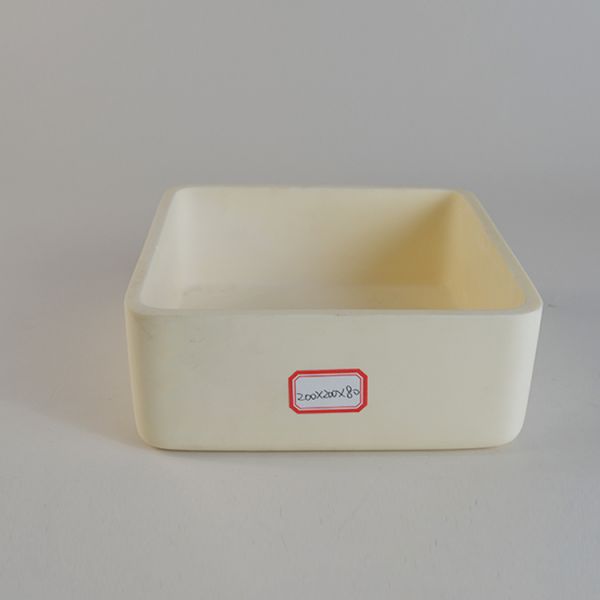

The alumina ark is a flat long groove-type high-temperature ceramic container made of α-Al2O3 as the core raw material and high-temperature sintering.It is often known as the corundum boat.The high-purity model(99%+Al2O3)has the best performance.99% high-purity model long-term use temperature 1600°C,short-term resistance 1800°C,purity decrease temperature resistance decrease;The shape is flat rectangular groove,with no cover/with cover,with hole/no hole and other variants.Customization molding process:grouting,dry pressing ,isostatic pressing molding,and then densified by high-temperature sintering.
|
|

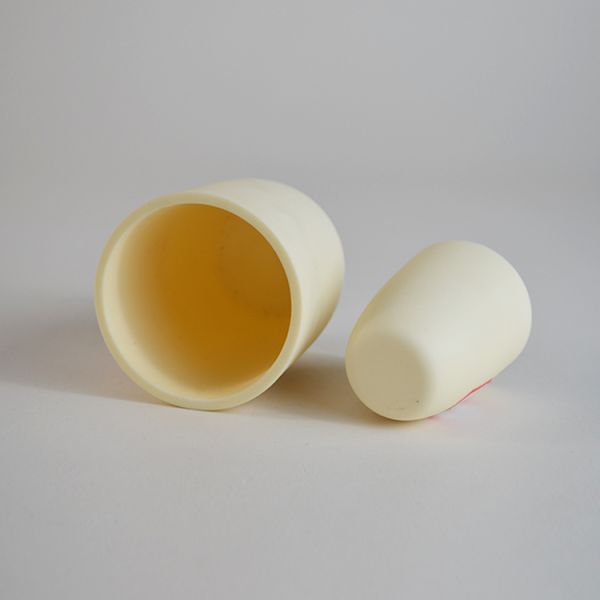

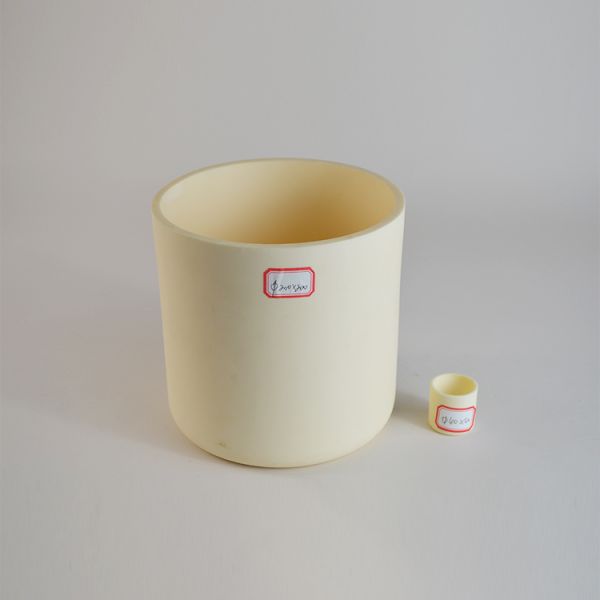

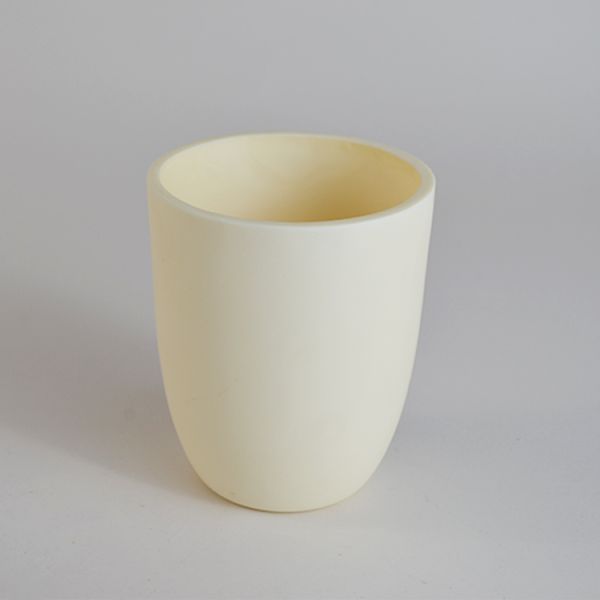

Alumina Ceramic crucible
Alumina (Al₂O₃) ceramic crucible represent advanced engineering components manufactured from high-purity aluminum oxide. With
exceptional hardness, thermal stability, chemical resistance, and electrical insulation properties, these precision components
serve critical functions across semiconductor, medical, industrial, and high-tech applications where traditional materials fail to
perform.
|
Application
Specifications
|
Product name
|
alumina ceramic crucible
|
|
Material
|
AL2O3
|
|
Purity
|
95%99%99.7%99.9%
|
|
Color
|
white,ivory yellow
|
|

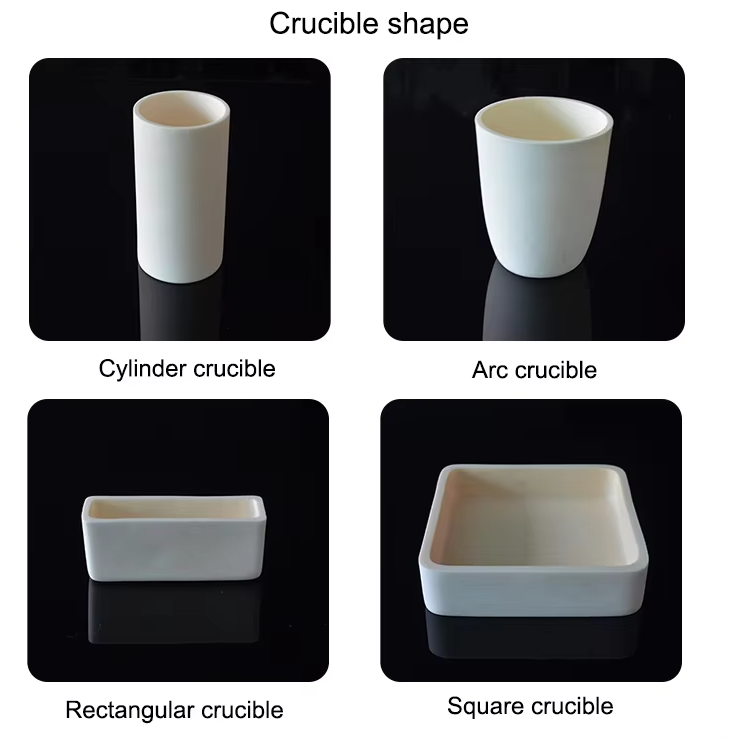

Shape
|
Arc/Square/Rectangle/Cylinder/Boat
|
|
Capacity
|
3-800ml or custom
|
|
Density
|
3.98g/cm3
|
|
Max. Working Temperature
|
1800℃
|
|
|
Powder metallurgy, petrochemical, machinery and equipment, new energy, etc
|

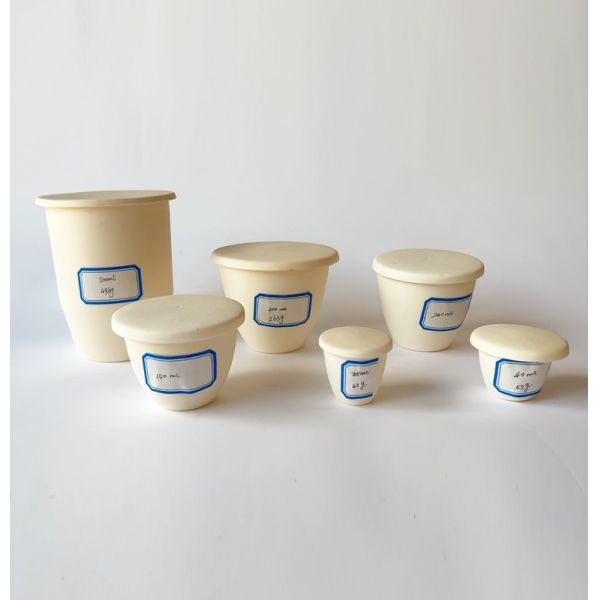

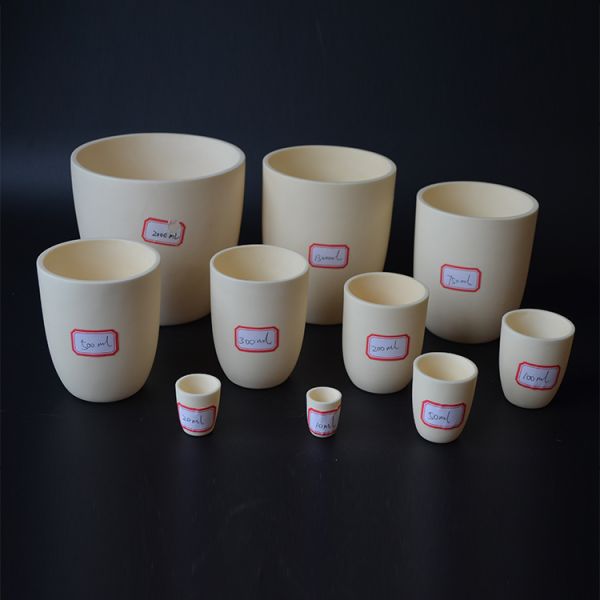

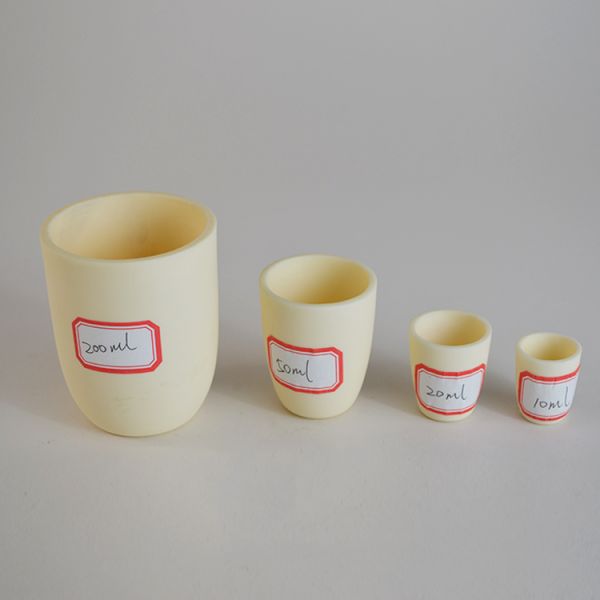

Alumina Ceramic Crucible Basic size:
|
Type
|
|
|
|
|
5ml
|
|
|
|
|
5ml
|
|
|
|
|
8ml
|
|
|
|
|
10ml
|
|
|
|
|
15ml
|
|
|
|
|
20ml
|
|
|
|
|
25ml
|
|
|
|
|
30ml
|
|
|
|
|
Type
|
Upper Diameter(mm)
|
Height(mm)
|
Bottom Diameter(mm)
|
|
40ml
|
48
|
42
|
21
|
|
50ml
|
53
|
47
|
31
|
|
100ml
|
64
|
60
|
35
|
|
150ml
|
74
|
63
|
39
|
|
200ml
|
78
|
70
|
42
|
|
300ml
|
92
|
83
|
47
|
|
500ml
|
92
|
122
|
75
|
|
950ml
|
102
|
160
|
60
|
|
1000ml
|
126
|
145
|
73
|
|
2000ml
|
145
|
155
|
95
|
Feature Advantage
Physical Character of the alumina ceramic crucible
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Linear expansion coefficient
|
|
|
|
|
|
|
|
|
|
|
Dielectric constant (1MHZ)
|
|
|
|
|
|
|
|
|
|
|
Advantages of alumina crucible compared with other crucible:
1. Excellent high temperature performance: alumina crucible can be used at high temperatures,
has a high melting point and chemical stability, can withstand temperature conditions.
2. Good corrosion resistance: alumina crucible has good corrosion resistance to most acids,
alkali, salt and other chemical substances, which can ensure the accuracy and safety of the experiment.
3. High strength and good mechanical properties: alumina crucible has high mechanical strength and hardness,
can withstand greater pressure and vibration, not easy to break or deformation.
4. Good thermal conductivity: the alumina crucible has high thermal conductivity and can transfer heat quickly,
which is conducive to the experiment.
5. Long service life: alumina crucible has high hardness, is not easy to wear, can be used for a long time,
reduce the cost of the experiment.
Frequently Asked Questions
Q1. Do you provide product samples?
Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.
Q2. What are your accepted payment methods?
We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.
Q3. What is your typical delivery lead time?
Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.
Q4. Do you perform quality inspection before shipment?
Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.
Q5. What other ceramic materials do you offer?
We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride, Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
