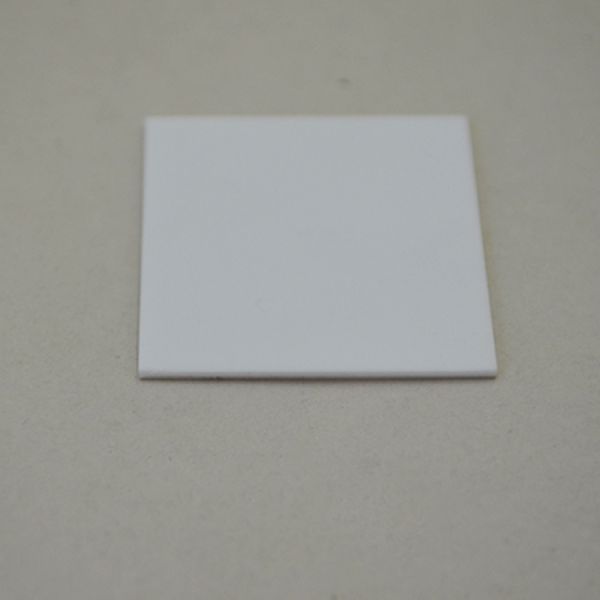

Fully Fired 99.5% Alumina Al2o3 Setter Plates Ceramic Guide Plate High Purity
Fully Fired 99.5% Alumina Al2o3 Setter Plates Ceramic Guide Plate High Purity
Specifications
Brand Name :
YH
Model Number :
YH
Certification :
ISO，CE，ROHS
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiated
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
10-30days
Packaging Details :
By carton
Type :
ceramic substrate
Material :
Alumina Ceramic
Max Operating Temperature :
1500°C
Fracture Toughness :
3 to 4 MPa·m^0.5
Purity :
Typically 85% to 99.99%
Shape :
Customizable
Bulk Density :
>3.69
Materials :
92-99.9% Alumina Powder
Applications :
Electrical insulators, cutting tools, wear parts, substrates
Surface Finish :
Polished
Description

High Purity Fully Fired 99.5% Alumina Al2o3 Setter Plates Ceramic Guide Plate

Reliable Power Electronics Solutions: A960 Alumina Ceramic Substrates
High-Performance A960 Alumina Ceramic Substrates for Power Electronics
A960 Alumina exhibits exceptional performance under high thermal and electrical loads:
① Thermocycling capability;
② Thermal shock resistance;
③ High flexural strength;
④ Superior surface quality;
⑤ Excellent thermal conductivity.
Optimized for DCB and AMB processes, ensuring reliability in critical power electronic applications. T
echnical specs available on request. HighPerformanceCeramics A960Alumina

Fully Fired 99.5% Alumina Al2o3 Setter Plates Ceramic Guide Plate High PurityFully Fired 99.5% Alumina Al2o3 Setter Plates Ceramic Guide Plate High Purity

Application
Fully Fired 99.5% Alumina Al2o3 Setter Plates Ceramic Guide Plate High Purity
Feature&Application
√ High Voltage Insulator
√ High Purity, Max. 99.8%
√ Various Available Grades
√ Hard and Wear Resistant
√ High Corrosion Resistance
√ High Mechanical Strength
√ Good Thermal Conductivity
√ High Operating Temperature
√ Most Favorable Fine Ceramic
Performance That Outperforms Alternatives
Item
Unit
95 Al2O3
96 Al2O3
99 Al2O3
Physical Characteristics
Heat resistance
0C
1500
1550
1800
Bulk density
g/cm3
3.6
3.6
3.9
Water absorption
%
0
0
0
Mechanical Characteristics
Flexural strength
Mpa
320
340
360
Hardness vickers
Gpa
12.2
13.5
15.6
Elastic modulus
Gpa
280
320
370
Poisson’s ratio
0.22
0.23
0.23
Thermal Characteristics
Linear expansion coefficient
(20-5000C) 10-6/0C
7.1
7.2
8
Thermal conductivity
w/(m.k)
16
24
32
Specific Heat
*10-3J/(kg*K)
0.78
0.78
0.9
Electrical Characteristics
Dielectric constant (1MHZ)
-
9
9.4
9.9
Various Types of Aluminum Nitride Sheets
We Can Do OEM and 0BM According to Your Drawing and Requirements.
Fully Fired 99.5% Alumina Al2o3 Setter Plates Ceramic Guide Plate High Purity
Machining Ability of Alumina Ceramics:
Dimensional accuracy: Up to 0.02mm
Surface roughness: Ra0.02-3.2μm
Concentricity: Up to 0.02mm
Parallelism: Up to 0.01mm
Flatness:Up to 0.01mm
Accuracy of Inner hole Drilling: Up to 0.01mm
Cylindricity: Up to 0.02mm
Thread machining: Minimum internal thread M2
Surface finish: As fired, glazed, grinding, polishing, metallization,coating
Packing
Fully Fired 99.5% Alumina Al2o3 Setter Plates Ceramic Guide Plate High Purity

Fully Fired 99.5% Alumina Al2o3 Setter Plates Ceramic Guide Plate High Purity

Hunan Yuanhong New Material Co.,Ltd was established in 2016 ,there are over 100 sets of ceramic professional equipments , several types of furnace in more than 8000 square meters production workshops. ISO9001 certified, a variety of advanced ceramic materials are ROHS and REACH certified.

Fully Fired 99.5% Alumina Al2o3 Setter Plates Ceramic Guide Plate High Purity
FAQ
Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.
Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.
Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.
Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.
Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
