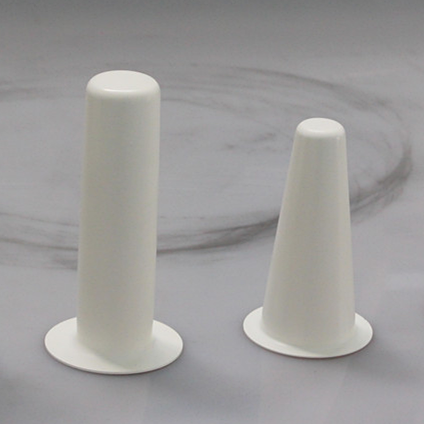

High Thermal Conductivity PBN VGF Crucible High Purity For GaAs InP Single Crystal Growth
High Thermal Conductivity PBN VGF Crucible High Purity For GaAs InP Single Crystal Growth
Specifications
Brand Name :
YH
Certification :
ISO,CE,ROHS
Place of Origin :
CHINA
MOQ :
2
Price :
Negotiated
Payment Terms :
L/C,D/A,T/T,Western Union,D/P
Supply Ability :
1000pcs per month
Delivery Time :
about 50days
Packaging Details :
By carton
Color :
White to off-white
Lubrication :
Self-lubricating
Material :
Boron Nitride (BN)
Manufacturing Methods :
Hot pressing, chemical vapor deposition (CVD), sintering
Thermal Expansion Coefficient :
2.5 - 3.5 x 10⁻⁶ /K
Maximum Operating Temperature :
Up to 1000°C in air, 3000°C in inert atmosphere
Type :
Ceramic
Electrical Conductivity :
Electrical insulator
Density :
2.1 - 2.3 g/cm³
Applications :
Electronics, high-temperature insulators, lubricants, cosmetics
Hardness :
Mohs scale 2 - 2.5
Thermal Conductivity :
60 - 200 W/m·K
Dielectric Strength :
15 - 30 kV/mm
Mechanical Strength :
Moderate flexural strength
Purity :
Typically > 99%
Maximumoperatingtemperature :
Up to 2800°C in inert atmosphere
Crystalstructure :
Hexagonal
Productname :
Pyrolytic Boron Nitride Ceramics
Electricalresistivity :
10¹³ - 10¹⁵ Ω·cm
Thermalconductivity :
60 - 120 W/m·K
Thermalexpansioncoefficient :
2.5 - 3.5 × 10⁻⁶ /K
Dielectricstrength :
10 - 20 kV/mm
Mechanicalstrength :
Flexural strength approx. 40 - 60 MPa
Porosity :
Typically < 0.5%
Lubricity :
Excellent self-lubricating properties
Chemicalstability :
Resistant to molten metals and most acids
Description

Pyrolytic Boron Nitride VGF Crucible High-Purity PBN Crucible for GaAs / InP Single Crystal Growth

Description

Pyrolytic Boron Nitride VGF Crucibles are ultra-high purity CVD PBN crucibles engineered for Vertical

Gradient Freeze (VGF) growth of GaAs, InP and other compound semiconductors.

Their dense, non-porous structure, low outgassing and excellent thermal stability ensure stable crystal growth,

low contamination and consistent ingot quality in advanced semiconductor and optoelectronic applications.

Plasma corrosion ruining your crucibles and disrupting production?
Our PBN Ceramic Crucible features a dense, high-purity structure that effectively resists plasma corrosion.
Designed for plasma processing applications in electronics and semiconductor industries,
it minimizes wear and tear, extends service life, and ensures stable process output.
Protect your operations from plasma damage—trust our PBN Ceramic Crucible for superior corrosion resistance.
High Thermal Conductivity PBN VGF Crucible High Purity For GaAs InP Single Crystal Growth
PBN Ceramic Applications:
- Crystal growth (VGF, LEC Crucible)
- Molecular Beam Epitaxy(MBE) Crucible
- MOCVD Heater
- PBN Infrared Window
- Traveling Wave Tube (TWT) (PBN Support Rod)
- PBN Coating Graphite
- High temperature, vacuum equipment insulator
High Thermal Conductivity PBN VGF Crucible High Purity For GaAs InP Single Crystal Growth
Product Features :
> High purity (99.999%)
> Low outgassing in high temperature >Uniform thickness, Good consistency in heating
> Excellent thermal conductivity and shock resistance
> Easy cleaning and Reusabilit
> Inert, no reaction with acid and alkali
ITEM
UNIT
PBN
Apparent Density
g/cm3
2.15-2.19
Gas permeability(He)
cm3/s
<1X10-10
Micro hardness(Knoop)
N/mm2
691.88(a-b plane)
Tensile strength
N/mm2
153.86(parallel)
Bending strength
N/mm2
243.63(parallel)
197.76(parallel)
Modulus of elasticity
N/mm2
235690
Specific heat capacity
Cal/g.℃
0.371(@200℃)
0.442(@ 900℃)
Thermal conductivity 200℃
W/cm.k
0.6(parallel)
0.026(perpendicular)
Thermal conductivity 900℃
W/cm.k
0.4370(parallel)
0.028(perpendicular)
Dielectric Strength(RT)
KV/mm
56
Volume Resistivity
Cm
3.11X1011
PBN Product List
Pyrolytic Boron Nitride
Crucible
OLED Crucible
VGF Crucible
LEC Crucible
MBE Crucible
Boat
PBN Boat
Plates
PBN Insualting Ring/Substrate
PBN Plates
Pyrolytic Graphite
/
PG Plate
/
PG Crucible
Various Types of PBN Ceramic
We Can Do OEM and 0BM According to Your Drawing and Requirements.

Packing
High Thermal Conductivity PBN VGF Crucible High Purity For GaAs InP Single Crystal Growth

High Thermal Conductivity PBN VGF Crucible High Purity For GaAs InP Single Crystal Growth

FAQ
Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.
Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.
Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.
Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.
Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramic
