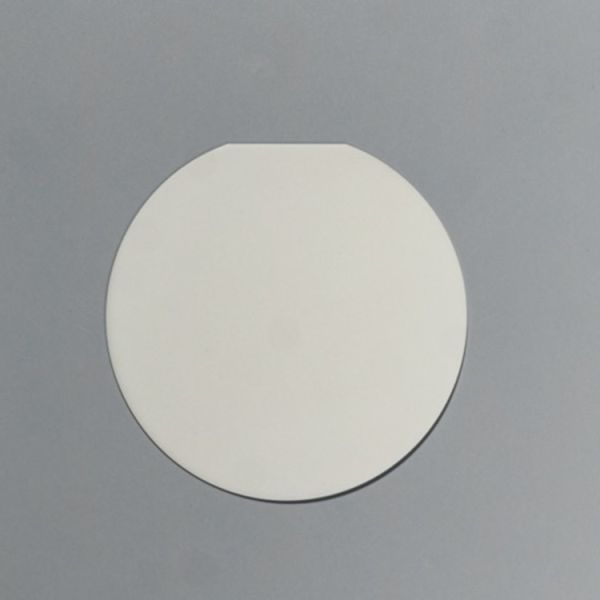

Ceramic Al2O3 Alumina and AlN Aluminum Nitride Ceramic Substrates
Ceramic Al2O3 Alumina and AlN Aluminum Nitride Ceramic Substrates
Specifications
Brand Name :
YH
Model Number :
YH
Certification :
ISO,CE,Rohs
Place of Origin :
China
MOQ :
100
Price :
Negotiated
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5-30days
Packaging Details :
By carton
Material :
AIN Ceramic
Type :
Ceramic Parts
Application :
Industrial Ceramic
Color :
Grey
Size :
Customers' Requests,Size Customized,0.5mm-95mm,According to your drawing,OEM
Thermal Conductivity :
170-200 W/mK
Name :
Metallized ceramic /AIN substrate,High temp alumina ceramic setter plate,Alumina Ceramic Rod,Precision components in alumina ceramic,industrial ceramic alumina ceramic material honeycomb ceramic
Shape :
Rectangle,Square,Sleeve,Tray,Tube
Usage :
Industrial Ceramic,Wear-resisting Material,filter,Industry Usage,ceramic insulator
Description

Insulator Ceramic Al2O3 Alumina and AlN Aluminum Nitride Ceramic Substrates

Laser Diode (LD) Modules

Consumer Electronics (Smartphones/Tablets)

Premium Aluminum Nitride Sheets - Superior Thermal Conductivity & Electrical Insulation.
A high-performance ceramic solution for consumer electronics, our Aluminum Nitride (AlN) Ceramic Substrate addresses thermal issues in compact devices.
As smartphones, tablets, and wearables pursue miniaturization and high performance, thermal management has become a critical factor restricting user experience.
Our thin-film AlN ceramic substrate offers exceptional thermal conductivity in a compact form, dissipating heat from processors and power management chips.
Choose our AlN ceramic substrate to enhance device performance, reduce overheating risks, and gain a competitive edge.
Ceramic Al2O3 Alumina and AlN Aluminum Nitride Ceramic Substrates
Application
Ceramic Al2O3 Alumina and AlN Aluminum Nitride Ceramic Substrates
Aluminum Nitride Sheets – Key Applications:
1.LED Industry: Heat sink substrates for high-power LED chips, improving luminous efficiency and lifespan.
2.Power Electronics: Insulating substrates for IGBT modules, SiC/GaN devices, and automotive power control units.
3.Semiconductor Packaging: Chip carriers and package bases for high-frequency and high-reliability ICs.
4.RF & Microwave Circuits: Low-loss substrates for 5G communications, radar systems, and satellite components.
5:Industrial & Automotive
Heat spreaders in EV battery systems, laser diode coolers, and high-temperature sensor housings.
Performance That Outperforms Alternatives
Item
Unit
Reference Value
Test method
Thermal conductivity
W/m・K
＞170
Transient plane source method
Surface roughness
μm
＜0.6
Stylus surface roughness tester
Warpage
/
＜2.5‰
Glass gauge
Apparent density
g/cm3
≥3.26
Drainage method
Bending strength
MPa
＞300
Three-point bending resistance method
Volume resistance
Ω・cm
1.5x1013 (TYP)
Volume resistance gauge
Dielectric constant
@1MHz
8.9 (TYP)
Impedance method
Dielectric loss
@1MHz
4.6×10-4(TYP)
Impedance method
Break down voltage
Kv/mm
36.85(TYP)
DC power method
Coefficient of linear expansion
1×10-6/℃
4.75(TYP)
Thermomechanical a
Various Types of Aluminum Nitride Sheets
We Can Do OEM and 0BM According to Your Drawing and Requirements.
Ceramic Al2O3 Alumina and AlN Aluminum Nitride Ceramic Substrates
Exceptional Material Properties:
Technical Superiority
* High Purity Material: >99% AlN composition with minimal impurities.
* Advanced Manufacturing: Pressureless sintering technology ensures uniform density.
* Precision Engineering: ±0.05mm dimensional tolerance guarantee.
* Multiple Finishes: As-fired, polished, or metallized surfaces available.
Quality Certifications
* ISO 9001:2015 Certified Manufacturing
* Batch-to-Batch Consistency Guarantee
* Full Traceability Documentation
* RoHS & REACH &CE Compliant
Packing
Ceramic Al2O3 Alumina and AlN Aluminum Nitride Ceramic Substrates

Ceramic Al2O3 Alumina and AlN Aluminum Nitride Ceramic Substrates

FAQ
Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.
Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.
Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.
Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.
Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
