Aluminum Nitride Ceramic Plate Disc Industrial Ceramic Bending Processing Service
Aluminum Nitride Ceramic Plate Disc Industrial Ceramic Bending Processing Service
Specifications
Brand Name :
YH
Model Number :
YH-A
Certification :
ISO
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiated
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5-8weeks
Packaging Details :
Carton
Coefficient Of Thermal Expansion :
4.5-5.3 x10^-6 /K
Dielectric Constant :
8.5-9.5
Operating Temperature Range :
-40°C to 1000°C
Thermal Conductivity :
170-200 W/mK
Applications :
Electronics, heat sinks, substrates
Surface Finish :
Polished or as-sintered
Density :
3.26 g/cm³
Electrical Resistivity :
1x10^14 ohm-cm
Purity :
99.5% or higher
Material :
Aluminum Nitride (AlN)
Breakdown Voltage :
10-15 kV/mm
Color :
Light gray to white
Form Factor :
Customizable shapes and sizes
Description

Aluminum Nitride Ceramic Plate Disc Industrial Ceramic Bending Processing Service

High-Power Semiconductor Chip Thermal Management

For high-power semiconductor chips that generate extreme heat during operation, thermal conductivity is the decisive factor for stable performance.
Our AlN ceramic special-shaped parts, boasting an exceptional 170 W/(m·K) thermal conductivity, are engineered to solve the most challenging heat dissipation issues.
Crafted from high-purity AlN ceramic sheets, plates and boards, these custom-machined components—including heat spreaders, thermal pads and chip
carriers—enable rapid and uniform heat transfer, effectively lowering chip operating temperatures. Unlike traditional thermal management materials,
they combine superior heat conductivity with excellent electrical insulation, preventing short circuits and signal interference. Customizable to fit diverse
chip sizes and packaging designs, our AlN special-shaped parts ensure extended chip lifespan, reduced failure rates and enhanced overall system reliability
for high-power semiconductor applications.

Aluminum Nitride Ceramic Plate Disc Industrial Ceramic Bending Processing ServiceAluminum Nitride Ceramic Plate Disc Industrial Ceramic Bending Processing Service

Application
Aluminum Nitride Ceramic Plate Disc Industrial Ceramic Bending Processing Service
Aluminum Nitride Part Application:
Here are the common purity levels of aluminum nitride powder (AlN) and their typical applications:

1. Industrial Grade Purity

•Purity Range: 95% - 98%
•Applications: Generally used in applications where high purity is not critical, such as basic ceramic
materials and composites.

2. High Purity

•Purity Range: 99% - 99.5%
•Applications: Suitable for most electronic packaging and thermal management applications, as well as
high-performance ceramic materials.

3. Ultra-High Purity

•Purity Range: 99.5% - 99.99%
•Applications: Used in advanced electronic packaging, LED packaging, and high-performance catalyst
supports where extremely high purity is required.

4. Special Purity

•Purity Range: >99.99%
•Applications: Used in specific scientific research and high-precision technology applications, such as
aerospace and military fields.

Selection Recommendations

•Choose Based on Application Requirements: Different applications have different purity requirements. Selecting the appropriate purity can balance performance and cost.
Regular Size
Length x Width (mm)
Thickness (mm)
2'' x 2''
(50.8 x 50.8)
3'' x 3''
(76.2 x 76.2)
4'' x 4''
(101.6 x101.6)
4.5'' x 4.5''
(114.3 x 114.3)
5'' x 5''
(127 x 127)
0.385
0.5
0.635
1.0
Diameter (mm)
Thickness (mm)
Φ16 Φ19 Φ20 Φ26Φ30 Φ35 Φ40 Φ45 Φ50 Φ52 Φ60 Φ75 Φ80
1.0
1.2
1.5
2.0
2.5
Performance That Outperforms Alternatives
Item
Unit
Reference Value
Test method
Thermal conductivity
W/m・K
＞170
Transient plane source method
Surface roughness
μm
＜0.6
Stylus surface roughness tester
Warpage
/
＜2.5‰
Glass gauge
Apparent density
g/cm3
≥3.26
Drainage method
Bending strength
MPa
＞300
Three-point bending resistance method
Volume resistance
Ω・cm
1.5x1013 (TYP)
Volume resistance gauge
Dielectric constant
@1MHz
8.9 (TYP)
Impedance method
Dielectric loss
@1MHz
4.6×10-4(TYP)
Impedance method
Break down voltage
Kv/mm
36.85(TYP)
DC power method
Coefficient of linear expansion
1×10-6/℃
4.75(TYP)
Thermomechanical a

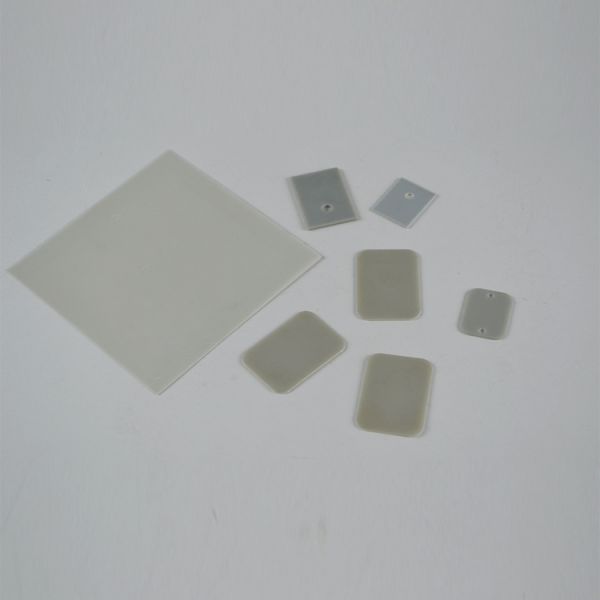

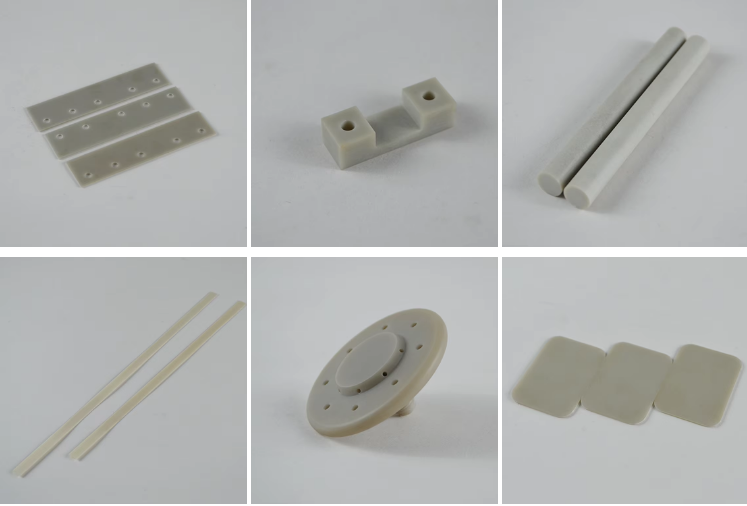

Various Types of Aluminum Nitride Sheets
We Can Do OEM and 0BM According to Your Drawing and Requirements.
Aluminum Nitride Ceramic Plate Disc Industrial Ceramic Bending Processing Service
Exceptional Material Properties:
Technical Superiority
* High Purity Material: >99% AlN composition with minimal impurities.
* Advanced Manufacturing: Pressureless sintering technology ensures uniform density.
* Precision Engineering: ±0.05mm dimensional tolerance guarantee.
* Multiple Finishes: As-fired, polished, or metallized surfaces available.
Quality Certifications
* ISO 9001:2015 Certified Manufacturing
* Batch-to-Batch Consistency Guarantee
* Full Traceability Documentation
* RoHS & REACH &CE Compliant
Aluminum Nitride Ceramic Plate Disc Industrial Ceramic Bending Processing Service

Aluminum Nitride Ceramic Plate Disc Industrial Ceramic Bending Processing Service

FAQ
Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.
Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.
Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.
Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.
Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
