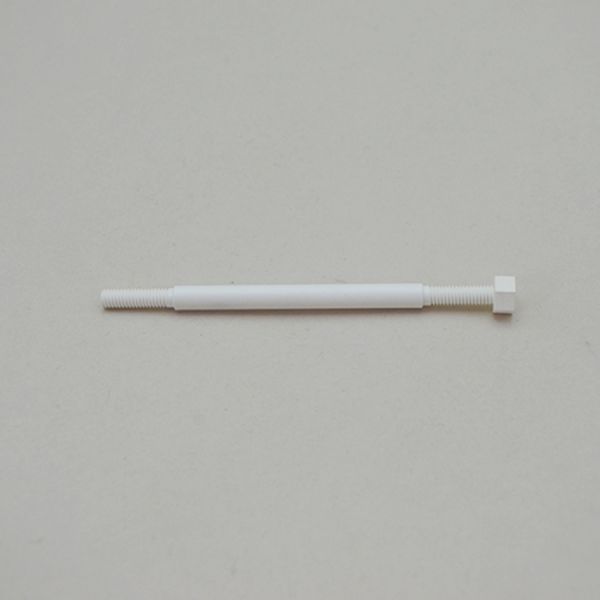

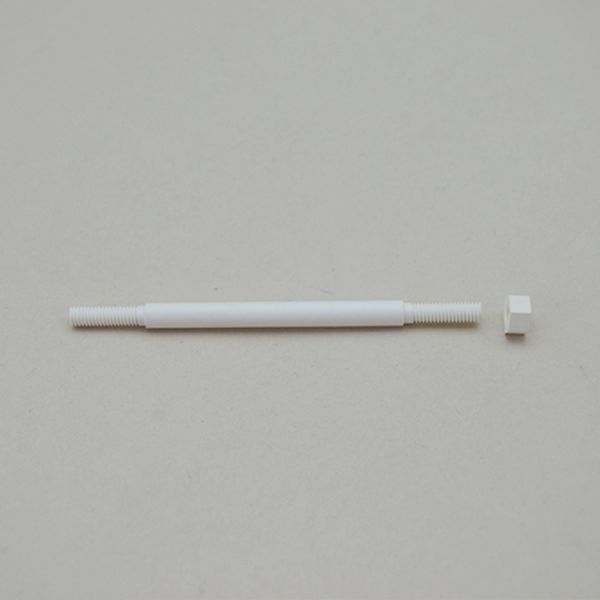

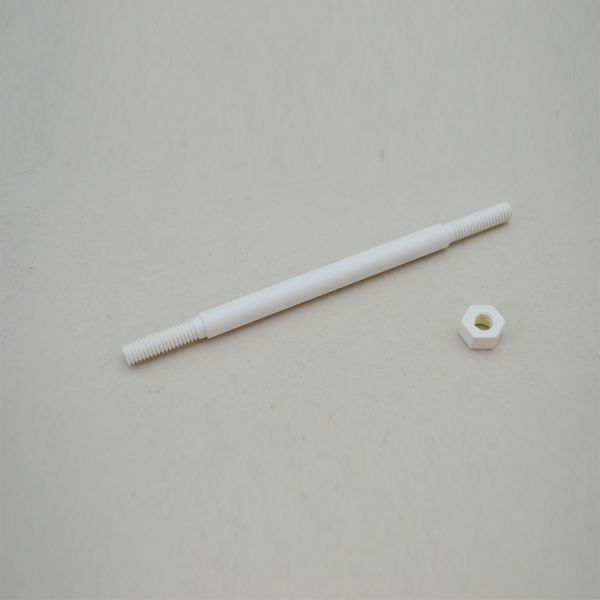

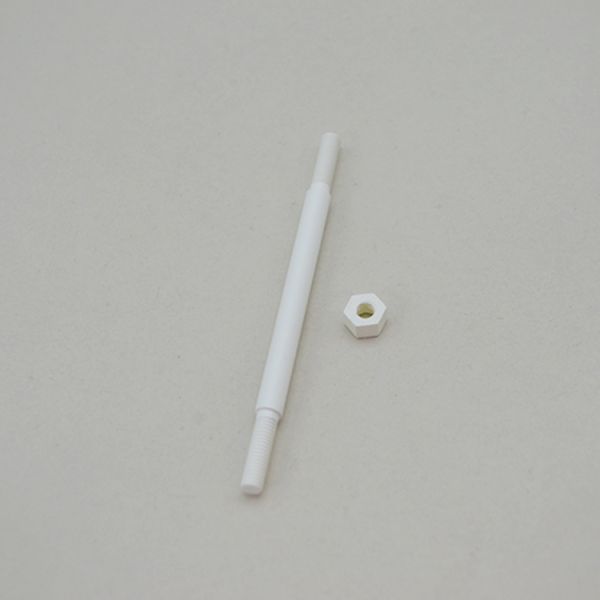

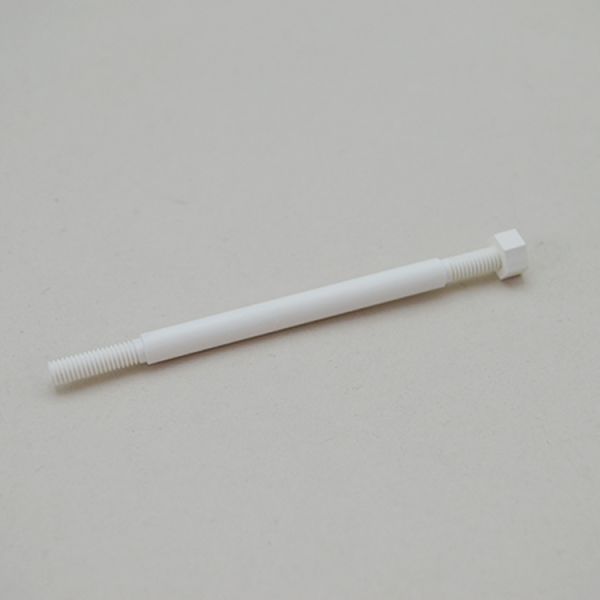

High Purity Threaded BN Boron Nitride Ceramic Rod
High Purity Threaded BN Boron Nitride Ceramic Rod
High Purity Threaded BN Boron Nitride Ceramic Rod
High Purity Threaded BN Boron Nitride Ceramic Rod
High Purity Threaded BN Boron Nitride Ceramic Rod
High Purity Threaded BN Boron Nitride Ceramic Rod
High Purity Threaded BN Boron Nitride Ceramic Rod
High Purity Threaded BN Boron Nitride Ceramic Rod
High Purity Threaded BN Boron Nitride Ceramic Rod
High Purity Threaded BN Boron Nitride Ceramic Rod
Specifications
Certification :
ISO,CE,ROHS
Structure :
One-piece threaded structure, easy installation
Thread Accuracy :
Standard metric thread, wear-resistant & tight fit
Durability :
Thermal shock resistant, long service life
Safety :
High voltage insulation, non-conductive
Application :
Vacuum furnace, welding jig, semiconductor
Purity Grade :
99%+ High Purity h-BN
Heat Resistance :
No cracking or deformation under high heat
Service :
Fast sampling, stock supply, global delivery
Surface Property :
Self-lubricating, anti-metal adhesion
Processing :
Custom size & special shape available
Place of Origin :
CHINA
Brand Name :
YH
Description
High Temperature Insulating High Purity Threaded BN Boron Nitride Ceramic Rod

Description

Product Overview
Threaded boron nitride ceramic rods are special ceramic structural parts made of high-purity hexagonal boron nitride through hot-press sintering and precision CNC turning. Different from ordinary alumina ceramics, BN materials feature ultra-high temperature resistance, perfect insulation, non-wetting to molten metal, self-lubricating property and excellent machinability. With integrally molded high-precision threads, the rods deliver smooth meshing performance without thread slipping or deformation under high temperatures. They are indispensable insulating positioning, fixing and supporting components for high-temperature vacuum equipment, semiconductor tooling, welding jigs and high-voltage precision devices.

High Purity Threaded BN Boron Nitride Ceramic RodHigh Purity Threaded BN Boron Nitride Ceramic Rod
Material
h-BN Ceramic
Product Type
Threaded ceramic rod / threaded positioning pin
Working Temperature
2000℃ 850℃ in air, 2000℃ in vacuum/inert atmosphere
Insulation Performance
Ultra-high insulation, leakage-free, high-temperature insulation
Thread Specification
M3/M4/M5/M6/M8/M10
Size Range
5mm–300mm Diameter 3mm–30mm, Length 5mm–300mm
Core Features
High temperature resistance, non-conductive, non-stick metal, easy machining, high strength
Production Process
Hot-press sintering, precision turning, one-piece threaded molding
Application Industries
High-temperature equipment, semiconductor, vacuum furnace, new energy, precision instruments, welding fixture
Supply Capacity
Standard stock + custom service, test reports available
Application
Threaded boron nitride ceramic rods are widely applied in high-temperature, high-voltage, insulating and anti-stick industrial scenarios: vacuum furnace insulating support columns, semiconductor equipment positioning ceramic pins, anti-stick ceramic threaded pillars for welding jigs, high-voltage insulating fasteners for new energy equipment, high-temperature support pillars for precision laboratory instruments, laser device insulating parts, metallurgical anti-stick structural components, and aerospace high-temperature insulating assemblies.

High Purity Threaded BN Boron Nitride Ceramic Rod
Mechanical Properties

Item

Unit

Data

Main Content

%

99.9

Bulk Density

g/cm3

1.95-2.0

Compression Strength

MPa

100

Flexural Strength

MPa

30

Electrical Resistivity

Ohm.cm

>1014

Thermal Conductivity

W/MK

20

Expansion Coefficient

10-6 K (20-1000°C)

1.5

Max. Work Temperature

°C(air)

900

°C (inert gas)

2400

°C (vacuum)

2000


Various Types of BN Ceramic
We Can Do OEM and 0BM According to Your Drawing and Requirements.

High Purity Threaded BN Boron Nitride Ceramic Rod

High Purity Threaded BN Boron Nitride Ceramic Rod

Boron Nitride Machining

Hexagonal boron nitride can be machined into highly complex geometries with very tight tolerances.

Precision Ceramics has 3, 4 and 5 axis CNC machining capabilities and over 20 years of experience

creating custom boron nitride components.

Precision Ceramics is your Boron Nitride machining specialist for your technical ceramic prototyping &

manufacturing needs; we are always happy to use our many years of advanced ceramics experience

to provide advice on materials, design, and application. If you would like to buy Boron Nitride plates,

bars, rods, tubes, Aerosol Sprays, Paintable Coatings, Industrial Powders, or custom machined parts,

please contact us and one of our experts will be happy to assist you.

High Purity Threaded BN Boron Nitride Ceramic Rod

High Purity Threaded BN Boron Nitride Ceramic RodHigh Purity Threaded BN Boron Nitride Ceramic Rod

FAQ
Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramic
