Specifications
Brand Name :
HY
Model Number :
HY-TCH-01
Certification :
CE
Place of Origin :
China Yixing
MOQ :
10 pieces
Price :
Negotiation
Payment Terms :
L/C, D/P, T/T, Western Union
Delivery Time :
20-30 working days
Packaging Details :
wooden case
AL2O3 :
≥ 99%
product name :
Alumina ceramics ring parts
color :
White
density :
3.85g/cm³
sintering temperature :
1690℃
size :
customization
Description

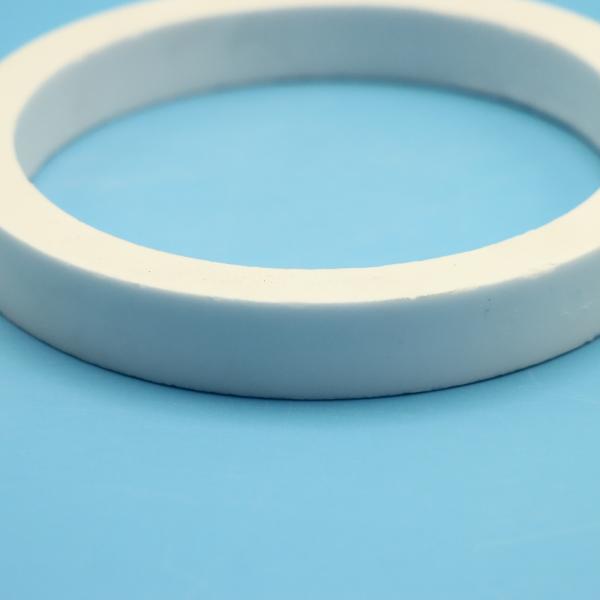

Alumina ceramic ring

Advantages of alumina ceramics:

1. Aluminum oxide ceramics have excellent properties that are non combustible, rust resistant, sturdy, and not easily damaged compared to other organic and metal materials.

2. Aluminum oxide ceramics have wear resistance, but their hardness is the same as that of corundum, and their wear resistance can reach Mohs hardness level nine, which is comparable to that of superhard alloys.

Performance of alumina ceramics:

1. Lightweight

The density of alumina ceramic materials is 3.7~3.95g/cm °, which is only half of that of steel and can greatly reduce equipment load.

2. Wide applicability

Aluminum oxide ceramics are widely used in fields such as machinery, fiber optics, cutting tools, medical, food, chemical, aerospace, etc.

products index:

Ceramic characteristic table
name 99% AL2O3 95% AL2O3
physical propertyessential component essential component AL2O3≥99% AL2O3≥95%
Density(g/cm3) 3.85 3.6
water absorption% 0 0
sintering temperature 1690 1670
material characters Hardness(HV) 1700 1600
break off strength >6500 >2900
compressive strength 30000 25000
thermal response maximum service tempera- ture 1500 1400
thermal expansion coefficient 8 7.8
10-6/℃
0-1000℃
Heat shock resistance T(℃) 200 220
thermal conductivity W/m.k 31 22
electrical specification volume resistivity Ω.cm >1012 >1012
Insulation destructive power KT/m 18 16
dielectric constant 1MHZ(E) 9.2-10.5 9.0-10

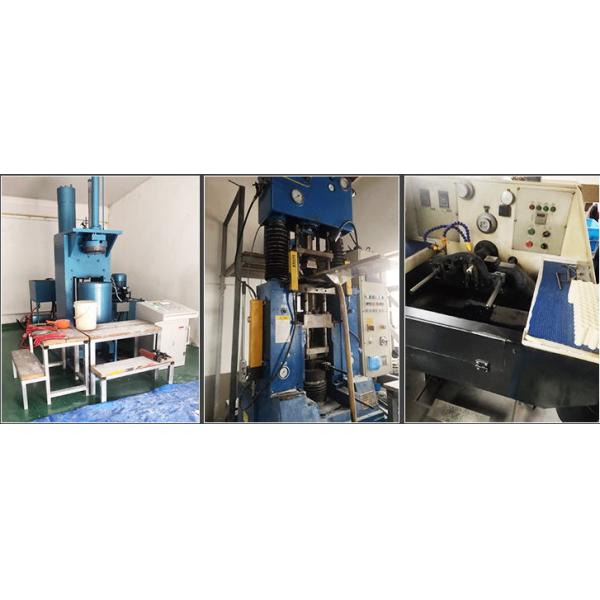

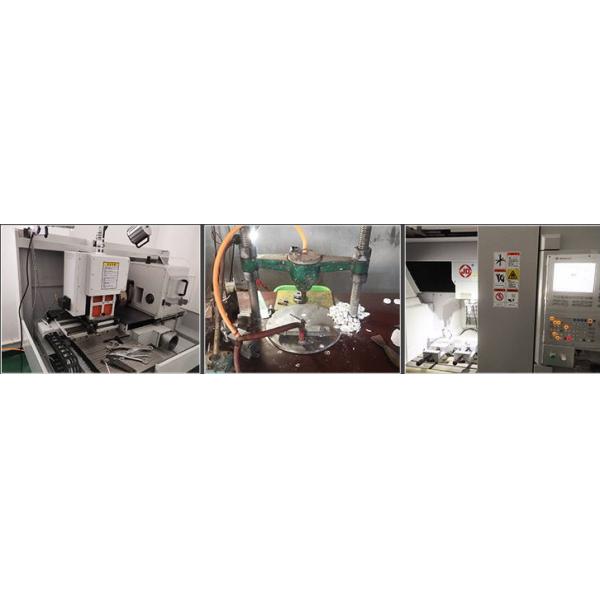

Company workshop equipment:
