Specifications
Brand Name :
HY
Model Number :
HY-NHZ-1
Certification :
CE
Place of Origin :
China Yixing
MOQ :
100 pieces
Price :
Negotiation
Payment Terms :
Western Union, T/T, D/P, L/C
Supply Ability :
100000 pcs per month
Delivery Time :
20-30 working days
Packaging Details :
strong wooden box for global shipping
product name :
refractory high aluminum brick grade 1
size :
length 230mm width 114mm high 65mm
refractory temperature :
1790℃
AL2O3 :
≥ 75%
Fe2o3 :
<2.5
color :
yellow
Description

first-order refractory brick high temperature regenerative kiln furnace hearth incubation

product name: refractory high aluminum brick grade 1

product description:

Refractory brick material is a kind of material that can withstand a certain temperature. It is an inorganic non-metallic material with a refractoriness of not less than 1580 °C and can resist high temperature sudden change and slag erosion and can withstand high temperature load.
High alumina brick : Super high alumina brick is a kind of neutral refractory material with alumina content not less than 80 %. It is made from bauxite or other raw materials with high alumina content by molding and calcination. The thermal stability is high, and the refractoriness is above 1770 °C. In addition, high-alumina bricks are also widely used as regenerative checker bricks for flat furnaces, stoppers for gating systems, and nozzle bricks. General high alumina brick ( i.e. T-shaped brick ), special-shaped high alumina brick, blast furnace brick ( i.e. G-shaped brick ).

product index:

Item First grade high alumina brick Secondary high alumina brick Three grade high alumina brick special high alumina brick
AL2O3 %≥ 75 65 55 82
Fe2o3 %＜ 2.5 2.5 2.6 2
volume density g/cm3 2.5 2.4 2.3 2.6
cold crushing strength MPa＞ 70 60 50 80
load softening temperature ℃ 1510 1460 1420 1550
refractoriness ℃＞ 1790 1770 1770 1790
apparent porosity % 22 23 24 21
linear change rate % -0.3 -0.4 -0.4 -0.2

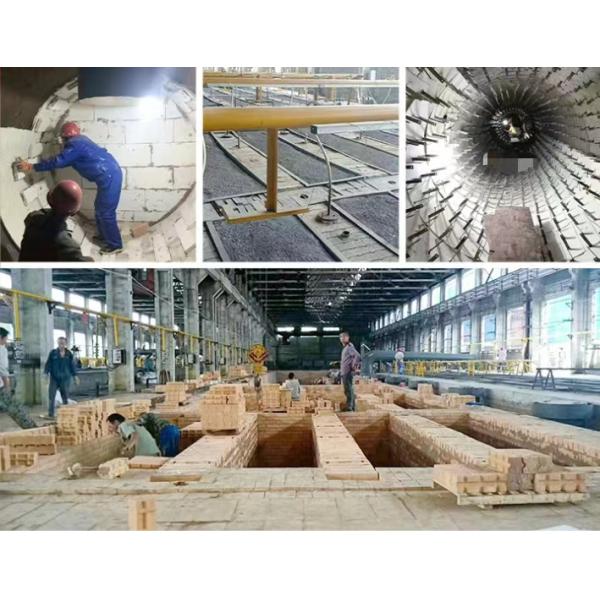

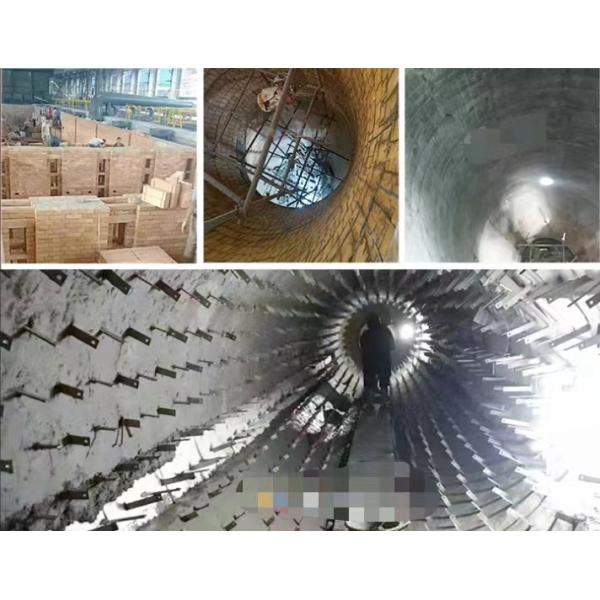

Refractory brick construction pictures:

High Temperature Regenerative Refractory Brick Kiln Furnace Hearth Incubation

High Temperature Regenerative Refractory Brick Kiln Furnace Hearth Incubation
