Tilting Furnace Aluminum Oxide Abrasive Grits FEPA Brown 30# 36# 46# For Cutting Discs
Tilting Furnace Aluminum Oxide Abrasive Grits FEPA Brown 30# 36# 46# For Cutting Discs
Tilting Furnace Aluminum Oxide Abrasive Grits FEPA Brown 30# 36# 46# For Cutting Discs
Tilting Furnace Aluminum Oxide Abrasive Grits FEPA Brown 30# 36# 46# For Cutting Discs
Specifications
Brand Name :
ZHENGTONG
Model Number :
F12#-F220#
Certification :
ISO9001, ISO14001
Place of Origin :
Henan, China
MOQ :
1 MT
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10000mt per year
Delivery Time :
8-30 days
Packaging Details :
25kgs bags+Ton bag or pallet, 25mt/20'GP usually
Material :
Aluminium oxide Al2O3
Product name :
Brown aluminum oxide abrasive
Crystal form :
Trigonal crystal sytem
Color :
Brown
Hardness :
Vickers Harness: 2100 HV Mohs: 9
Bulk Density :
F12#-F220# 1.98-1.68g/cm3
True specific :
3.97g/cm3
Package :
25kgs bags +Ton bag or Pallet
Chemical Index :
Al2O3 95%min. SiO2 1%max. Fe2O3 0.3%max. TiO2 2.0-2.8% Cao 0.45% max.
Usage :
For bonded abrasives like cutting discm grinding wheels, etc.
Port of loading :
Tianjin, China
Sample :
1 kg for free
Description

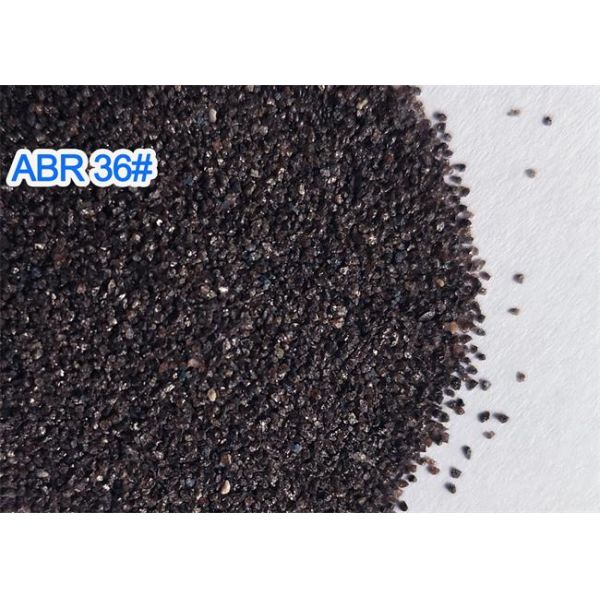

BROWN ALUMINUM OXIDE GRITS FOR BONDED ABRASIVES

Tilting Furnace Aluminum Oxide Abrasive Grits FEPA Brown 30# 36# 46# For Cutting Discs

Brown Fused Alumina, also called Brown aluminum oxide, is the main raw materials to produce vitrified bonded abrasives and resin bonded abrasives like cutting discs, cutting wheels, grinding wheels, etc..

Grit sizes from 12#-220#. Popular sizes 24#,30#,36#,46#,60#, 80# etc.

All grains can meet GB/T2481.2—2009 and/or FEPA 42-1:2006.

By Al2O3:

  • 95% Al2O3 Grade A Brown aluminum oxide
  • 92% Al2O3 Offset A Brown aluminum oxide
  • 85% Al2O3 Grade B Brown aluminum oxide

By application:

  • F sand for Bonded Abrasives
  • P sand for coated Abrasives

By smelting type:

  • Tilting furnace
  • Fixed Furnace

By crushing type:​

  • Barmac
  • Rolling
  • Ball milling

By Additional treatment:

  • Middle temperature calcined Brown aluminum oxide,
  • High temperature calcined Brown aluminum oxide,
  • Coated Brown aluminum oxide
  • High temperature calcined & coated Brown aluminum oxide (AHMCF)

Tilting Furnace Aluminum Oxide Abrasive Grits FEPA Brown 30# 36# 46# For Cutting Discs

Tilting Furnace Aluminum Oxide Abrasive Grits FEPA Brown 30# 36# 46# For Cutting Discs

Commodity: Brown Fused Alumina

Production Type: Tilting Furnace, Barmac Crushing, Air Blow Cleaning

Chemical Index
Al2O3 SiO2 Fe2O3 TiO2 CaO
95%min. 1.0% max. 0.3% max. 2.0%-3.0% 0.45% Max.

Physical Index
Color Crystal Form True Specific Gravity Vickers Hardness Melting point
Brown Trigonal Crystal 3.97g/cm3 2100kg /mm2 2000 °C

Sizes-Grit & Bulk Density (g/cm3)
F12# 1.93-1.99 F14# 1.92-1.98 F16# 1.91-1.97 F20# 1.90-1.96 F22# 1.89-1.95
F24# 1.88-1.94 F30# 1.87-1.93 F36# 1.85-1.91 F40# 1.84-1.90 F46# 1.83-1.89
F54# 1.82-1.88 F60# 1.81-1.86 F70# 1.80-1.84 F80# 1.79-1.82 F90# 1.77-1.80
F100# 1.75-1.78 F120# 1.73-1.76 F150# 1.70-1.74 F180# 1.69-1.73 F220# 1.68-1.72
Sizes-Section sand
0-1mm 1-3mm 3-5mm 5-8mm 0-25mm
200mesh 325mesh Special sizes can be customized as per clients’ requirements

Supply Capacity

BFA grit: F12#-F220# for abrasives and sandblasting: 1000 mt per Month
BFA section sand 0-1mm, 1-3mm, 3-5mm, 200 mesh, 325 mesh for refractory: 1000 mt per Month
Tilting Furnace Aluminum Oxide Abrasive Grits FEPA Brown 30# 36# 46# For Cutting Discs

Tilting Furnace Aluminum Oxide Abrasive Grits FEPA Brown 30# 36# 46# For Cutting Discs

Tilting Furnace Aluminum Oxide Abrasive Grits FEPA Brown 30# 36# 46# For Cutting Discs

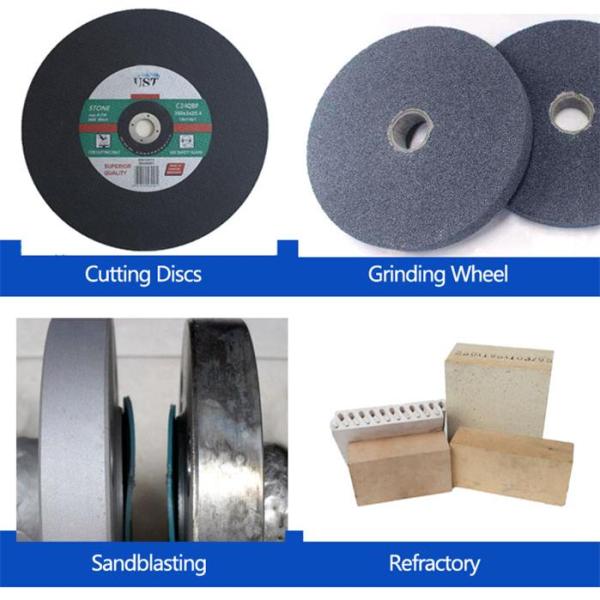

Brown Aluminum oxide grits especially F 20#, 24#, 30#, 36#, 46#, 60#, 70#, 80#

Is applicable for Bonded abrasives and sandblasting

Vitrified Bonded abrasives and resin bonded abrasives. Like grinding wheels, cutting discs, etc.

Sandblast on aluminum parts, copper parts, glass, Washed jeans, precision molds such as shoe molds blasting, decontamination, descaling, cleaning, pretreatment, matte finish, etching art, deburring, stress relief, etc.

Tilting Furnace Aluminum Oxide Abrasive Grits FEPA Brown 30# 36# 46# For Cutting Discs

Tilting Furnace Aluminum Oxide Abrasive Grits FEPA Brown 30# 36# 46# For Cutting Discs

Why Choose us?

1) 20 years abrasive industry experiences

2) Direct Factory supply & Fixed abrasive sources

3) On-site inspection in factory for each shipment

4) Samples tests each lot in Zhengzhou Research Institute for Abrasives& Grinding Co., Ltd

Our Brown fused alumina grit has been exported to Japan, India, Israel, Russia, Poland etc.

Pls send me email to get Brown fused alumina datasheet /samples and quotation…
