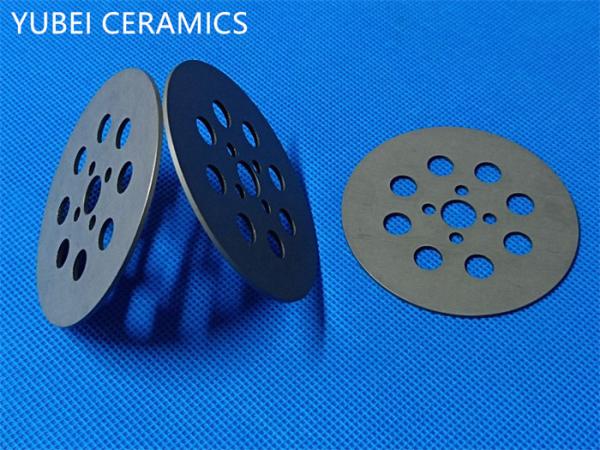

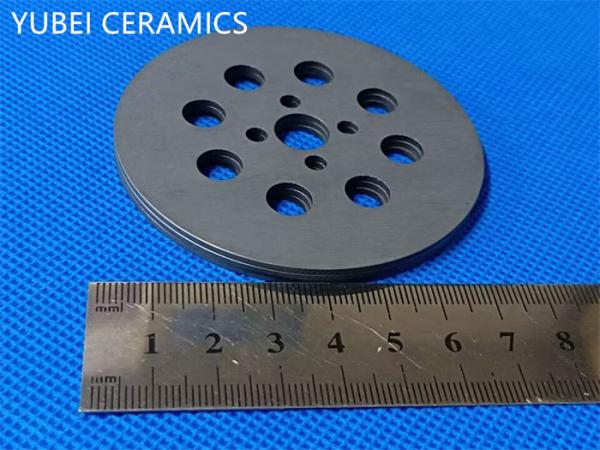

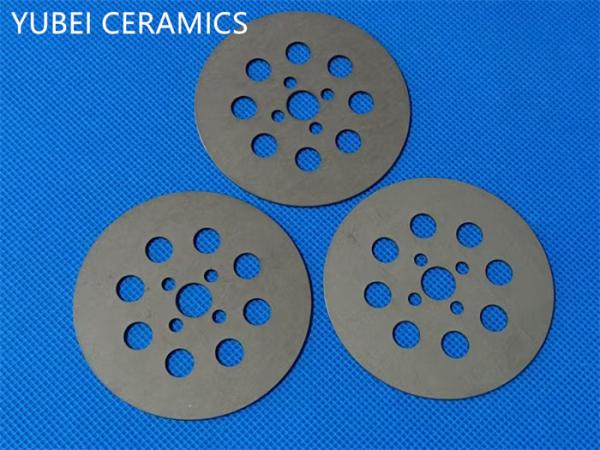

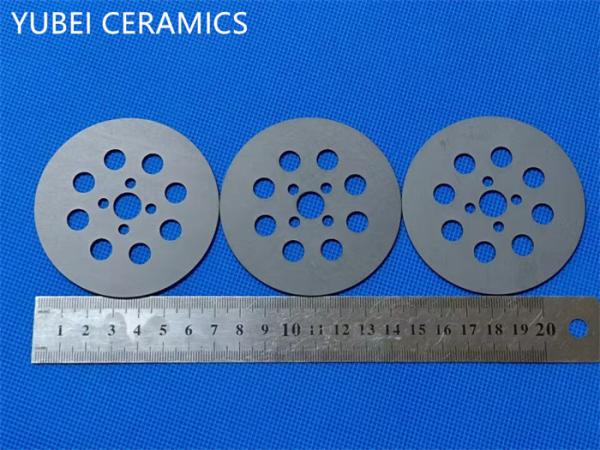

SSiC Silicon Carbide Ceramic Gasket Sic Ceramic Washer Spacer
SSiC Silicon Carbide Ceramic Gasket Sic Ceramic Washer Spacer
SSiC Silicon Carbide Ceramic Gasket Sic Ceramic Washer Spacer
SSiC Silicon Carbide Ceramic Gasket Sic Ceramic Washer Spacer
SSiC Silicon Carbide Ceramic Gasket Sic Ceramic Washer Spacer
SSiC Silicon Carbide Ceramic Gasket Sic Ceramic Washer Spacer
SSiC Silicon Carbide Ceramic Gasket Sic Ceramic Washer Spacer
SSiC Silicon Carbide Ceramic Gasket Sic Ceramic Washer Spacer
Specifications
Brand Name :
YUBEI
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
30 days
Packaging Details :
cartons
Product Name :
silicon carbide ceramic washer
Material :
SSiC
Density :
3.12g/cm3
Hardness :
92-94HRA
Max. temperature :
1600℃
Volume resistivity :
5*10^6Ω.cm
Description

Silicon Carbide Ceramic Gasket Sic Ceramic Washer Sic Spacer

Silicon carbide, mainly consisting of SiC, is the most corrosion-resistant ceramic, used in mechanical seals and pump parts. It maintains its strength up to 1400°C.

Silicon carbide (SiC) is a synthetic, semiconducting fine ceramic that excels in a wide cross-section of industrial markets. Combined with the material’s outstanding high-temperature strength and thermal shock resistance, alongside inherently impressive mechanical properties, silicon carbide is one of the most versatile refractory ceramics worldwide.

Manufacturing:

Product Name silicon carbide ceramic washer
Material SSiC
Sizes customize by drawings or samples
Processing Grinding or polishing

Technical parameters of SSIC:

Items Unit SSIC
Volume density g/cm3 ≥3.10
Hardness HRA ≥92
Compressive strength MPa ≥2200
Flexural strength MPa ≥400
Silicon carbide content % ≥98
Modulus of elasticity GPa 400
Thermal conductivity W/mK 100-120
Max working temperature ℃ 1600
Coefficient of thermal expansion 1.10-6m/k 4.0
