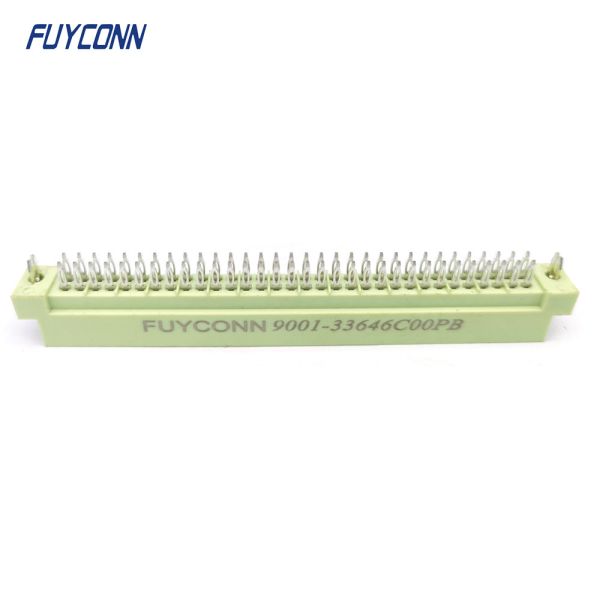

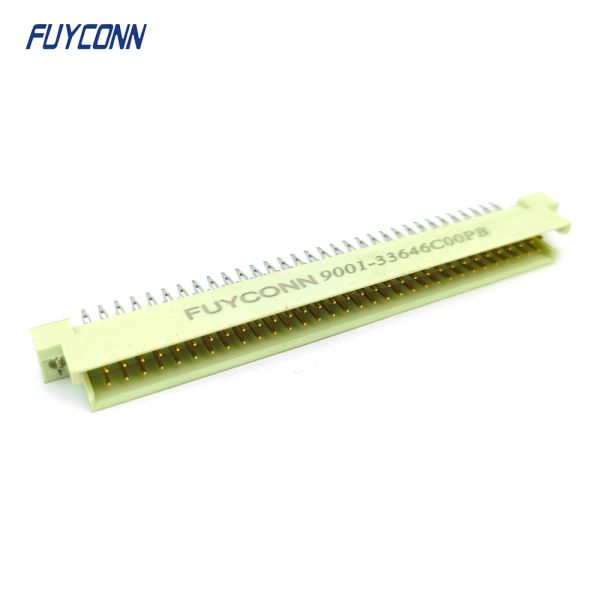

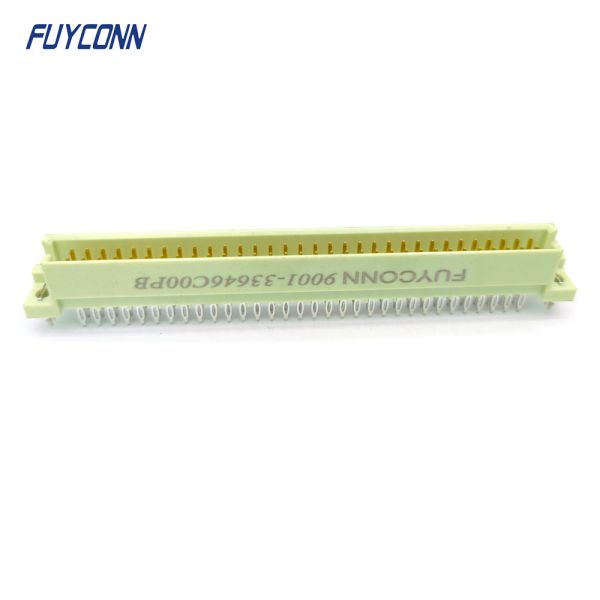

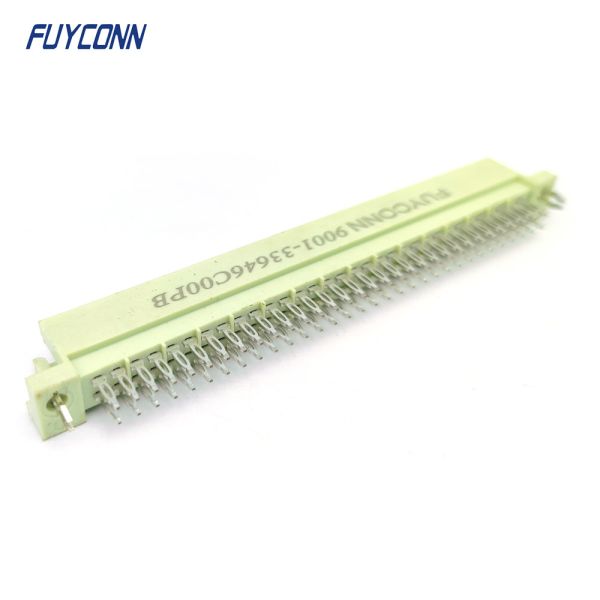

DIN41612 2 Rows Connector 64 pin 2*32P Male Press Pin Connector W/ Harpoon
DIN41612 2 Rows Connector 64 pin 2*32P Male Press Pin Connector W/ Harpoon
DIN41612 2 Rows Connector 64 pin 2*32P Male Press Pin Connector W/ Harpoon
DIN41612 2 Rows Connector 64 pin 2*32P Male Press Pin Connector W/ Harpoon
DIN41612 2 Rows Connector 64 pin 2*32P Male Press Pin Connector W/ Harpoon
DIN41612 2 Rows Connector 64 pin 2*32P Male Press Pin Connector W/ Harpoon
DIN41612 2 Rows Connector 64 pin 2*32P Male Press Pin Connector W/ Harpoon
DIN41612 2 Rows Connector 64 pin 2*32P Male Press Pin Connector W/ Harpoon
Specifications
Number of Rows :
2 rows
Product Line :
Eurocard Connector
Number of Terminal :
64pin
Brand Name :
FUYCONN
Model Number :
FUYDIN086-64PL1
Place of Origin :
China
MOQ :
10
Price :
USD0.5-USD2
Supply Ability :
100000000/month
Delivery Time :
1-4 weeks
Packaging Details :
Tray + Carton
Terminals Type :
Press Pin / Solderless
Contact Plating :
Gold plating(1u",3u",5u",10u",15u")
Connector Type :
PCB Type
PCB Mount :
Harpoon
Pitch :
2.54mm / 5.08mm
Payment Terms :
T/T,Paypal
Gender :
Male
Product Category :
DIN41612 Connector
Insulator Color & Material :
Grey & PBT
Contact pin Material :
Phosphor Bronze
Description
DIN41612 2 Rows Connector 64 pin 2*32P Male Press Pin Connector W/ Harpoon
PCB 2*32P 64P Backplane DIN41612 Connectors

2 Rows Press-fit 64pin Eurocard Solderless DIN 41612 Connector with Harpoon

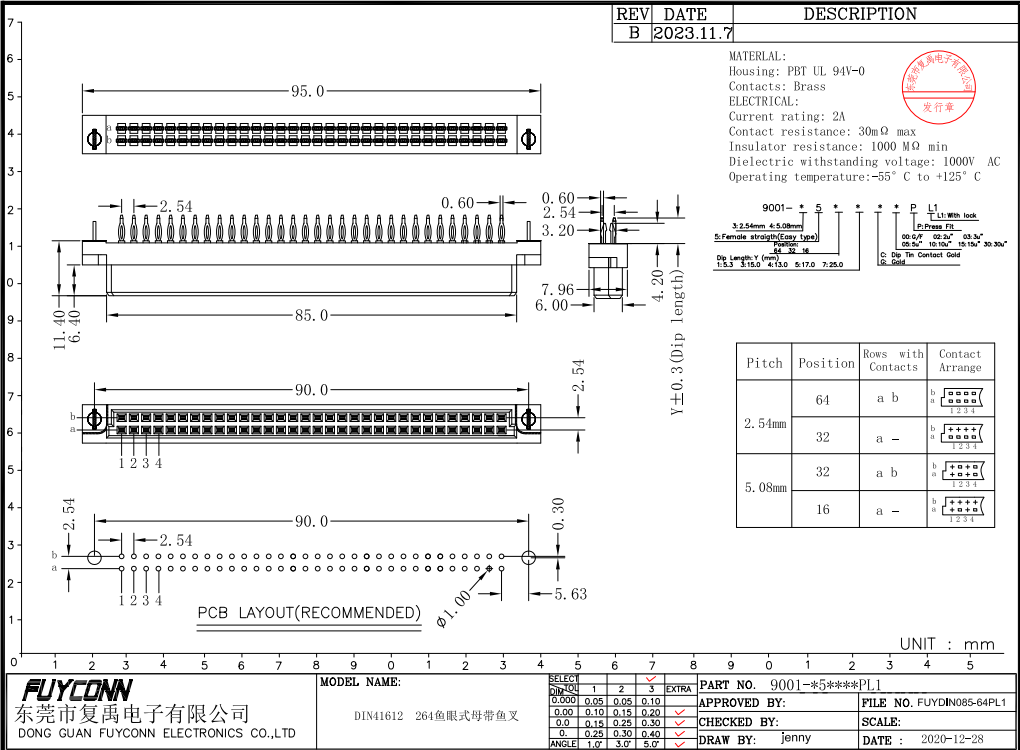

Catalog: DIN41612 CONNECTOR.pdf

Product Overview

DIN 41612 is a standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems where components from different suppliers need to operate together. The most widely known application of DIN 41612 connectors is in the VMEbus system.

DIN 41612 connectors have been widely accepted as a standard for various interconnection applications in telecommunications and data markets worldwide. These connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in wire-wrap or solder tail type terminations. Available pin configurations include 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin, and 96pin.

Product Specifications
1. Product Line: DIN41612 Connector
2. Product Name: Eurocard connector
3. Connector Type: PCB DIN 41612 Connector
4. Connector Gender: Male
5. Number of Position: 64pin
6. Number of rows: 2 rows
7. Contact Material: Brass
8. Contact Plating: 1U", 3U", 5U", 10U", 15U", 30U"
9. Insulation Material: PBT
10. Color: Gray
11. Terminal Type: Press Pin / Solderless
12. Pitch: 2.54mm / 5.08mm
Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN. (at 500V DC)
4. Operation Temperature: -55°C to +105°C
DIN41612 2 Rows Connector 64 pin 2*32P Male Press Pin Connector W/ Harpoon
Application & Compatibility

The Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance.

With a broad portfolio, it's easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.

DIN 41612 was a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of the connectors is essential for open systems where users expect components from different suppliers to operate together. The standard has been withdrawn in favor of international standards IEC 60603-2 and EN 60603-2.
