Specifications
Terminals Type :
Straight / Vertical
Brand Name :
FUYCONN
Model Number :
FUYDIN308-215S
Place of Origin :
China
MOQ :
10
Price :
USD0.6-USD2
Supply Ability :
100000000/month
Delivery Time :
1-4 weeks
Packaging Details :
Tray + Carton
Pitch :
5.08mm
Gender :
Female
Number of Rows :
2 rows
Insulator Color & Material :
Grey & PBT
Contact pin Material :
Phosphor Bronze
Payment Terms :
T/T,Paypal
Connector Type :
PCB Type
Product Line :
Power Connector
Number of Terminal :
7P+8P 15pin
Product Category :
DIN41612 Connector
Contact Plating :
Gold plating(1u",3u",5u",10u",15u")
Description

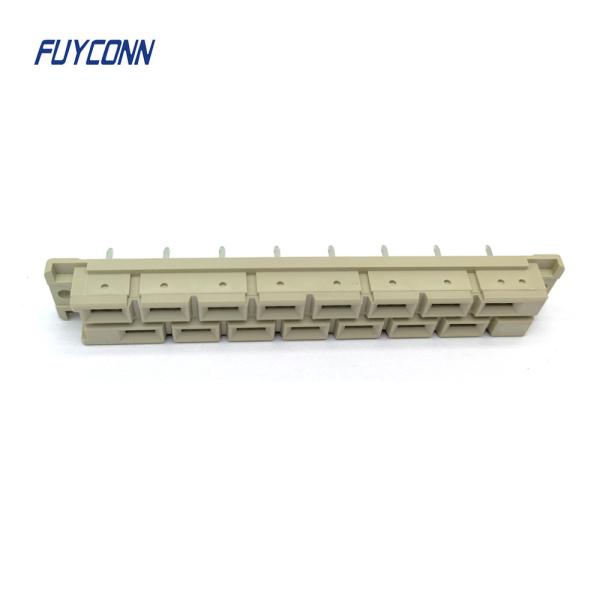

15Pin 5.08mm DIN41612 Connector - PCB Straight Female 7+8 15P Power Type
Product Overview

2 rows 15P Female Power Type DIN41612 Connector, PCB Vertical Female 2 rows 7+8 P 15Pin 5.08mm DIN 41612 Connector

Download Product Catalog: DIN41612 CONNECTOR.pdf

DIN 41612 is a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems where components from different suppliers need to operate together. The most widely known application of DIN 41612 connectors is in the VME bus system.

The DIN 41612 standard has been widely accepted for various interconnection applications in telecommunications and data markets worldwide. DIN connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in wire-wrap or solder tail type terminations. Available pin configurations include 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin, and 96pin.

Product Specifications
Feature Specification
Product Line DIN41612 Connector
Product Name Power DIN 41612 Connector
Connector Type Power Connector
Connector Gender Female
Number of Positions 7P+8P 15pin
Number of Rows 2 rows
Contact Material Brass
Contact Plating 1U", 3U", 5U", 10U", 15U", 30U"
Insulation Material PBT
Color Gray
Terminal Type Straight
Pitch 5.08mm
Electrical Specifications
Parameter Specification
Current Rating 5.6Amp
Voltage Rating DC 1000v per minute
Insulator Resistance 1000Mn MIN. (at 500V DC)
Operation Temperature -55°C to +105°C

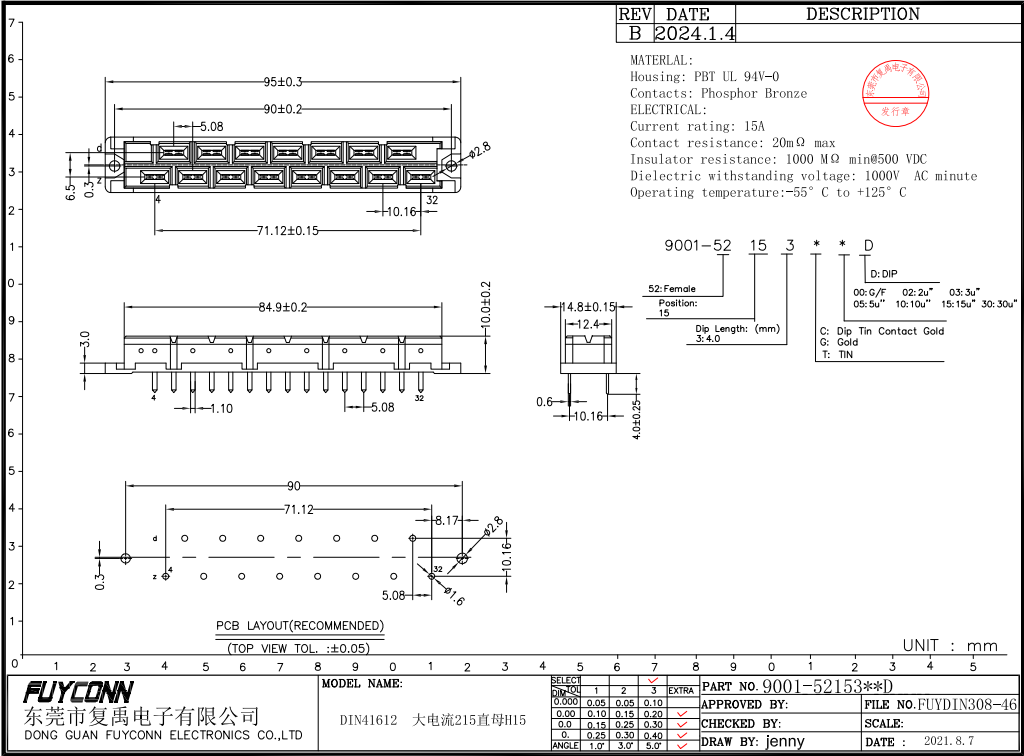

15Pin 5.08mm Connector PCB Straight Female 7+8 15P Power DIN41612 Connector Supplier
Application & Compatibility

Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance.

With a broad portfolio, it's easy to find the right connector type and style to fit your application. Common Bus Systems include:

  • STE Bus
  • CIMBUS
  • FUTUREBUS
  • VMEBus
  • MULTIBUS (II)
  • NUBUS
  • VXi Bus
  • VME 64X
