Replace Harting P/N 09 02 164 2921 B064MS-3, DIN Signal Type B Male Solder Angled 64-Pole
Replace Harting P/N 09 02 164 2921 B064MS-3, DIN Signal Type B Male Solder Angled 64-Pole
Replace Harting P/N 09 02 164 2921 B064MS-3, DIN Signal Type B Male Solder Angled 64-Pole
Replace Harting P/N 09 02 164 2921 B064MS-3, DIN Signal Type B Male Solder Angled 64-Pole
Replace Harting P/N 09 02 164 2921 B064MS-3, DIN Signal Type B Male Solder Angled 64-Pole
Replace Harting P/N 09 02 164 2921 B064MS-3, DIN Signal Type B Male Solder Angled 64-Pole
Replace Harting P/N 09 02 164 2921 B064MS-3, DIN Signal Type B Male Solder Angled 64-Pole
Replace Harting P/N 09 02 164 2921 B064MS-3, DIN Signal Type B Male Solder Angled 64-Pole

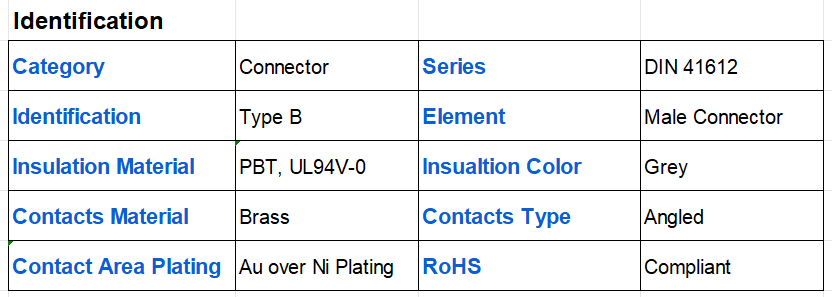

Specifications
Place of Origin :
China
Price :
USD0.6-USD2
Number of Terminal :
64pin
Contact pin Material :
Phosphor Bronze
Packaging Details :
Tray + Carton
Gender :
Male
Pitch :
2.54mm
Number of Rows :
2 rows
Product Line :
Euro Connector
Supply Ability :
100000000/month
Payment Terms :
T/T,Paypal
Model Number :
FUYDIN089-64DB
Connector Type :
PCB Type
MOQ :
10
Delivery Time :
1-4 weeks
Insulator Color & Material :
Grey & PBT
Contact Plating :
Gold plating(1u",3u",5u",10u",15u")
Product Category :
DIN41612 Connector
Terminals Type :
Right Angle
Brand Name :
FUYCONN
Description
Replace Harting P/N 09 02 164 2921 B064MS-3, DIN Signal Type B Male Solder Angled 64-Pole
Product Overview

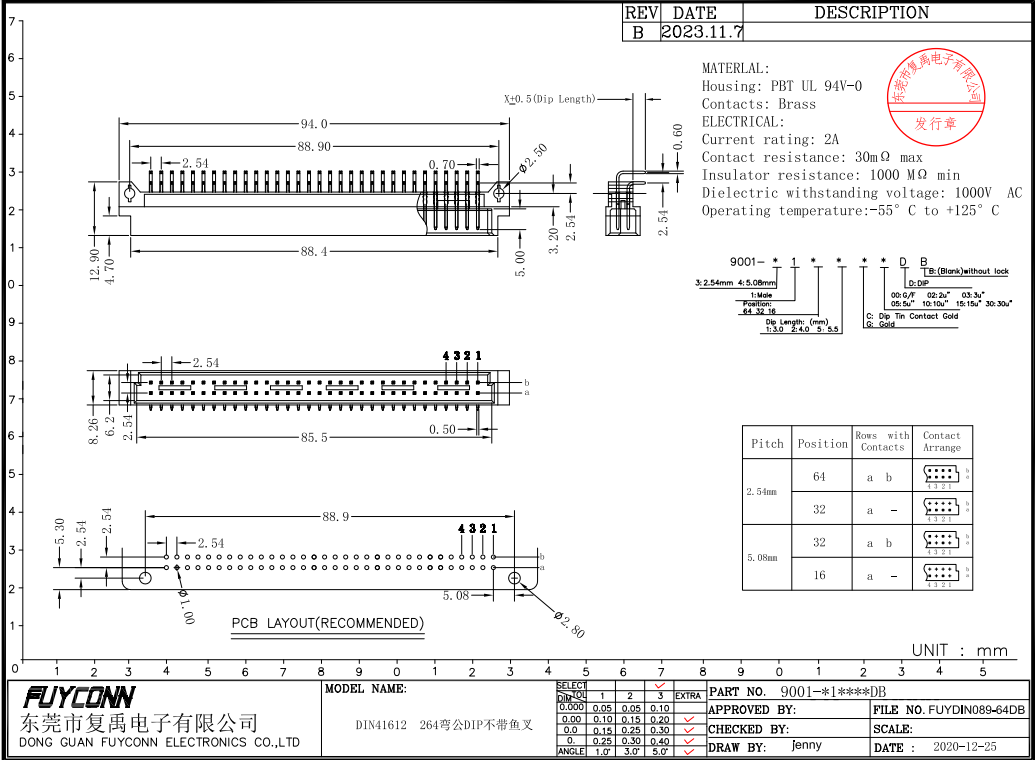

B Type 2.54mm pitch right-angle PCB connector with 2 rows and 64 pins. This DIN41612 male PCB right angle connector (2×32 configuration) is designed for PCB board applications and serves as a direct replacement for Harting P/N 09 02 164 2921 B064MS-3.

DIN 41612 Standard

DIN 41612 is a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems where components from different suppliers must operate together seamlessly.

Key Features
  • 64-pin configuration in 2×32 arrangement
  • 2.54mm pitch spacing
  • Right-angle PCB mounting
  • Male connector type
  • DIN 41612 B Type specification
  • Solder termination
  • Compatible with Eurocard systems
Applications

The most widely known use of DIN 41612 connectors is in the VMEbus system. These connectors have been widely accepted as a standard for various interconnection applications in telecommunications and data markets worldwide.

Available Configurations

DIN connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in various pin counts including 5, 10, 15, 20, 30, 32, 48, 64, and 96 pins with wire-wrap or solder tail type terminations.

Product Images
Replace Harting P/N 09 02 164 2921 B064MS-3, DIN Signal Type B Male Solder Angled 64-Pole
Replace Harting P/N 09 02 164 2921 B064MS-3, DIN Signal Type B Male Solder Angled 64-Pole
Replace Harting P/N 09 02 164 2921 B064MS-3, DIN Signal Type B Male Solder Angled 64-Pole
Replace Harting P/N 09 02 164 2921 B064MS-3, DIN Signal Type B Male Solder Angled 64-Pole
Replace Harting P/N 09 02 164 2921 B064MS-3, DIN Signal Type B Male Solder Angled 64-Pole
Eurocard Compatibility

Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance.

Common Bus Systems: STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X
Available Formats

Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors to meet diverse application requirements.
