DIN 41612 Type B Male Solder Angled w. Clip 64-Pole, Replace Harting P/N 09 02 364 6921
DIN 41612 Type B Male Solder Angled w. Clip 64-Pole, Replace Harting P/N 09 02 364 6921
DIN 41612 Type B Male Solder Angled w. Clip 64-Pole, Replace Harting P/N 09 02 364 6921
DIN 41612 Type B Male Solder Angled w. Clip 64-Pole, Replace Harting P/N 09 02 364 6921
DIN 41612 Type B Male Solder Angled w. Clip 64-Pole, Replace Harting P/N 09 02 364 6921
DIN 41612 Type B Male Solder Angled w. Clip 64-Pole, Replace Harting P/N 09 02 364 6921
DIN 41612 Type B Male Solder Angled w. Clip 64-Pole, Replace Harting P/N 09 02 364 6921
DIN 41612 Type B Male Solder Angled w. Clip 64-Pole, Replace Harting P/N 09 02 364 6921
Specifications
Connector Type :
PCB Type
Contact pin Material :
Phosphor Bronze
Gender :
Male
Model Number :
FUYDIN089-64DL1
Payment Terms :
T/T, Paypal
Product Category :
DIN41612 Connector
Terminals Type :
Right Angle
Packaging Details :
Tray + Carton
Number of Rows :
2 rows
Brand Name :
FUYCONN
MOQ :
10
Place of Origin :
China
Product Line :
Euro Connector
Delivery Time :
1-4 weeks
Number of Terminal :
64pin
Price :
USD0.6-USD2
Insulator Color & Material :
Grey & PBT
Pitch :
2.54mm
Supply Ability :
100000000/month
Contact Plating :
Gold plating(1u",3u",5u",10u",15u")
Description
DIN 41612 Type B Male Solder Angled w. Clip 64-Pole
Product Overview

B Type 2.54mm pitch R/A PCB 2 rows 64Pin DIN41612 Connector, Male PCB Right Angle 2×32 64 pin 41612 Euro connector for PCB Board. Replace Harting P/N 09 02 364 6921.

Product Description

DIN 41612 is a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems, where users expect components from different suppliers to operate together.

The DIN 41612 connector has been widely accepted as a standard for various interconnection applications in telecommunications and data markets worldwide. The most well-known use of DIN 41612 connectors is in the VMEbus system.

Key Features
  • Type B configuration with 2 rows of contacts
  • 64-pin right angle solder termination
  • 2.54mm pitch spacing
  • Includes retention clip for secure mounting
  • Compatible with Harting P/N 09 02 364 6921
  • Designed for PCB board applications

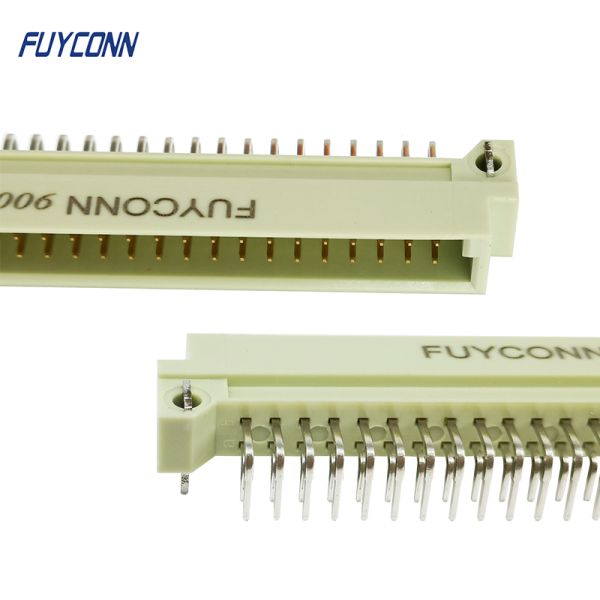

Product Images
DIN 41612 Type B Male Solder Angled w. Clip 64-Pole, Replace Harting P/N 09 02 364 6921 DIN 41612 Type B Male Solder Angled w. Clip 64-Pole, Replace Harting P/N 09 02 364 6921 DIN 41612 Type B Male Solder Angled w. Clip 64-Pole, Replace Harting P/N 09 02 364 6921 DIN 41612 Type B Male Solder Angled w. Clip 64-Pole, Replace Harting P/N 09 02 364 6921 DIN 41612 Type B Male Solder Angled w. Clip 64-Pole, Replace Harting P/N 09 02 364 6921

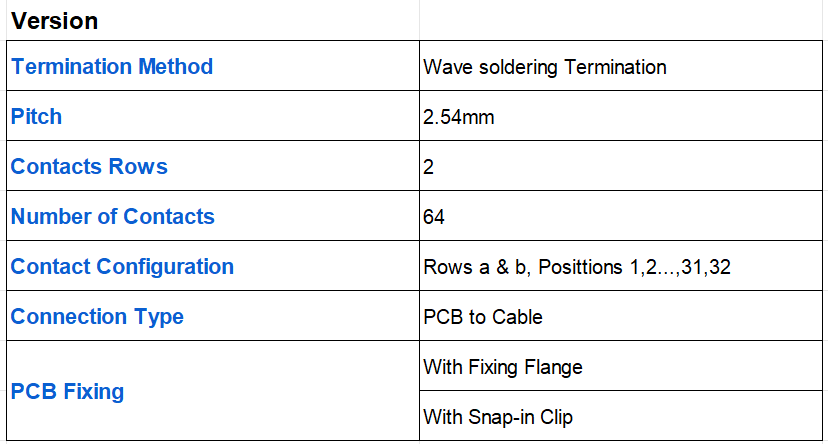

Technical Specifications
Parameter Specification
Connector Type DIN 41612 Type B Male
Number of Pins 64 (2×32 configuration)
Pitch 2.54mm
Mounting Right Angle PCB Solder
Retention Clip included
Compatible Part Harting 09 02 364 6921
Applications & Compatibility

Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance.

Common Bus Systems include: STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.

Available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. With a broad portfolio, it's easy to find the right connector type and style to fit your application requirements.
