Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole

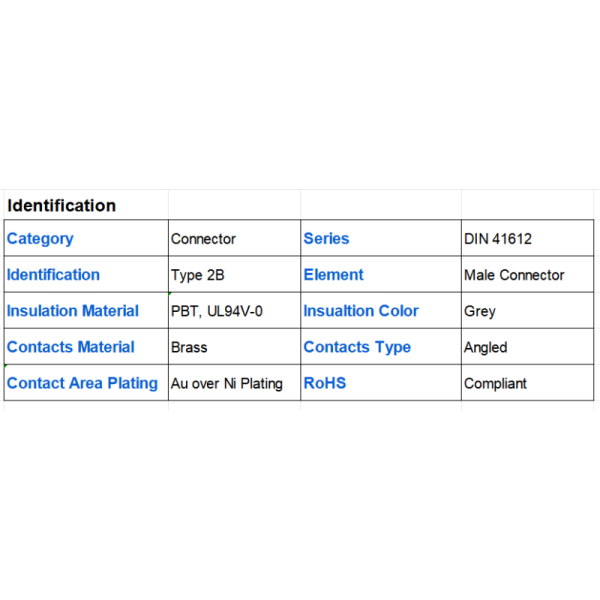

Specifications
Insulator Color & Material :
Grey & PBT
Contact pin Material :
Phosphor Bronze
Payment Terms :
T/T,Paypal
Connector Type :
PCB Type
Number of Rows :
3 rows
MOQ :
10
Delivery Time :
1-4 weeks
Terminals Type :
Right Angle
Place of Origin :
China
Product Category :
DIN41612 Connector
Contact Plating :
Gold plating(1u",3u",5u",10u",15u")
Product Line :
Euro Connector
Brand Name :
FUYCONN
Price :
USD0.6-USD2
Number of Terminal :
2*16pin 32pin
Pitch :
2.54mm
Supply Ability :
100000000/month
Gender :
Male
Packaging Details :
Tray + Carton
Model Number :
FUYDIN089-32DB
Description
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Product Overview

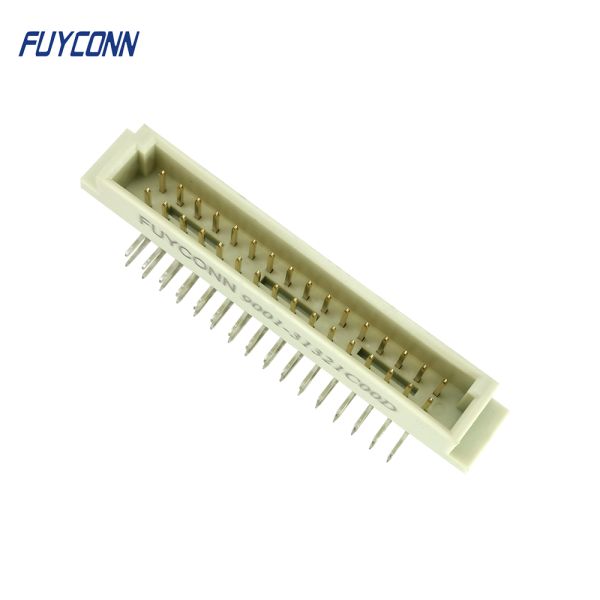

2B Type 2.54mm pitch 2 rows 32P Right Angle PCB DIN41612 Connector, 2*16 32 pin Male R/A PCB Euro 41612 connector

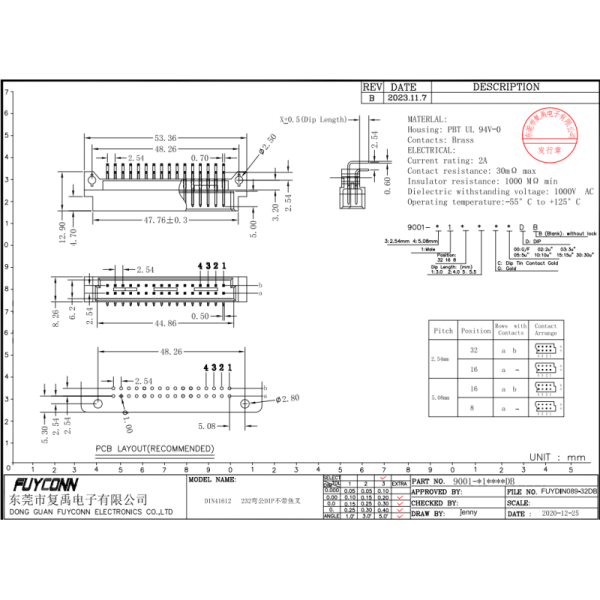

Download DIN 41612 Specification PDF
DIN 41612 Standard

DIN 41612 is a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems, where users expect components from different suppliers to operate together seamlessly.

The most widely known application of DIN 41612 connectors is in the VMEbus system. These connectors have been widely accepted as a standard for various interconnection applications in telecommunications and data markets worldwide.

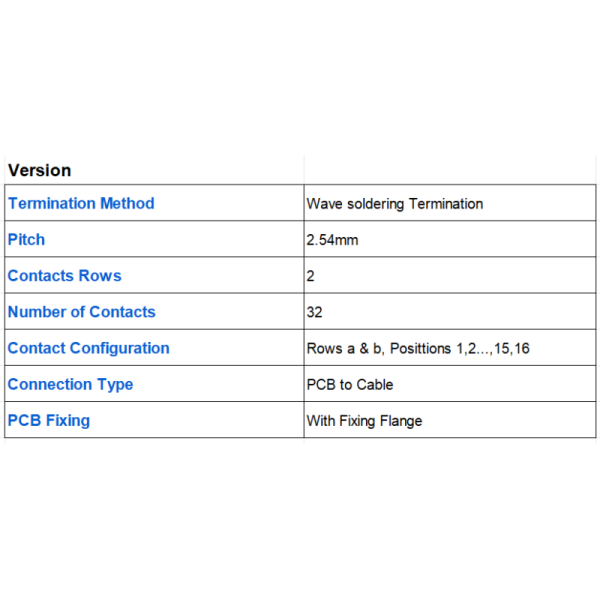

Technical Specifications
  • Type: 2B DIN 41612 Connector
  • Pitch: 2.54mm
  • Configuration: 2 rows, 32 poles
  • Orientation: Right angle PCB mount
  • Gender: Male
  • Termination: Solder type
  • Available pin configurations: 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin, and 96pin
Product Images
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole
Applications & Compatibility

Our Eurocard connector line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current configurations. These connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors, providing high Signal Integrity (SI) and superior electrical performance.

With our comprehensive portfolio, you can easily find the right connector type and style for your specific application requirements.

Compatible Bus Systems
  • STE Bus
  • CIMBUS
  • FUTUREBUS
  • VMEBus
  • MULTIBUS (II)
  • NUBUS
  • VXi Bus
  • VME 64X
