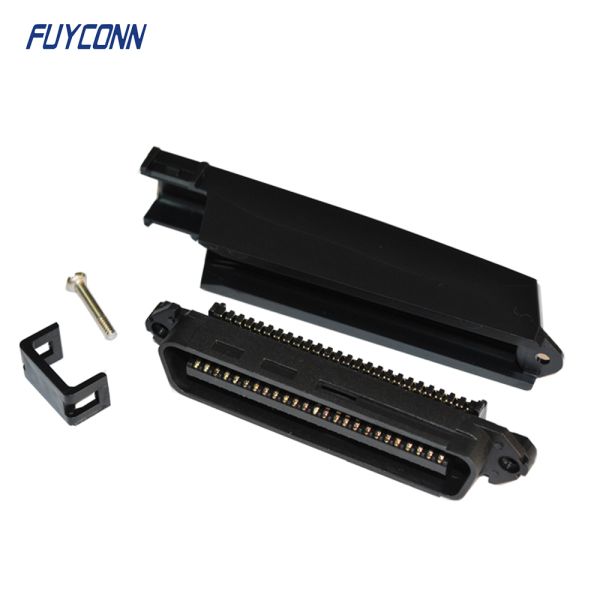

Replace TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch
Replace TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch
Replace TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch
Replace TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch
Replace TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch
Replace TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch
Replace TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch
Replace TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch
Replace TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch
Replace TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch
Specifications
Number Of Terminal :
50 Pin
Replacement :
TE 5229912-1
Brand Name :
FUYCONN
Model Number :
FUY57151A
Certification :
UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Supply Ability :
1 million/ month
Delivery Time :
7-10 days
Packaging Details :
Vacuum Tray + Carton
Connector Style :
Plug
Type :
Centronic IDC Connector
Product Name :
50 Pin Centronics Connector
Product Line :
Champ Connector
Gender :
Male
Insulator Material :
PPO
Pitch :
2.16mm
Payment Terms :
T/T,Western Union or Paypal
Description
TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch
Product Overview

IDC D-sub CHAMP docking plug connector kit designed for cable-to-cable applications with Insulation Displacement Crimp (IDC) mass termination. Features a centerline pitch of 2.16 mm and is used for signal circuit applications.

D-Shaped connectors provide reliable electrical connections in metal shells manufactured in a "D" shape. These compact pin and socket connectors are engineered to transmit power and signal in communications equipment, particularly in high-density packages. Commonly used for connecting computer monitors to personal computers and peripheral devices.

Replace TE 5229912-1 Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch
Key Features
  • Number of Positions: 50 pin
  • Connector & Housing Type: Plug
  • Connector System: Cable-to-Board | Cable-to-Cable | Cable-to-Panel
  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Centerline (Pitch): 2.16 mm [.085 in]
Technical Specifications
Product Type
Connector Kit
Termination Method
Insulation Displacement (IDC)
Contact Material
Copper Alloy | Phosphor Bronze
Contact Plating
Gold (Au) | Gold Flash, 30 µin
Housing Material
Polyphenylene Oxide | Thermoplastic
Primary Color
Black
Compatibility & Dimensions
Wire Size (AWG)
24 | 26 | 26-24 | 27 | 28
Insulation Diameter
Max 1.14 mm [.045 in]
Cable Diameter (Max)
10.8-15.88 mm [.425-.625 in]
Number of Rows
2
Cable Exit Angle
90°
