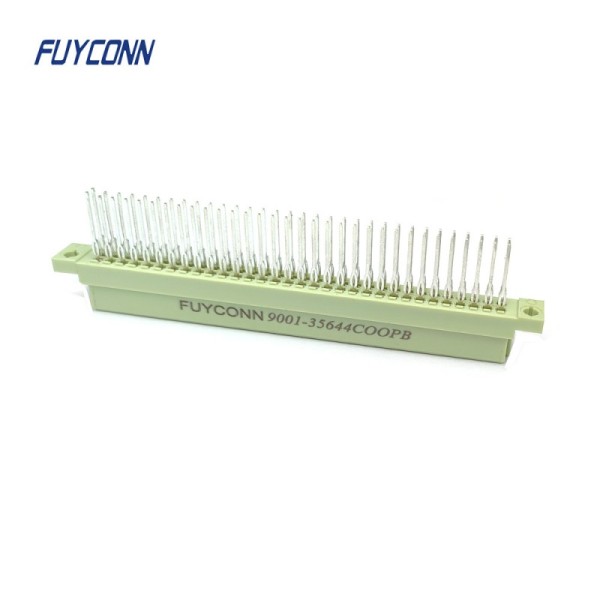

Replace Harting P/N 09 02 264 6861 DIN-Signal B064FPW-13C1-2, DIN Signal Type B Female Press-in 13.0 64-Pole
Replace Harting P/N 09 02 264 6861 DIN-Signal B064FPW-13C1-2, DIN Signal Type B Female Press-in 13.0 64-Pole
Replace Harting P/N 09 02 264 6861 DIN-Signal B064FPW-13C1-2, DIN Signal Type B Female Press-in 13.0 64-Pole
Replace Harting P/N 09 02 264 6861 DIN-Signal B064FPW-13C1-2, DIN Signal Type B Female Press-in 13.0 64-Pole
Replace Harting P/N 09 02 264 6861 DIN-Signal B064FPW-13C1-2, DIN Signal Type B Female Press-in 13.0 64-Pole
Replace Harting P/N 09 02 264 6861 DIN-Signal B064FPW-13C1-2, DIN Signal Type B Female Press-in 13.0 64-Pole
Replace Harting P/N 09 02 264 6861 DIN-Signal B064FPW-13C1-2, DIN Signal Type B Female Press-in 13.0 64-Pole
Replace Harting P/N 09 02 264 6861 DIN-Signal B064FPW-13C1-2, DIN Signal Type B Female Press-in 13.0 64-Pole

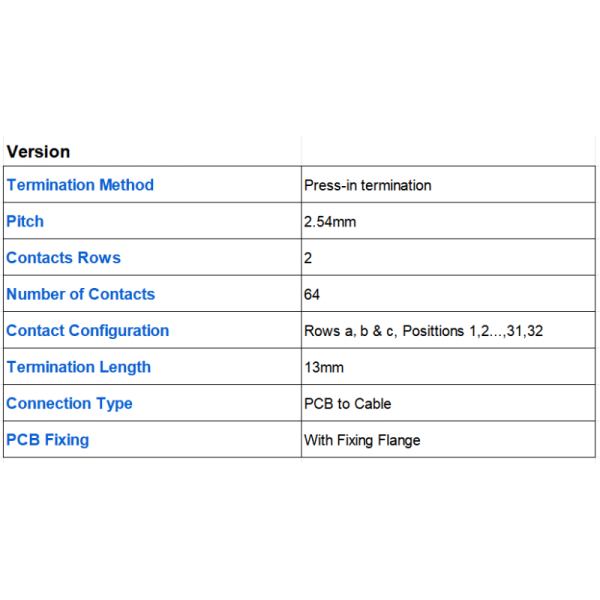

Specifications
Brand Name :
FUYCONN
Model Number :
FUYDIN085-64PB (13mm)
Certification :
UL 94-V0, ROHS-certified ISO 9001:2008, ISO 14001:2004
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T or Paypal
Supply Ability :
1 million/ month
Delivery Time :
7-10 days
Packaging Details :
Vacuum Tray + Carton
connector name :
eurocard connector
connector line :
din41612 connector
gender :
female receptacle
pitch :
2.54mm pitch
no. of pin :
2*32P 64pin
connector type :
PCB Straight connector
No. of Rows :
2 Rows
Contacts Type :
Press-Fit
Description

2 rows 64 pin Vertical PCB Female DIN41612 Connector, Straight pcb 2*32pin 64pin Euro 41612 connector with Easy Type Terminals

2 rows 64 Pin Female Eurocard Connector B Type Straight Terminals DIN 41612 Connector

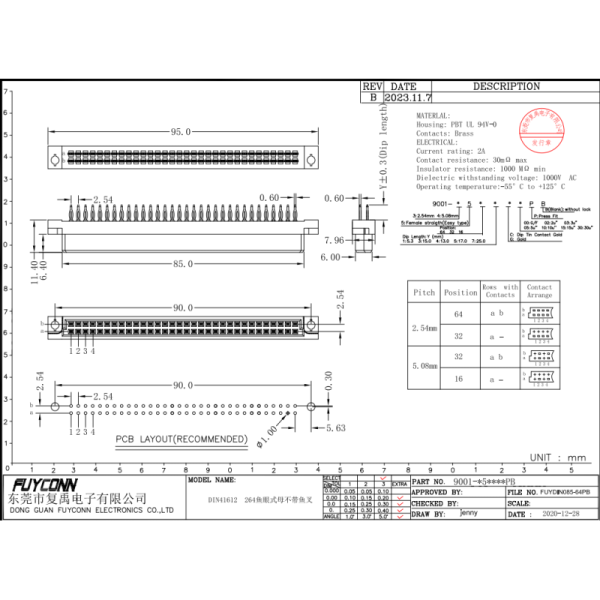

DIN 41612.pdf

DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together.

The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. 96 pin DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations.

Replace Harting P/N 09 02 264 6861 DIN-Signal B064FPW-13C1-2, DIN Signal Type B Female Press-in 13.0 64-PoleReplace Harting P/N 09 02 264 6861 DIN-Signal B064FPW-13C1-2, DIN Signal Type B Female Press-in 13.0 64-Pole

Replace Harting P/N 09 02 264 6861 DIN-Signal B064FPW-13C1-2, DIN Signal Type B Female Press-in 13.0 64-Pole

Replace Harting P/N 09 02 264 6861 DIN-Signal B064FPW-13C1-2, DIN Signal Type B Female Press-in 13.0 64-Pole

Replace Harting P/N 09 02 264 6861 DIN-Signal B064FPW-13C1-2, DIN Signal Type B Female Press-in 13.0 64-Pole
