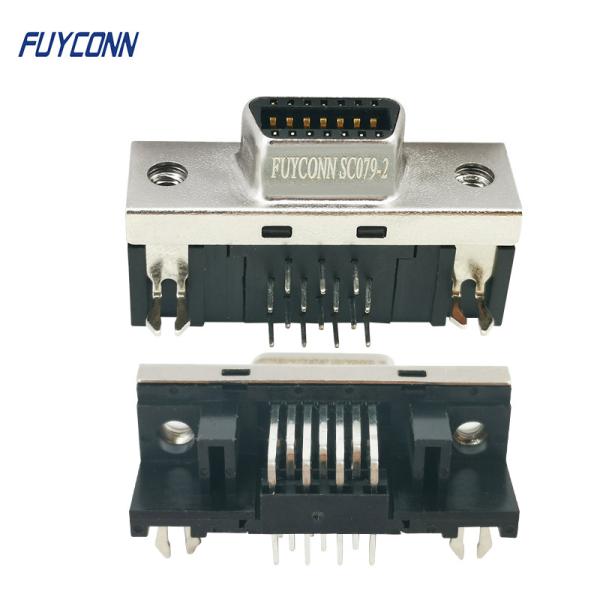

Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin
Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin
Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin
Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin
Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin
Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin
Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin
Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin
Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin
Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin
Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin
Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin
Specifications
Gender :
Female
Brand Name :
FUYCONN
Model Number :
FUYSC079
Place of Origin :
China
MOQ :
100pcs
Price :
USD0.2-USD2/pc
Payment Terms :
T/T,Paypal
Supply Ability :
100000/ week
Delivery Time :
5-8 works day
Packaging Details :
Vacuum Tray + Carton
Shell :
Metal Nickeled
Insulation Color :
Black
No. of Contacts :
14pin 20pin 36pin 50pin 68pin 100Pin
Insulation Material :
PBT
Contact Plating :
Gold plating (1u",3u",5u",10u",15u")
Pitch :
1.27mm
Connector Type :
CN Type
Conatct Material :
Phosphorous Bronze
Product Name :
SCSI PCB Connector
Description
Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin
Product Overview

Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin SCSI Connector

SCSI (Small Computer System Interface) is a specialized interface bus designed to facilitate communication between various types of peripherals. It provides an advanced, high-speed, versatile, and cost-effective method of interconnecting computer peripherals and consumer electronic devices.

Available SCSI connector configurations include 14pin, 20pin, 26pin, 36pin, 50pin, 68pin, and 100pin versions in both PCB and IDC crimping types. The internal 100 pin SCSI connector features 100 pins arranged in two rows with 50 pins in the top row and 50 pins in the lower row.

Technical Specifications
  • Type: SCSI Connector
  • Application: Servo
  • Gender: Female
  • Orientation: Right Angle
  • Insulator Material: PBT
  • Contact Current Rating: 1A AC/DC
  • Contact Resistance: Max 35m ohm
  • Insulator: PBT, glass-filled, UL94V-0 rated
  • Contact: Phosphor bronze
  • Back Shell: Nickel-plated
  • Insulation Resistance: 500MΩ (minimum)
  • Contact Resistance: 35mΩ (maximum)
  • Available Pin Configurations: 20pin, 36pin, 68pin, 100pin
Right Angle SCSI Connector PCB 14pin 20pin 36pin 50pin 68pin 100pin
Electrical Characteristics
Parameter Specification
Current Rating 1AMP
Withstanding Voltage 500V for one minute
Insulation Resistance 500MΩ min (at DC500V)
Contact Resistance 35mΩ Max
Operating Temperature -55°C to +105°C
Product Features
Feature Specification
Pin Configurations 14, 20, 26, 36, 50, 68, 100pin
Shell Steel, Nickel Plated
Housing PBT
Contacts Phosphor bronze
Gold Plating Options 1U", 3U", 5U", 10U", 15U", 30U"
