Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Specifications
Brand Name :
FUYCONN
Model Number :
FUYSC082
Place of Origin :
China
MOQ :
100pcs
Price :
USD0.5-USD2/pc
Payment Terms :
T/T,Paypal
Supply Ability :
100000/ week
Delivery Time :
5-8 works day
Packaging Details :
Vacuum Tray + Carton
Insulation Material :
PBT
Contact Plating :
Gold plating (1u",3u",5u",10u",15u")
Pitch :
1.27mm
Gender :
Female
Shell :
Metal Nickeled
Insulation Color :
Black
No. of Contacts :
14/20/36/50/68/100 pin
Connector Type :
CN Type
Product Name :
SCSI PCB Connector
Conatct Material :
Phosphorous Bronze
Description

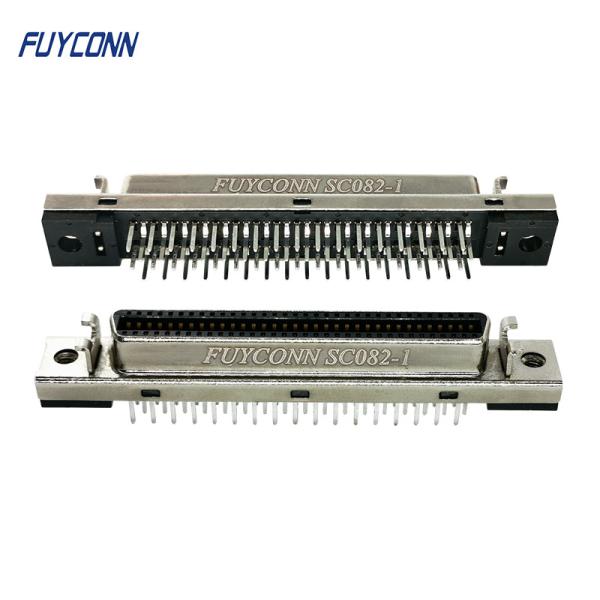

Straight PCB SCSI Female Servo Connector

Straight PCB SCSI Connector Female 14pin 20pin 36pin 50pin 68pin 100pin Servo Connector

SCSI (Small Computer System Interface) is a specialized interface bus designed to communicate with various types of peripherals. It provides an advanced, high-speed, versatile, and cost-effective method of interconnecting computer peripherals and consumer electronic devices.

The SCSI connectors are available in 14pin, 20pin, 26pin, 36pin, 50pin, 68pin, and 100pin configurations, with both PCB and IDC crimping type versions. The internal 100 pin SCSI connector features 100 pins arranged in two rows - 50 pins in the top row and 50 pins in the lower row.

Product Specifications
  • Type: SCSI Connector
  • Application: Servo
  • Gender: Female
  • Orientation: Straight
  • Insulator Material: PBT
  • Contact Current Rating: 1A AC/DC
  • Contact Resistance: Max 35m ohm
  • Insulator: PBT, glass-filled, UL94V-0 rated
  • Contact: Phosphor bronze
  • Back Shell: Nickel-plated
  • Insulation Resistance: 500MΩ (minimum)
  • Contact Resistance: 35mΩ (maximum)
  • Available Pin Configurations: 14pin, 20pin, 26pin, 36pin, 50pin, 68pin, 100pin
Straight PCB SCSI Female Servo Connector 14pin 20pin 36pin 50pin 68pin 100pin
Electrical Characteristics
Parameter Specification
Current Rating 1A
Withstanding Voltage 500V for one minute
Insulation Resistance 500MΩ min (at DC500V)
Contact Resistance 35mΩ Max
Operating Temperature -55°C to +105°C
Product Features
Feature Details
Pin Configurations 14, 20, 26, 36, 50, 68, 100pin
Shell Steel, Nickel Plated
Housing PBT
Contacts Phosphor bronze
Gold Plating Options 1U", 3U", 5U", 10U", 15U", 30U"
