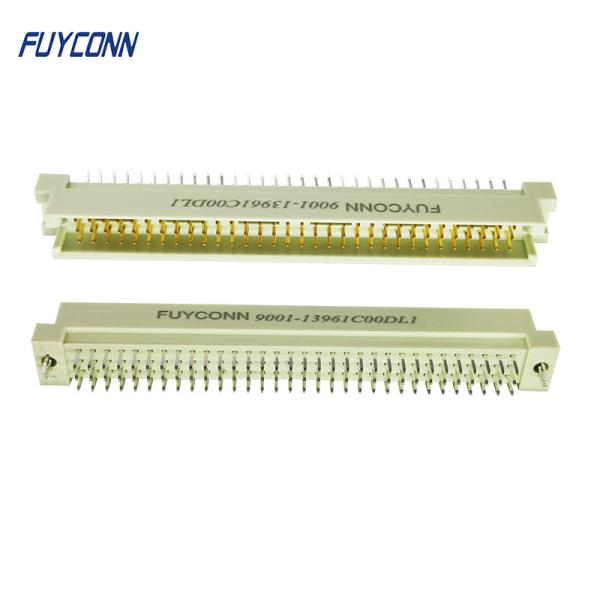

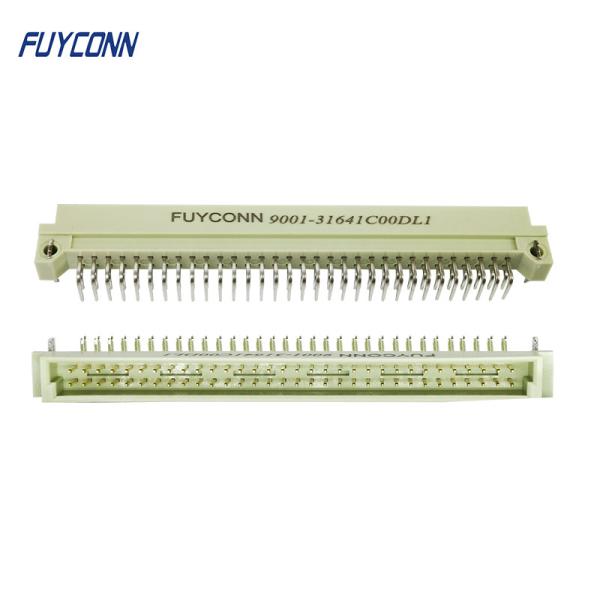

Harpoon DIN41612 Straight Female Connector Vertical 64pin 96pin
Harpoon DIN41612 Straight Female Connector Vertical 64pin 96pin
Harpoon DIN41612 Straight Female Connector Vertical 64pin 96pin
Harpoon DIN41612 Straight Female Connector Vertical 64pin 96pin
Harpoon DIN41612 Straight Female Connector Vertical 64pin 96pin
Harpoon DIN41612 Straight Female Connector Vertical 64pin 96pin
Harpoon DIN41612 Straight Female Connector Vertical 64pin 96pin
Harpoon DIN41612 Straight Female Connector Vertical 64pin 96pin
Harpoon DIN41612 Straight Female Connector Vertical 64pin 96pin
Harpoon DIN41612 Straight Female Connector Vertical 64pin 96pin
Specifications
Brand Name :
FUYCONN
Model Number :
Harpoon DIN41612 Connector
Certification :
UL 94-V0, ROHS-certified ISO 9001:2008, ISO 14001:2004
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T or Paypal
Supply Ability :
1 million/ month
Delivery Time :
7-10 days
Packaging Details :
Vacuum Tray + Carton
Product Category: :
Eurocard Connector
Product Line: :
DIN 41612 Connector
Terminals Type: :
Straight PCB connector
Number of Terminal: :
64pin 96Pin
Pitch: :
2.54mm
Insulator Material: :
PBT
Contact pin Material: :
Phosphor Bronze
Color: :
Gray
PCB Mounting :
Board Lock
Description

R Type Straight PCB 2.54mm Connector, 3rows 3*32pin 96Pin Male DIN41612 Connector w/ Board Lock Vertical Pin Male Euro Connector

Harpoon DIN41612 Connector PCB Vertical 64pin 96pin Male/Female Connector

DIN 41612.pdf

DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.


The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system.DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin and 96pin are available.

Detail Description:

1. Product Line: DIN41612 Connector
2. Product Name: Eurocard connector
3. Connector Type PCB DIN 41612 Connector
4. Connector Gender: Male
5. Number of Position: 5/10/15/20/30/32/48/64/96 pin
6.Number of rows: 3 rows
7. Contact Material: Brass
8. Contact Plating: 1U", 3U", 5U", 10U", 15U",30U"
9. Insulation Material: PBT
10.Color Gray
11. Terminal Type Right Angle
12. Pitch 2.54mm or 5.08mm
13. PCB Mount Board Lock

Electrical Specifications

Current Rating: 2Amp
Voltage rating: AC 1000v for minute
Insulator Resistance: 1000 MΩ min.at DC500V
Contact Resistance: 30mΩ max. at DC 100MA
4. Operation Temperature: -55°C to +105°C

Technology Parameters

Harpoon DIN41612 Straight Female Connector Vertical 64pin 96pin
