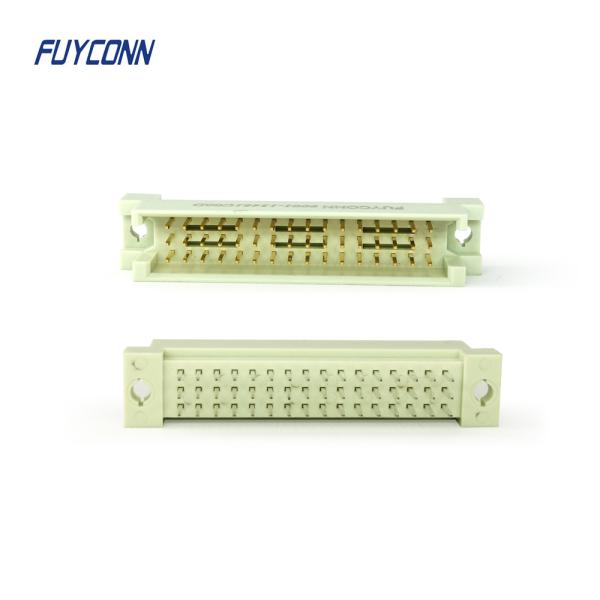

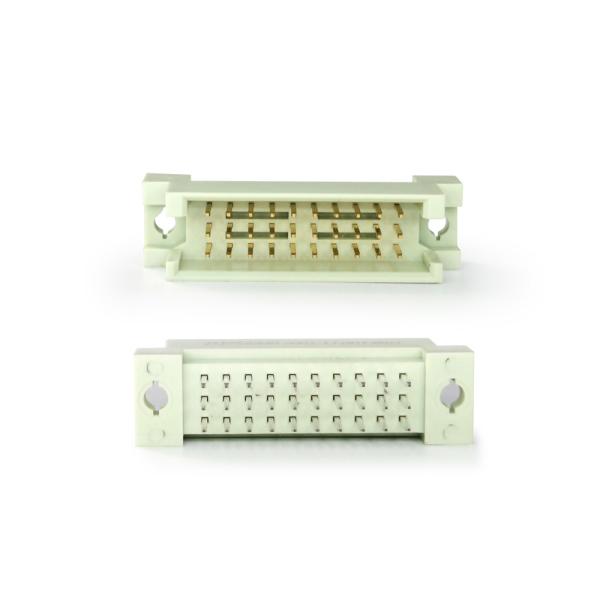

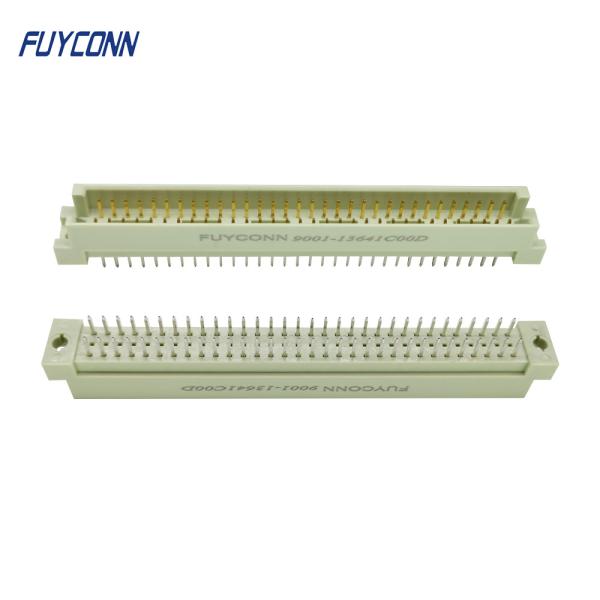

30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard
30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard
30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard
30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard
30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard
30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard
30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard
30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard
30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard
30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard
30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard
30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard
Specifications
Brand Name :
FUYCONN
Model Number :
3rows Vertical Male
Certification :
UL 94-V0, ROHS-certified ISO 9001:2008, ISO 14001:2004
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T or Paypal
Supply Ability :
1 million/ month
Delivery Time :
7-10 days
Packaging Details :
Vacuum Tray + Carton
connector name :
european connectore
gender :
male plug
No. of pin :
30pin 48pin 96pin
connector line :
din41612 connector
insulation color :
grey
connector type :
pcb vertical connector
No. of Rows :
3 Rows
Description

3rows 3*16 32pin 48pin DIN41612 Connector, 2.54mm/5.08mm pitch 48Pin Male Eurocard Straight Terminals connector for PCB Board

3 rows DIN41612 Connector Male Vertical PCB Eurocard Connector 30pin 48pin 96pin

DIN 41612.pdf

DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.

The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. 48 pin DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations.

R Type 3 rows 48P Eurocard DIN 41612 Connector Vertical Male Plug Connector

Detail Description

1. Product Line: DIN41612 Connector
2. Product Name: Eurocard connector
3. Connector Type PCB DIN 41612 Connector
4. Connector Gender: Male
5. Number of Position: 30pin 48pin 96pin
6.Number of rows: 3 rows
7. Contact Material: Brass
8. Contact Plating: 1U", 3U", 5U", 10U", 15U",30U"
9. Insulation Material: PBT
10.Color Gray
11. Terminal Type Vertical / Straight PCB
12. Pitch 2.54mm or 5.08mm

Electrical Specifications

Current Rating: 2Amp
Voltage rating: AC 1000v for minute
Insulator Resistance: 1000 MΩ min.at DC500V
Contact Resistance: 30mΩ max. at DC 100MA
4. Operation Temperature: -55°C to +105°C

Technology Parameters

30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard
